LG UVNH18GJLA2 - PCB Service Order

6. Service Order

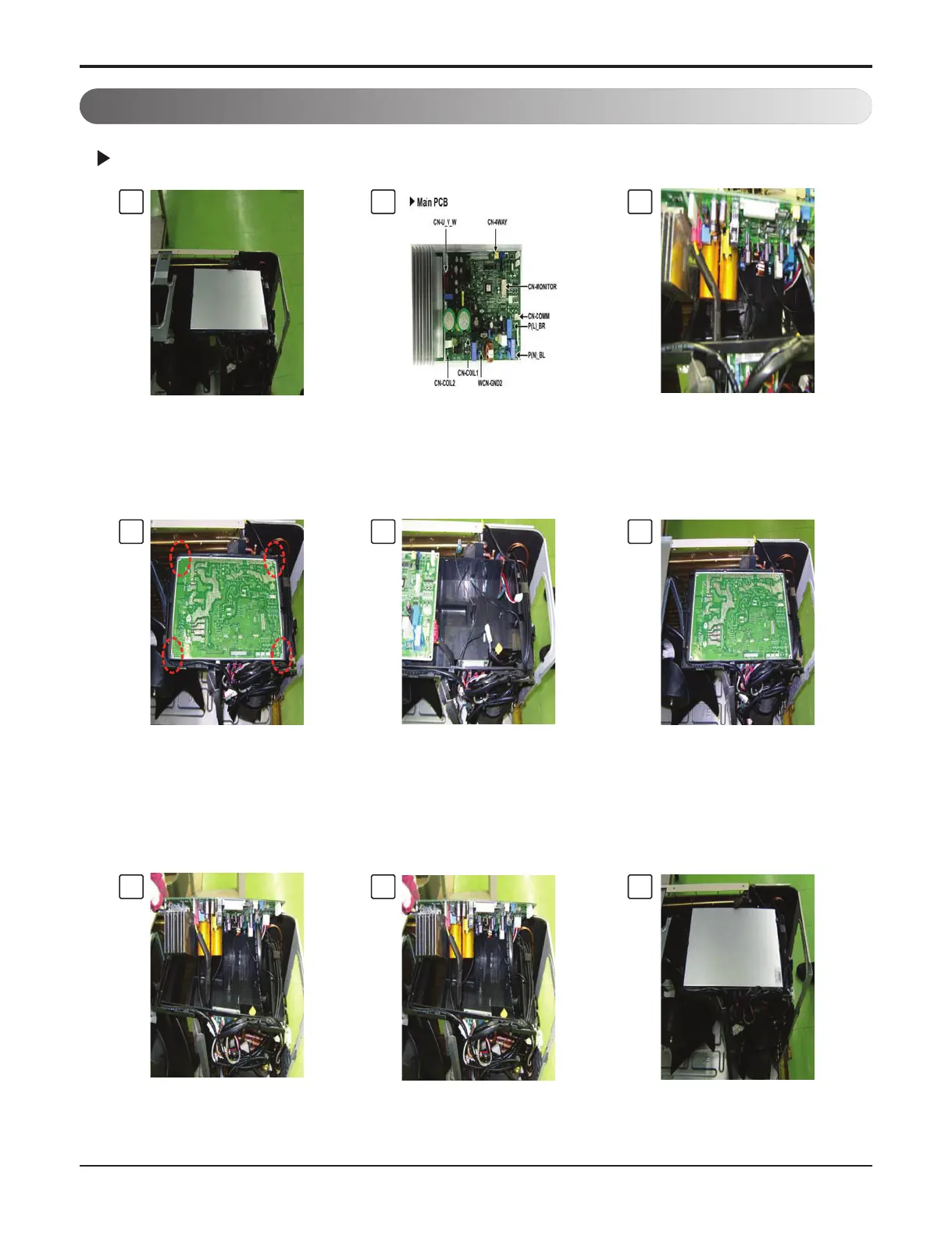

1. PCB Service Order
Remove Top Cover and
Control Box Cover
Remove PCB Screws (4ea)
Raise PCB and
take terminals from PCB
Take Terminals from PCB
with a tool
Replace New PCB
Hang wires up on the Rib
from Case and Insert PCB
into Control Box
Assemble C/Box and Top Cover
into a complete whole
Re-wire terminal
Tighten PCB Screws (4ea)
A2UW14GFA2 / A2UW16GFA2 / A3UW18GFA2 / A3UW21GFA2
1 4 7
2 5 8
3 6 9
