5INSTALLATION
ENGLISH

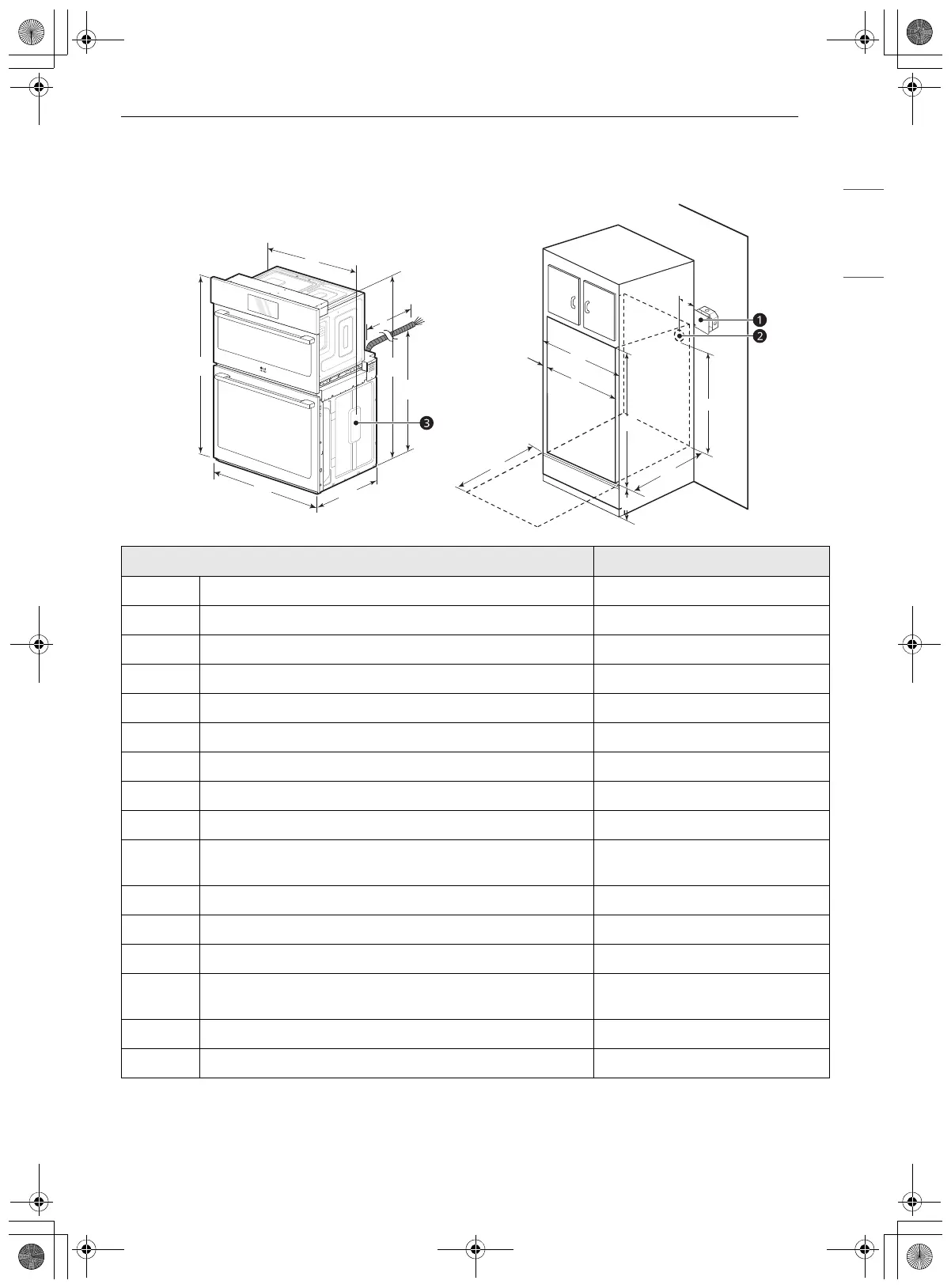

Dimensions and Clearances
Measure the current cutout dimensions and compare them to the cutout dimensions shown below. Little
or no cabinet work may be necessary. The image may differ from the actual model.
List Dimensions
A Height 43 13/16" (111.3 cm)
B Width 29 3/4" (75.5 cm)
C Depth 23 3/8" (59.3 cm)
D Height (standard installation) 43 3/16" (109.7 cm)
E Height (power cord) 25 7/8" (65.6 cm)
F Length (power cord) 60" (152.4 cm)
G Width (standard installation) 28 7/16" (72.2 cm)
H Cabinet width 30" (76.2 cm)
IOverlap of oven 1" (2.5 cm)
JCutout width
28 1/2" Min. (72.4 cm)
28 5/8" Max. (72.7 cm)
K Depth of open door 23" (58.4 cm)
L Cutout location from floor 12" (30.5 cm)
M Cutout depth 24" Min. (61.0 cm)
N Cutout height
43 7/16" Min. (110.3 cm)
43 1/2" Max. (110.5 cm)
O Height of conduit opening from floor of cutout 39 27/32" (101.2 cm)
P Distance of conduit opening from side of cabinet 5" (12.7 cm)
I
L
O
N
P
M
J
H
K
D
E
F
A
B
C
G
