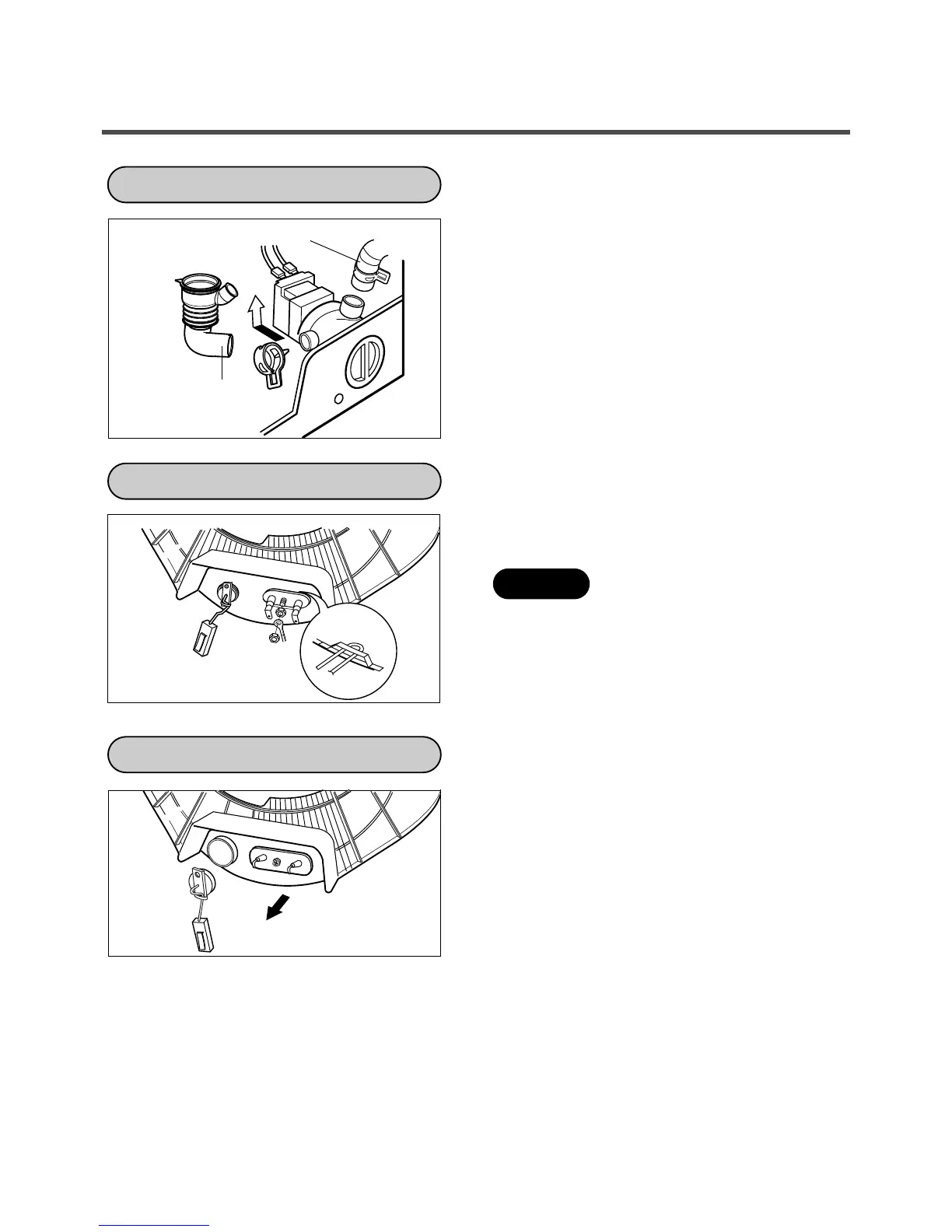

①①
Remove pump outlet hose.
②②
Remove tub pump bellows.
③③
Remove cap (Remaining Hose.)
④④
Disconnect the wiring.
⑤⑤
Unscrew 2 screws.
⑥⑥
Remove the pump.
①①
Loosen the M6 heater nut to pull out the heater.
When mounting the heater, be sure to insert the heater
into the heater clip on the bottom of the tub.
①①
Pull it out by holding the thermistor bracket.
If it is pulled by the wire, it may be broken.
②②
When mounting the thermistor again, make sure that it
is got back tight to the bushing.
PUMP
HEATER
THERMISTOR
CAUTION
To Next Page
