LG WD-12320(5)RD - Inlet Valve; Door; Removing Method of Remained Water

31

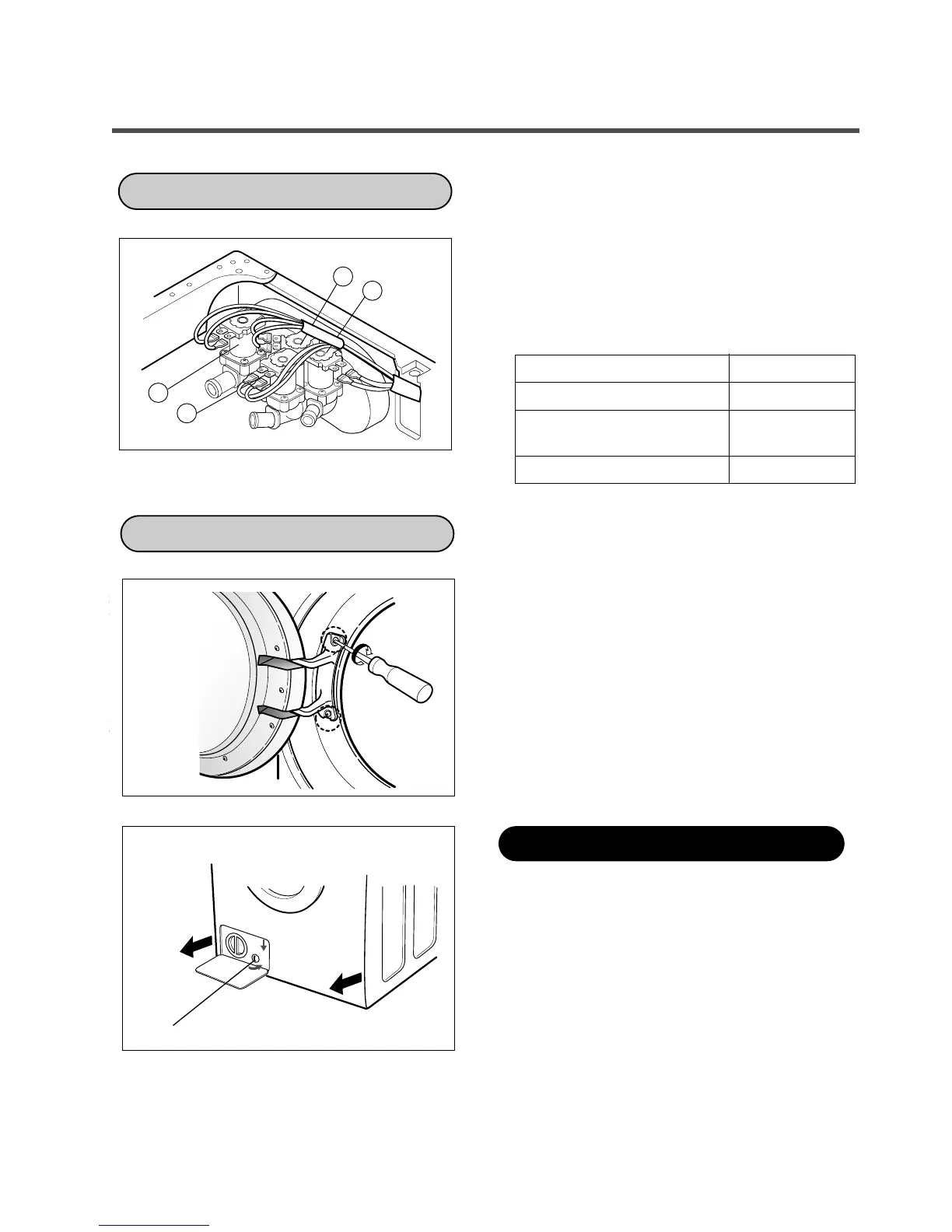

① Disconnect the wiring connector.
② Remove the valve by two screws of the valve
holder.
󳢮When reconnecting the connector
2
1
3
4
INLET VALVE
VALVE 󳡉 (DRY) YL/BK - BK
VALVE 󳡊 (PRE-WASH) GY/WH - BK
VALVE
󳡋 (NORMAL-WASH) WH/BK - BK
VALVE ®È (NORMAL-WASH) BL/RD - BK
VALVE
󳡌
(HOT) BL/RD - BK
① Open the door completely.
② Remove the two screws from the hinge.
※ When removing the Door Assembly, it is
necessary to hold the Bracket that is inner of
the Cabinet Cover.
① Rotate the Cap(Remaining Hose) to arrow
direction.
② Pull it out from hose.
※ First, prepare a bucket to put in the remained
water.
CAP (REMAINING HOSE)
DOOR
Removing method of remained water
