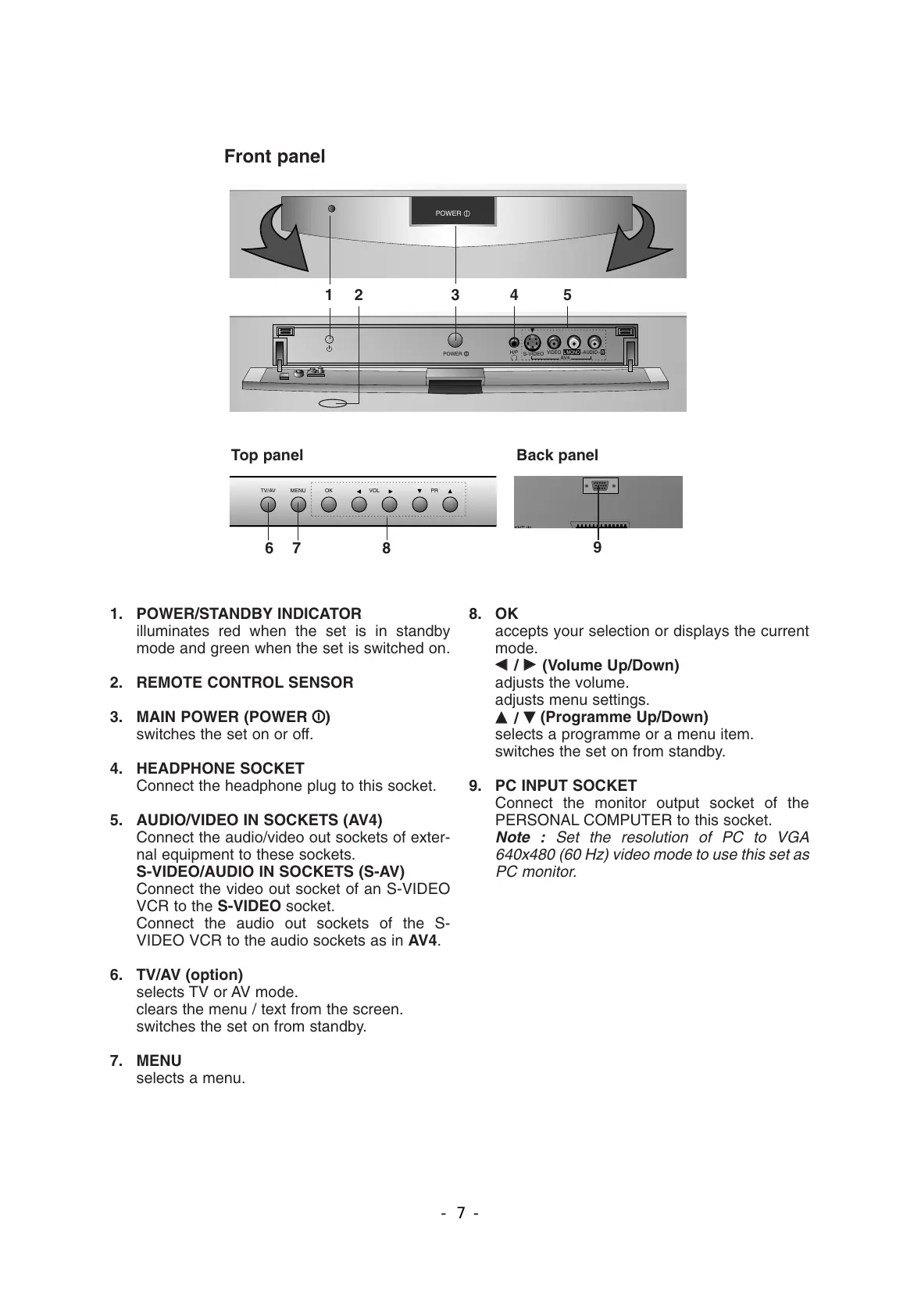

1. POWER/STANDBY INDICATOR
illuminates red when the set is in standby
mode and green when the set is switched on.
2. REMOTE CONTROL SENSOR
3. MAIN POWER (POWER vv)
switches the set on or off.
4. HEADPHONE SOCKET
Connect the headphone plug to this socket.
5. AUDIO/VIDEO IN SOCKETS (AV4)
Connect the audio/video out sockets of exter-
nal equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-
VIDEO VCR to the audio sockets as in AV4.
6. TV/AV (option)
selects TV or AV mode.
clears the menu / text from the screen.
switches the set on from standby.
7. MENU
selects a menu.
8. OK
accepts your selection or displays the current
mode.
FF / GG (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
DD
/
EE
(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
9. PC INPUT SOCKET
Connect the monitor output socket of the
PERSONAL COMPUTER to this socket.
Note : Set the resolution of PC to VGA
640x480 (60 Hz) video mode to use this set as
PC monitor.
