Service Manual of Rough Terrain Mobile Elevating Work Platform

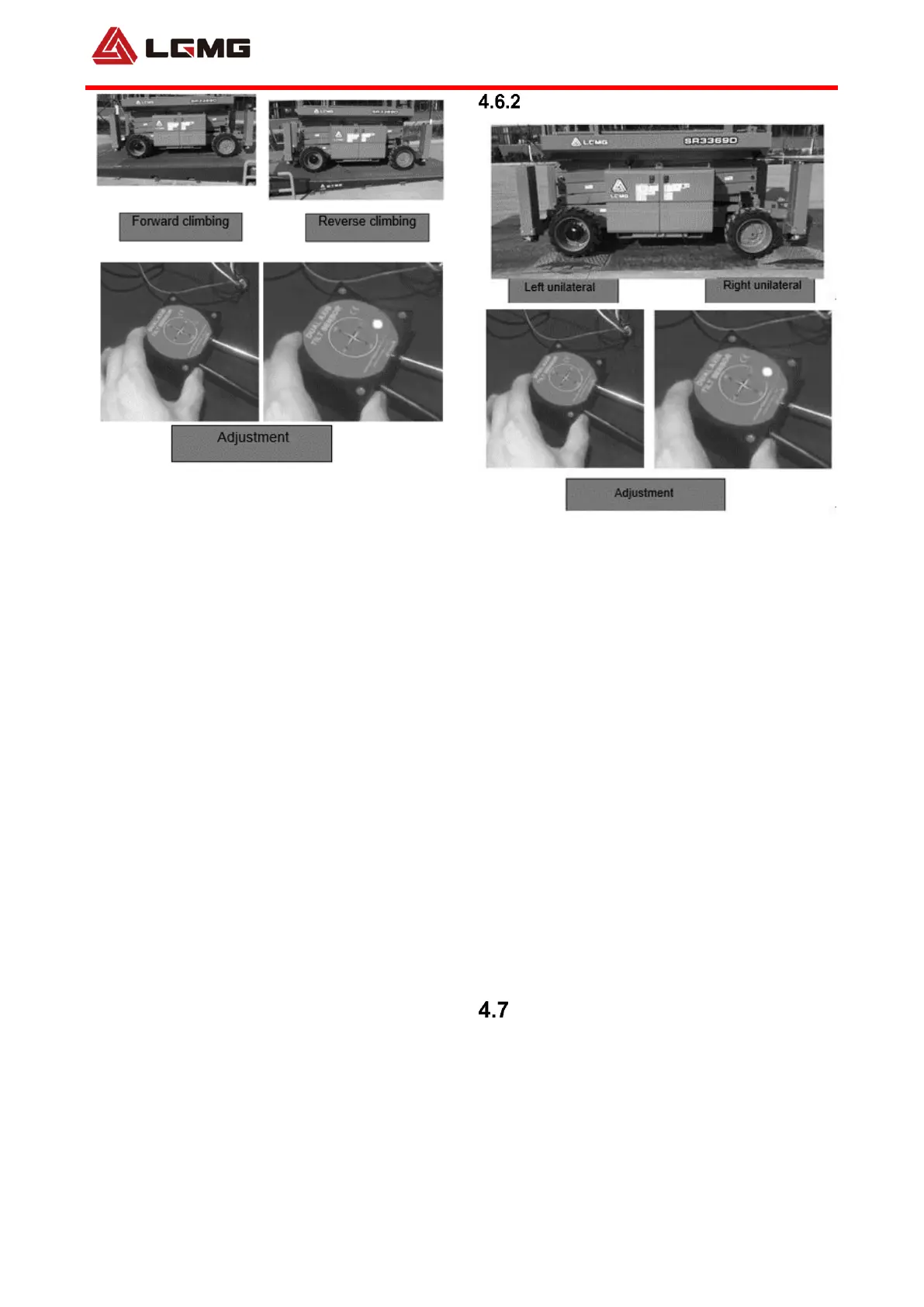

Fig. 4.13 Fore-and-aft 3°

1. Run the machine forwards and backwards to

a 3° slope separately, ensuring the machine is

completely on the slope;

2. Lift the fork, and test if the buzzer sounds. The

inclination is conforming if the buzzer sounds;

otherwise, the chassis inclination switch

needs to be adjusted;

Refer to the calibration test (inclination

calibration) for adjustment method.

Note:

After the adjustment of the inclination switch,

both the fore-and-aft inclination and the left-

and-right inclination need to be tested again;

Left-and-right 2°

Fig. 4.14 Left-and-right 2°

1. Run the machine to move its left and right

wheels to the “single-sided axle” separately,

ensuring one wheel is completely on the axle

and the other on the level ground;

Target left-and-right inclination: SR18D

series: 2°;
