TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
9
SEC

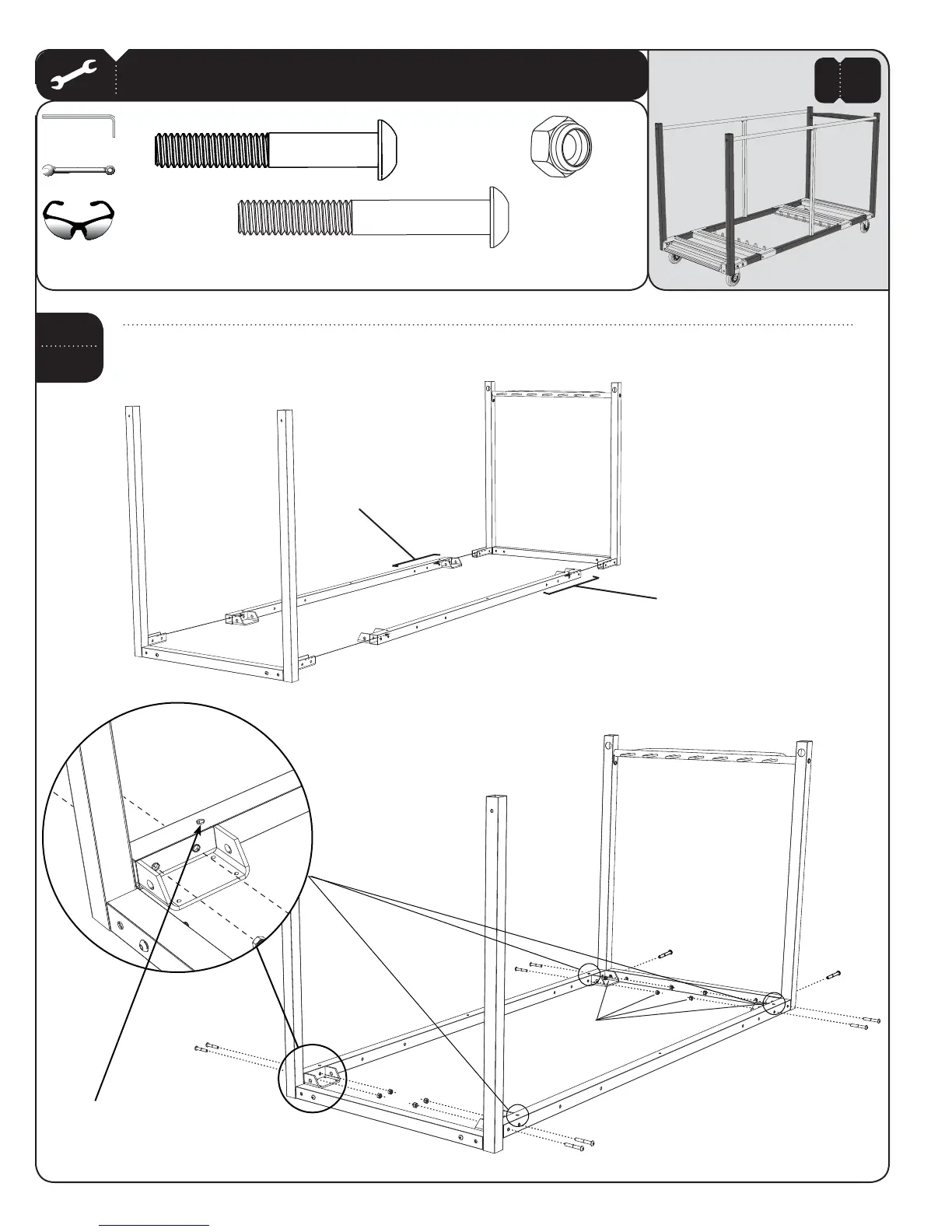

Connect the Front and Rear Assemblies to the Left and Right Side Horizontal Supports (DAR and DAS) using the
required hardware. Completely tighten these Nuts only after visually aligning the four holes indicated below.
To avoid complications later on in the
assembly, visually align these four
holes before tightening Screws (DAB
& DAA) and Nuts (DAG).
SEC
1.3
1
DAB (x8)
DAB
DAB
DAB
DAB
DAA
DAA
DAR
DAS
DAG (x10)
DAG
DAG
DAAY
These four holes go
toward the rear.
These four holes go
toward the rear.
3/16”
1/2”
To Next Page
