Lifetime RSL12UL - Wire the Batteries; Wire the Solar Panels

41

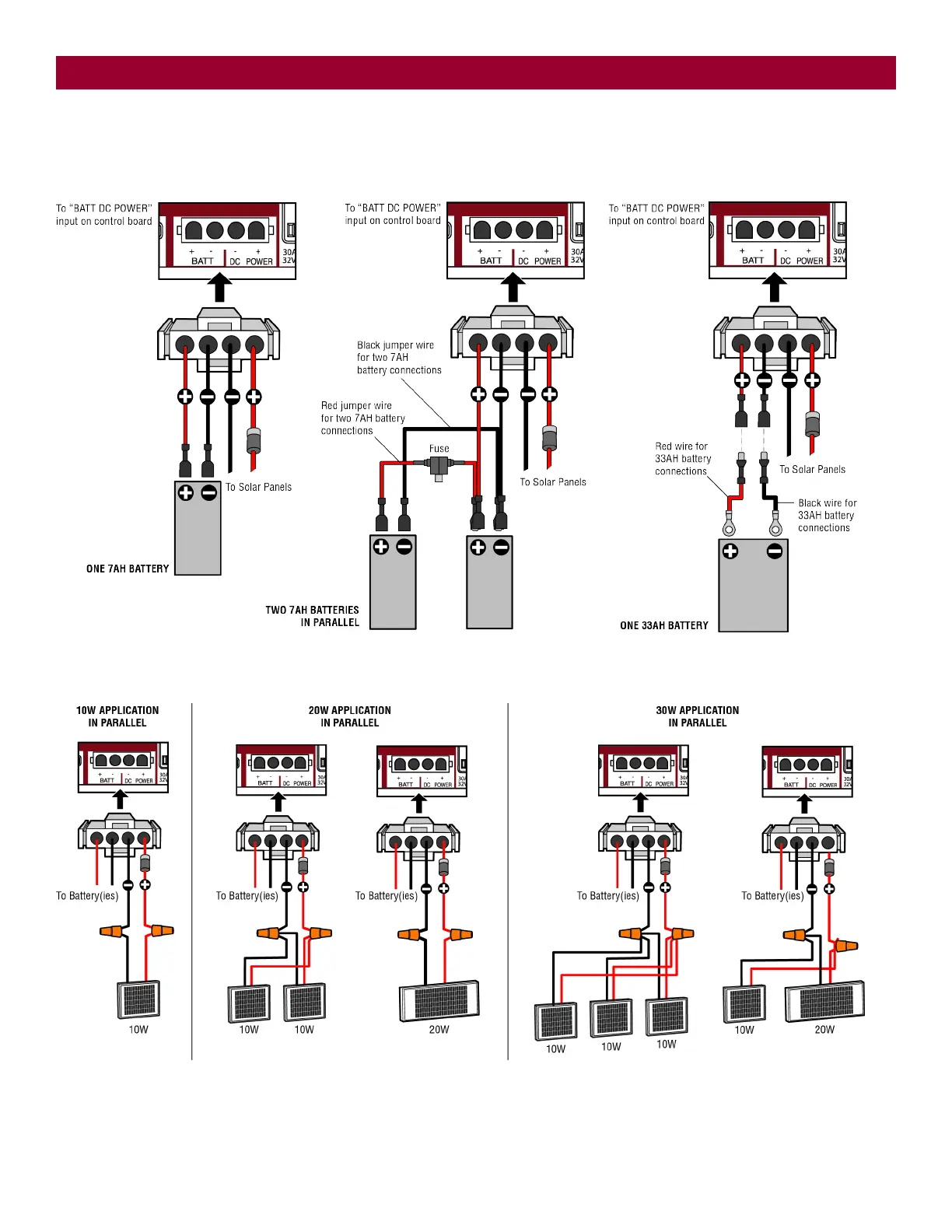

Wire the Batteries
Solar panel applications require the Solar Harness Kit model K94-37236, see Accessories.
Wire the Solar Panels
Proceed to the Dual Gate section (if applicable) or proceed to the Adjustment section.
APPENDIX
