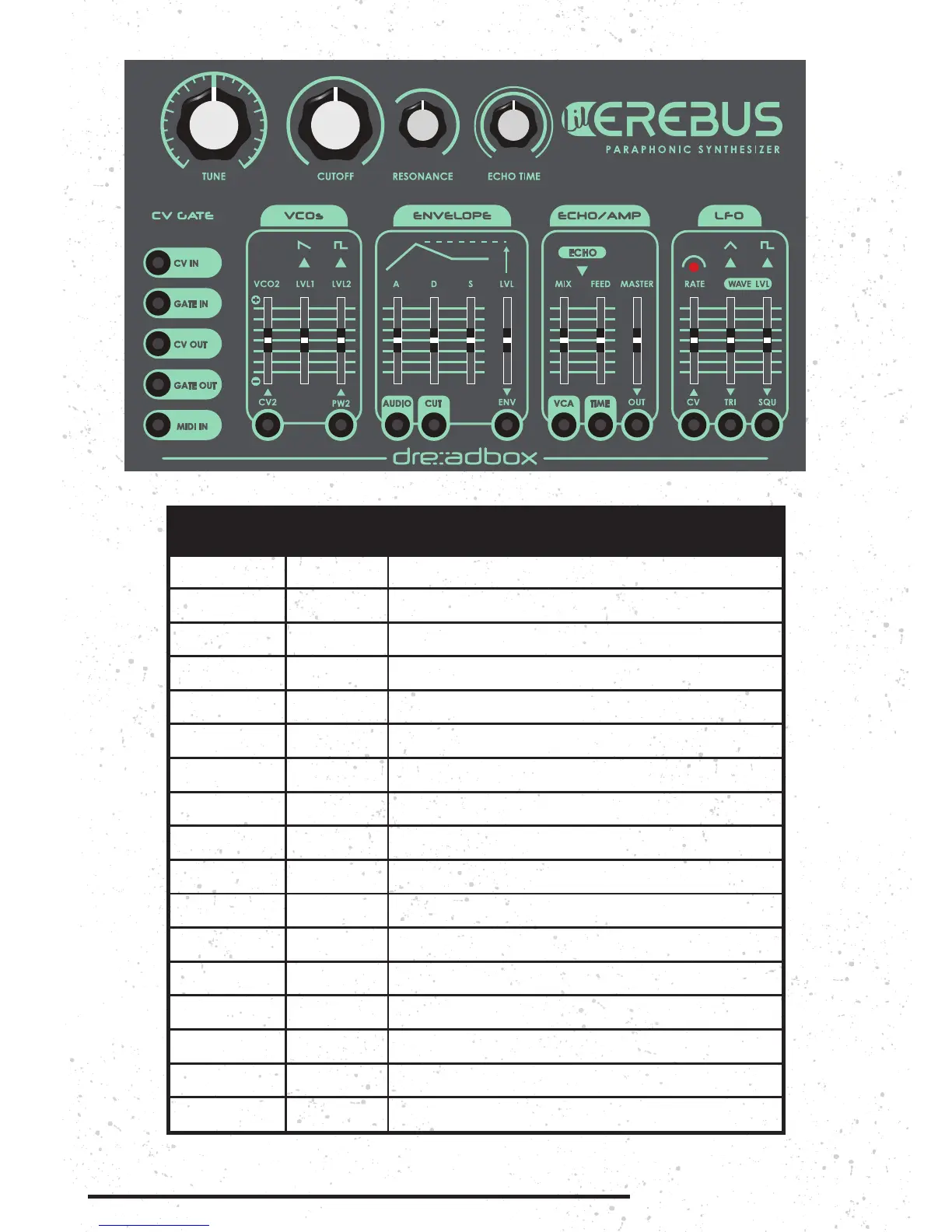

PATCH POINTS
GATE IN
NAME
GATE OUT
CV OUT
CV2
MIDI IN
PW2
CUT
AUDIO
VCA
ENV
TIME
CV
OUT
SQU
TRI
CV IN
CV OUT
CV OUT
CV IN
MIDI
CV IN
CV IN
SIGNAL
CV IN
CV OUT
CV IN
CV IN
SIGNAL
CV OUT
CV OUT
GATE INPUT (0V - 5V PULSE)
MIDI TO GATE OUT (0V - 5V PULSE)
MIDI TO CV OUT ( 1V/OCV - 5 OCTAVES RANGE)
PITCH CONTROL FOR VCO 2
MIDI INPUT. USE THE PROVIDED CABLE
PULSE WIDTH CONTROL FOR VCO2
CONTROL INPUT FOR THE CUT OFF. (0V - 5V )
SIGNAL INPUT (TO FILTER)
VCA LEVEL INPUT. CANCELS INTERNAL TRIGGER
ENVELOPE OUTPUT
DELAY TIME CONTROL (0V - 5V)
LFO RATE CONTROL
MASTER OUTPUT
LFO SQUARE WAVE OUT (10V PP)
LFO TRIANGLE WAVE OUT (6 V PP)
TYPE FUNCTION
CV IN CV IN PITCH CONTROL FOR BOTH VCOs
