IS 400 ECN 4176 Page 8 of 11

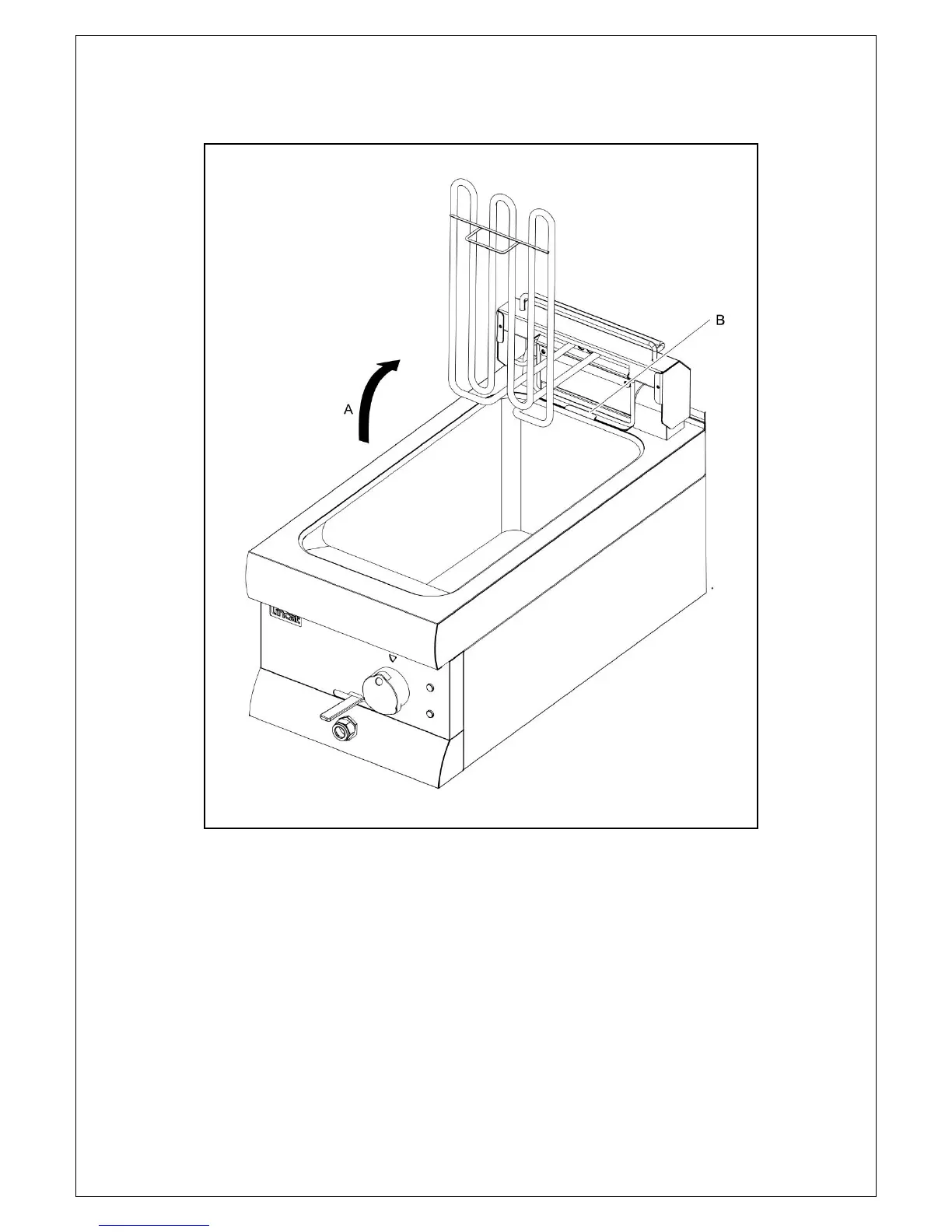

Lift the elements up and back Fig 3 (A) until the stay engages behind the bracket
(B).
Fig 3
Clean the tank with warm water and mild detergent. Dry thoroughly.
Re-position the element by gently pushing it back, lift and disengaging the stay then
lower the element back into place. Replace the batter plate, ensuring the tab
locates behind lifting box cover.
Check the drain valve is closed (lever fully left) before adding clean oil up to the
mark on the batter plate.
Connect the appliance to the electricity supply – the green neon illuminates to
indicate power to the fryer.
Turn the control knob to the desired setting. The amber neon illuminates.
