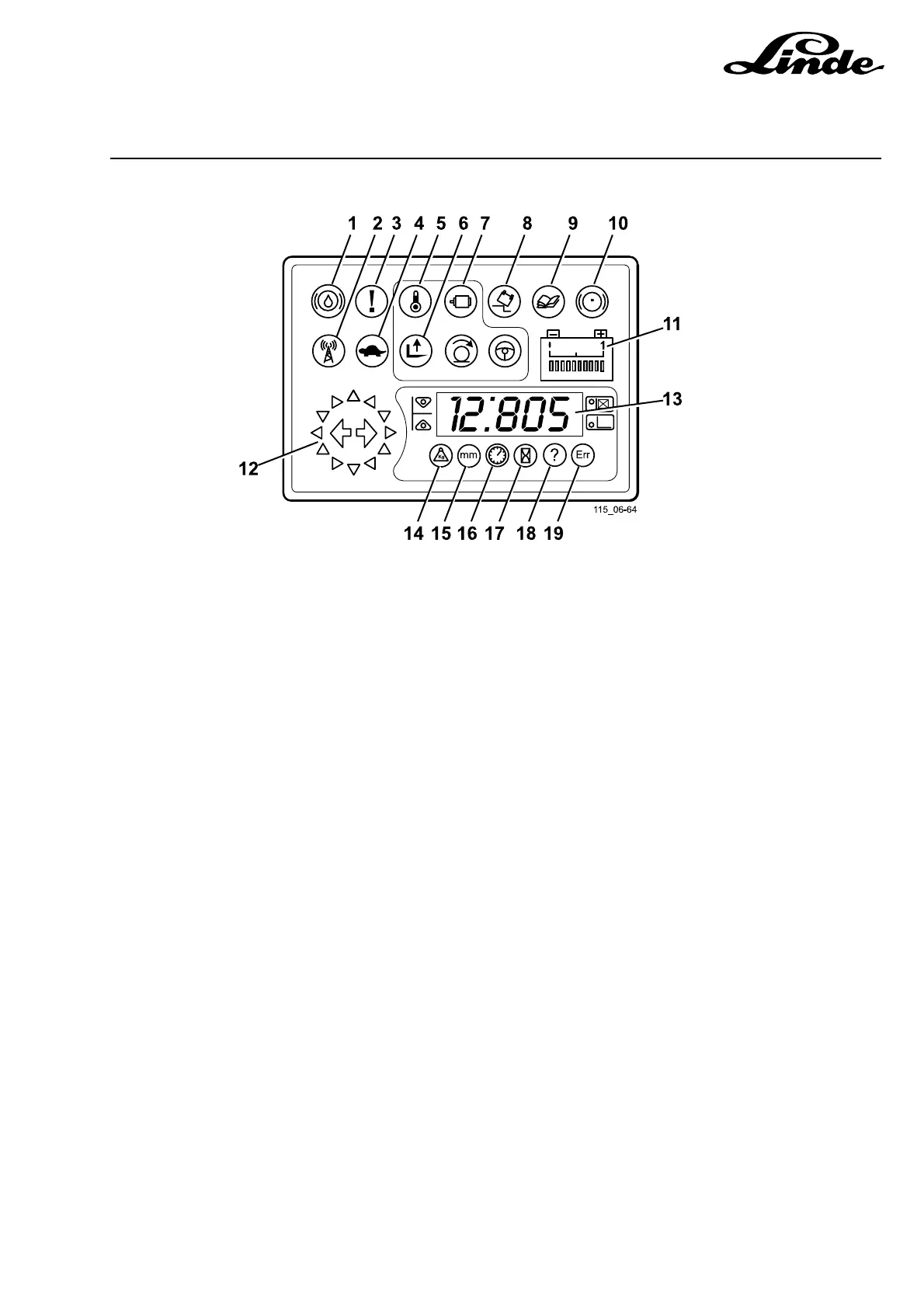

6.4 DRIVER’S DISPLAY (LID)
A new display provides all information to the driver.
- Hour meter
- Battery condition (BDI)
- Steering angle indicator
- Fork Height display (LHI)
- Warning indications
It also controls the following truck functions
- Cooling fans
- Steering wheel force feedback via CAN bus
Pin Connections 6X1 (LID)
Pin Colour Duty
1 BKRD +24V input
2 BURD Brake fluid sensor input S3
3 OG +48V input (direct from battery)
4 OGBU Spare UPA input to 6X63:8
5 WHVT Height encoder pulse A 1B12
6 BUVT Height encoder pulse B 1B12
7 YEGN Height encoder reference sensor 8B5
8 OGBN Battery lock sensor B1
9 RDYE Output to cooling fan for power block (control unit) 9M1
10 RDBU Output to cooling fans for pump motor 9M3a and b
11 RDGN Output to cooling fan for traction motor 9M2
12 GN Output that is not used at present.
13 YE Input from fork load sensor UPA.
14 VTWH CAN HI
15 VTRD CAN LO
16 BU 0V supply (direct from battery)
