RP01 / Chapter 1
115 804 2401.09.06
Page 1
Service Training
09.06
Section 2
2 TRANSMISSION

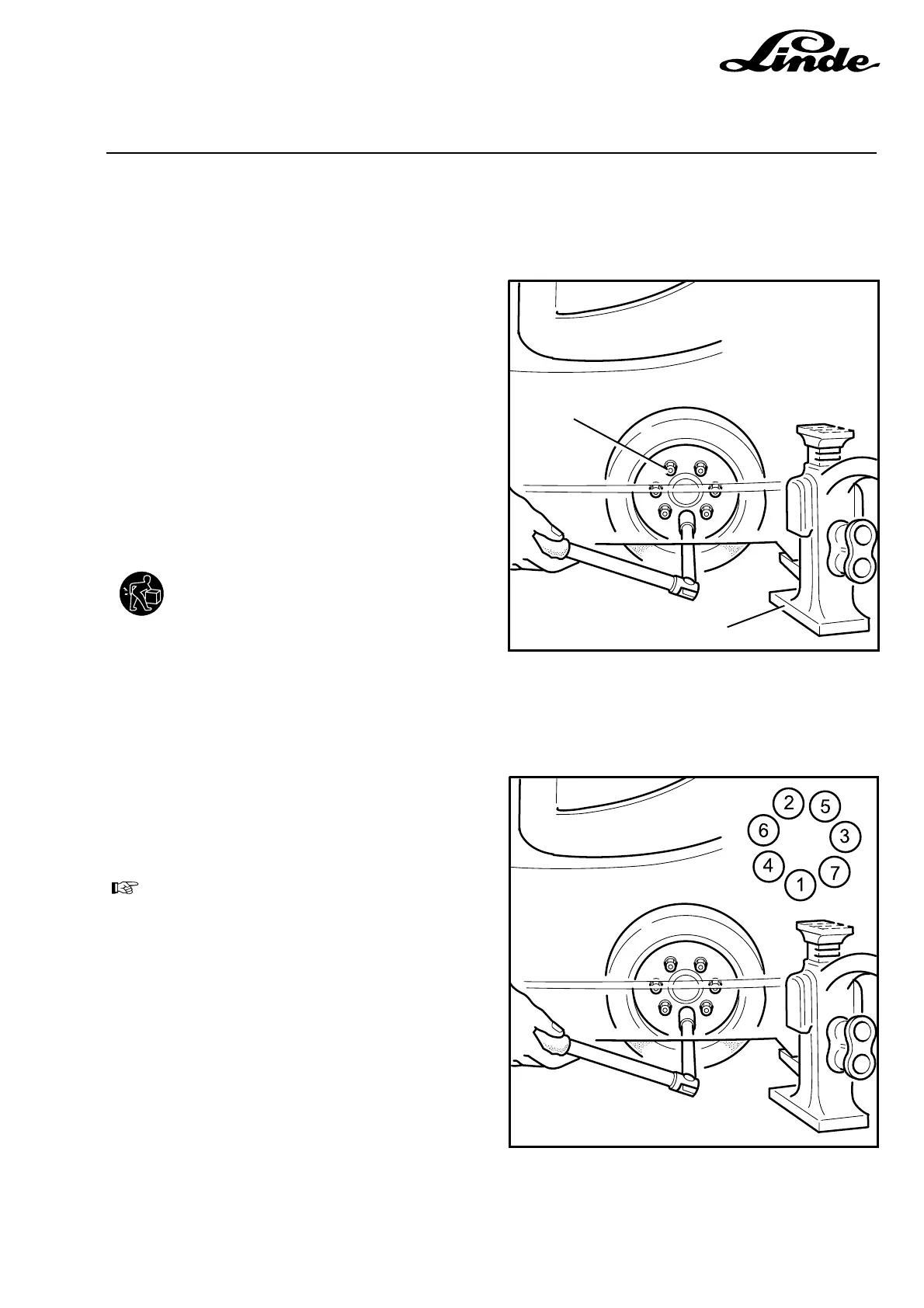

2.1 DRIVE WHEEL REMOVAL
- Apply the parking brake.
2
1
115_02-01
- Raise the truck at the drive end approximately
300 mm using a suitable jack (1) and chock in
position.
- Turn the steering wheel full lock.
- Remove accessible wheel nuts.
- Remount the truck, release the parking brake and
rotate the wheel until further wheel nuts become
accessible.
- Repeat the procedure until all the wheel nuts have
been removed.
- Manoeuvre the wheel off of the gearbox and from
under the chassis.
WARNING: Manual handling risk. The
wheel is heavy.
2.1.1 DRIVE WHEEL REFITTING
- To refit the drive wheel, reverse the removal
procedure.
NOTE: The wheel nuts should be tightened
daily after a wheel change until they are seated
firmly, i.e. until the correct torque figure is
consistently obtained.
For effective wheel fixing, tighten wheel nuts to
195 Nm in accordance with the sequence shown.
