RP01 / Chapter 1
115 804 2401.09.03
Page 3
Service Training
09.03
Section 2

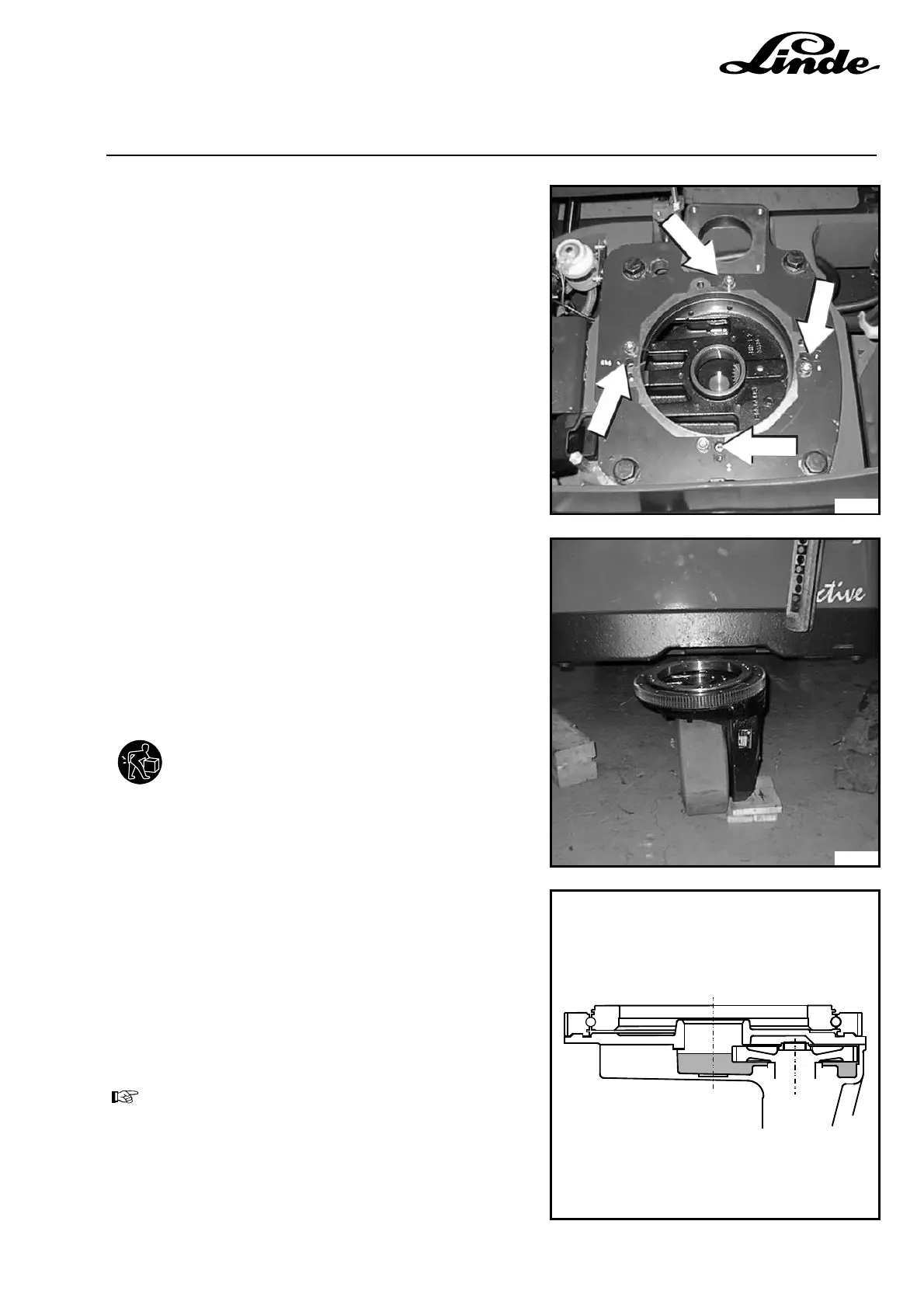

- Remove the four screws securing the gearbox.
115_02-05
- Using suitable lifting equipment, raise the front of the
truck sufficiently to clear the gearbox and chock in
position.
- The gearbox can now be manoeuvred clear of the
chassis.
WARNING: Manual handling risk. The gear-
box is heavy. Take care when manoeuvring
the gearbox from under the chassis.
- Remove chocks and lower the chassis onto suitable
blocks.
115_02-06
2.2.1 GEARBOX REFITTING
Reverse the removal procedure to replace the gearbox,
but lower the chassis onto wooden blocks thick enough to
allow final repositioning of the gearbox. Draw up the
gearbox to the chassis using two of the securing bolts.
Refit the rest of the bolts and tighten to correct torque, See
SECTION 10.
NOTE: When the gearbox is refitted in the truck,
before refitting the traction motor, the gearbox should
be filled with recommended oil (see SECTION 10) to
the level shown.
115_02-10
