Service Training
Section 3
Page 2
RP01 / Chapter 1
115 804 2401.1000

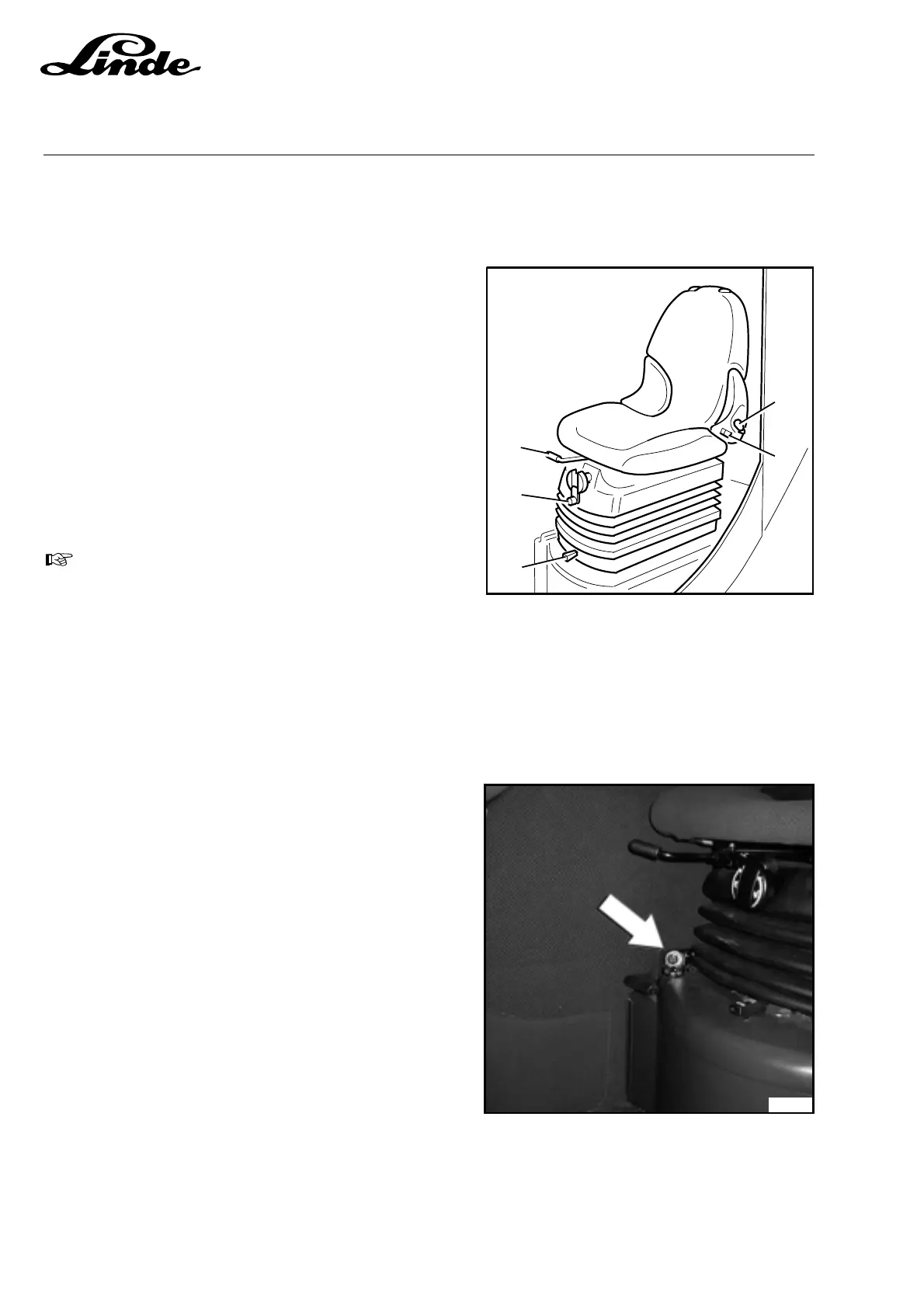

3.2 SEAT
3.2.1 SEAT ADJUSTMENT
1
2
3
4
5
115_03-02
- To move the seat forward or back, lift lever (5) and while
sat on the seat slide to the required position and release
the lever (5) to lock into the nearest notch.
- The handwheel (4) is for suspension tension and height
adjustment. Rotate the handwheel clockwise to raise
the tension. Rotate the handwheel anticlockwise to
lower the tension.
- Lever (3) is used to set the height of the seat when
unoccupied. Move the lever right to raise the seat
unoccupied position. Move the lever left to lower the
unoccupied position.
NOTE: This adjustment must be made whilst sat
on the seat.
- Button (2) is used to adjust lumber support.
- Lever (1) must be lifted to alter the rake of the seat back.
The rake can be adjusted to three positions.
3.2.2 SEAT REMOVAL
- Turn the keyswitch off and disconnect the battery.
- Remove the securing screw.
- Swing the seat assembly out from the chassis, until it
locates in the open position.
115_03-03
