Section 5
Page 1
Service Training
RP01 / Chapter 1
115 804 2401.1000
5 CONTROLS
CAUTION: Electrical components must not be connected or disconnected whilst the truck
is live. The battery must be disconnected, failure to do so can result in failure of the
modules.

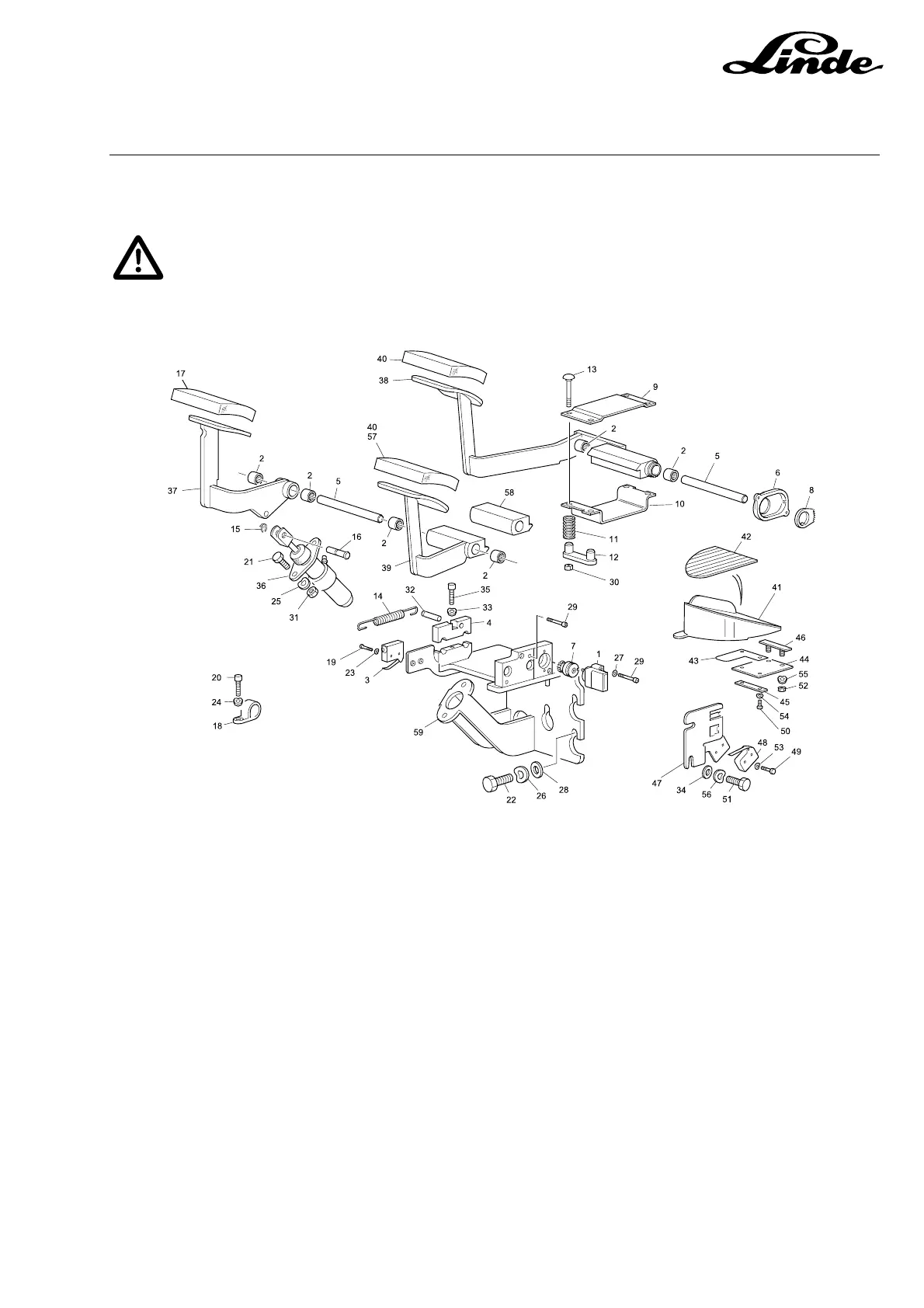

5.1 ACCELERATOR AND BRAKE PEDALS
115_05-03
1. Potentiometer
2. Needle bearing
3. Limit switch
4. Bearing block
5. Rod
6. Gasket
7. Pinion gear
8. Gear
9. Bracket
10. Bracket
11. Spring
12. Guide
13. Bolt
14. Tension spring
15. Retaining clip
16. Pin
17. Pedal rubber
18. Cable clip
19. Hexagon screw
20. Socket head screw
21. Hexagon head screw
22. Hexagon screw
23. Wavy washer
24. Wavy washer
25. Spring washer
26. Spring washer
27. Washer
28. Washer
29. Socket head screw
30. Hexagon nut
31. Hexagon nut
32. Pin
33. Washer
34. Washer
35. Socket head screw
36. Master cylinder
37. Brake pedal
38. Right accelerator pedal
39. Left accelerator pedal
40. Pedal rubber
41. Pedal
42. Pedal rubber
43. Spring plate
44. Spring
45. Retainer ring
46. Retainer ring
47. Bracket
48. Limit switch
49. Hexagon screw
50. Hexagon screw
51. Hexagon screw
52. Hexagon nut
53. Wavy washer
54. Wavy washer
55. Wavy washer
56. Spring washer
57. Pedal rubber
58. Spacer
59. Pedal box assembly
