5.2 HYDRAULIC BRAKING SYSTEM
The hydraulic braking system is operated by the footbrake pedal and is used to supplement the
regenerative braking and provide an emergency brake. The footbrake is directly coupled to the brake
master cylinder, which is self replenished from an external supply reservoir.
The footbrake operates a single self adjusting leading brake shoe assembly on each of the load wheels
and also a brake connected to top of the traction motor armature shaft.

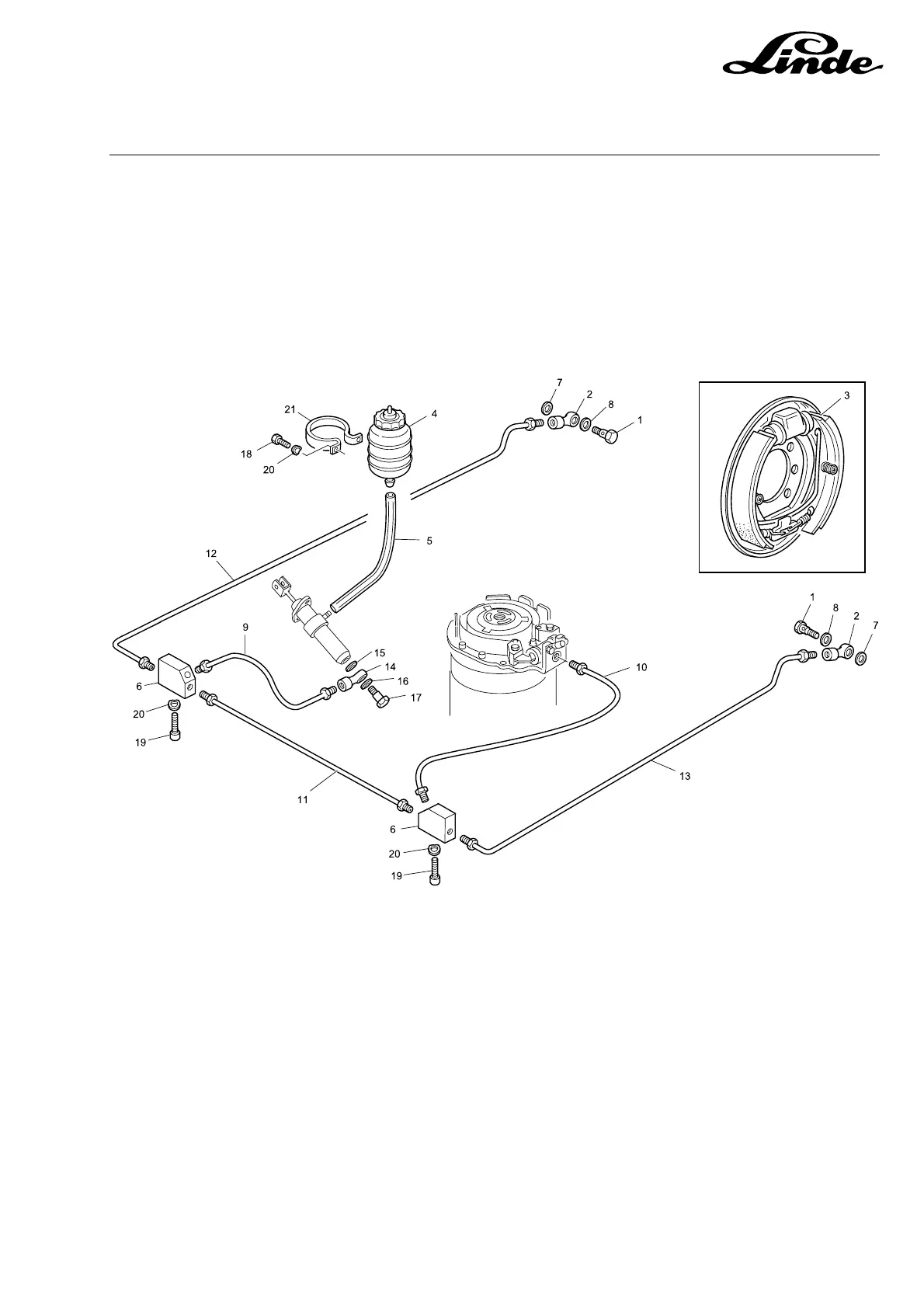

1. Hollow screw
2. Banjo union
3. Brake assembly
4. Reservoir
5. Pipe
6. Adaptor
7. Seal
8. Seal
9. Pipe assembly
10. Pipe assembly
11. Pipe assembly
12. Pipe assembly
13. Pipe assembly
14. Banjo union
15. Seal
16. Seal
17. Hollow screw
18. Hexagon head screw
19. Socket head screw
20. Wavy washer
21. Bracket
