Linde 115 Series - Page 76

Service Training
Section 5
Page 14
RP01 / Chapter 1
115 804 2401.1000

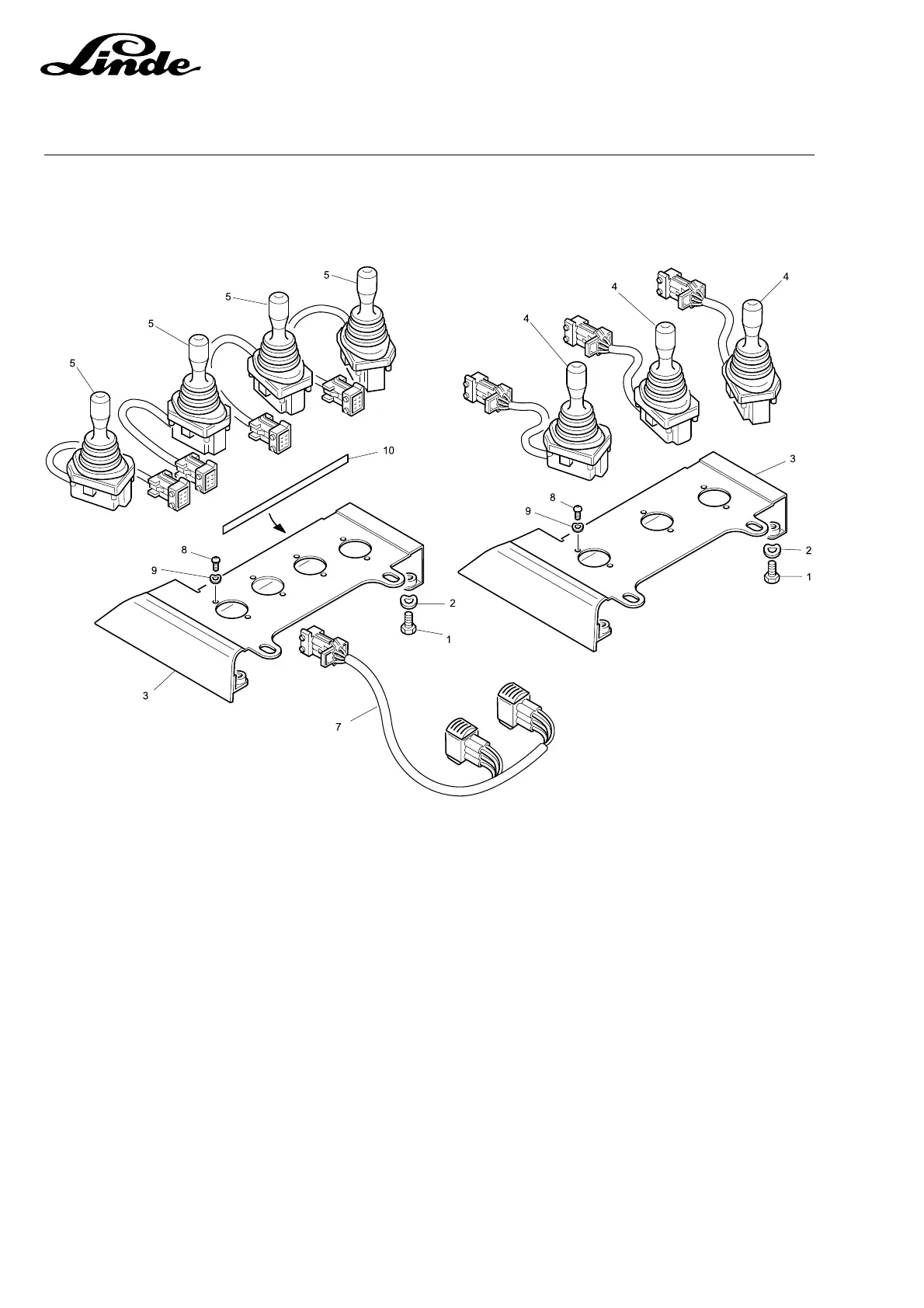

5.8 HYDRAULIC CONTROLS
115_05-14
1. Hexagon head screw
2. Spring washer
3. Bracket (3 position)
4. Control lever (dual axis)
5. Control lever (single axis)
6. Control lever with button (clamp)
7. Harness assembly
8. Screw
9. Wavy washer
10. Label
11. Housing
