Section 6
Page 7
Service Training
RP01 / Chapter 1
115 804 2401.1000

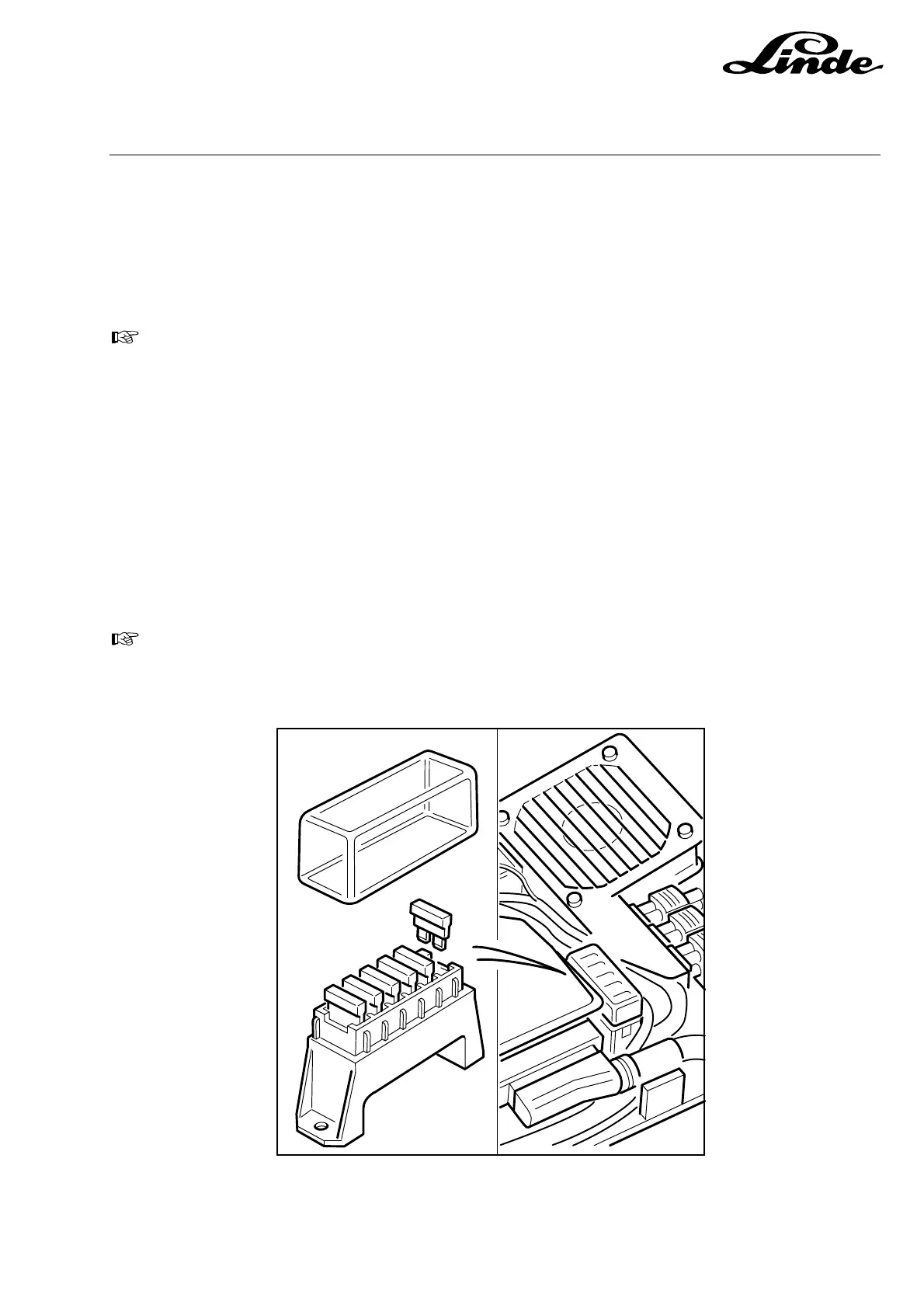

6.1.3.1 FUSES - ANCILLARY CIRCUITS
Small fuses are to DIN 72581 outline.
These battery voltage fuses within the control unit enclosure are a special sand filled type and rated at a
nominal 80 volts.
NOTE: Although these fuses are interchangeable with automotive fuses, automotive fuses
MUST NOT be used. Only genuine Linde fuses have sufficient voltage capability to ensure cor-
rect operation at truck voltages.
6.1.3.2 FUSE DUTIES AND POSITIONS - ANCILLARY CIRCUITS
1. 1F2 5A Key switch, traction and steering control circuits.
2. 1F4 5A 24 volt output from DC-DC converter.
3. 1F6 5A Heated seat & horn supplies
4. 6F1 5A BDI monitoring voltage.
5. 1F8 5A Parking brake release & Pre-charge Resistor.
6. 5F1 5A Lighting supplies
NOTE: All control fuses are rated at 80V
