Service Training
Section 6
Page 9
RP01/Chapter 1
115 804 2401.1000

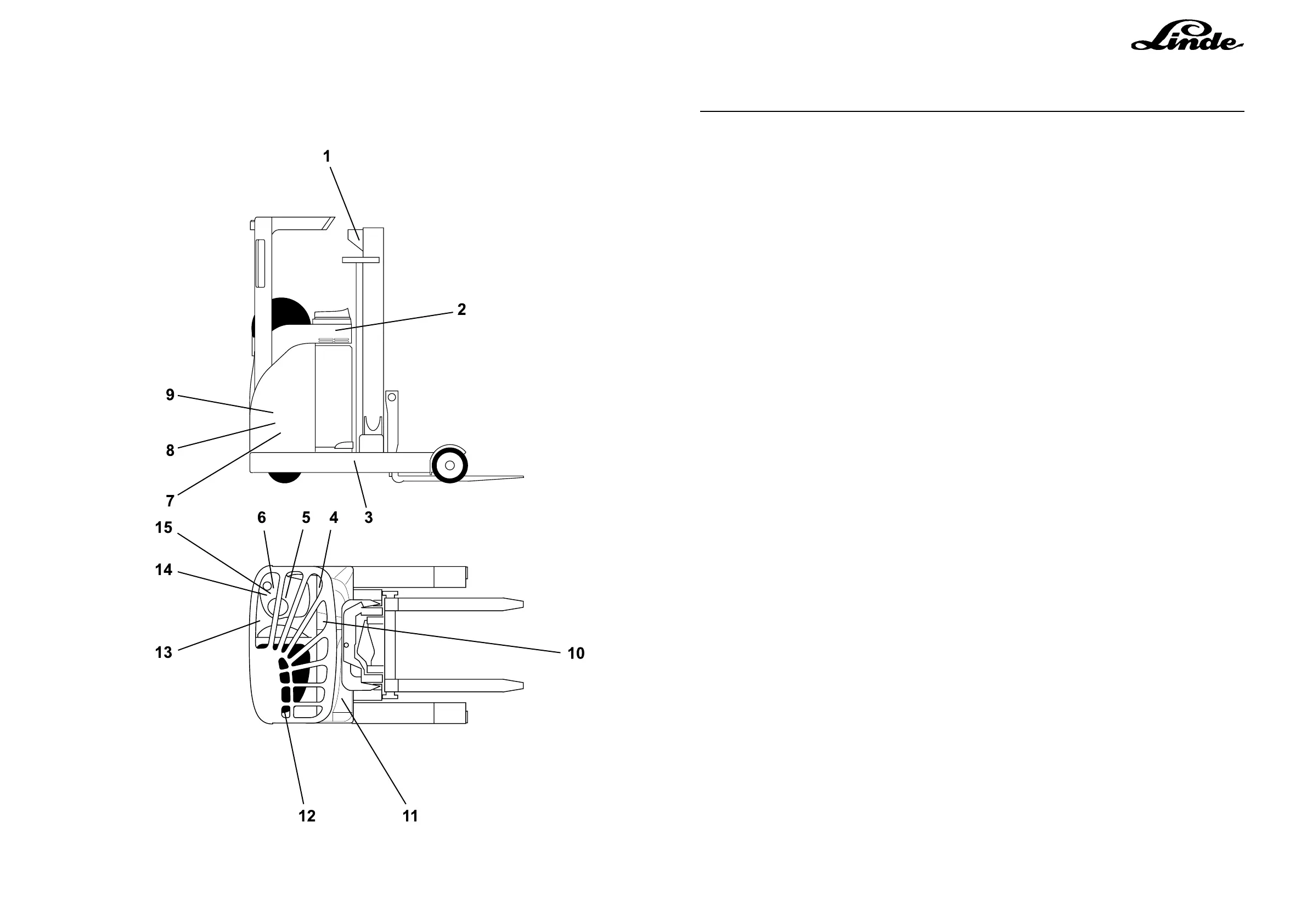

DESIGNATION ITEM POSITION ON TRUCK TYPE POLES DUTY
1X10 13 Under the floorplate JPT 4 Acclerator
1X11 11 On the shelf SAAB 29 Traction Module
1X12 11 On the shelf SAAB 29 Traction Module
1X13 11 On the shelf SAAB 29 MOSFET block
1X14 13 Under the floorplate JPT 3 Footbrake switch
1X15 11 On the shelf SAAB 4 Diagnostics
1X19 7 On drive unit SAAB 2 Brake soleniod
1X32 12 Behind/under the seat SAAB 6 Seat
1X34 13 Under the floorplate SAAB 2 Travel alarm (Option)
1X36 3 Base of mast SAAB 4 8.5 m Traction slow switch
1X38 13 Under the floorplate JPT 3 Left foot switch
1X4 14 Inside the steering binnacle SWITCH 8 Handbrake switch
1X7 7 On drive unit SAAB 4 Traction brush and temp.
1X9 2 On shelf heatsink bracket SAAB 6 Direction switch/Horn push
2X1 11 On the shelf SAAB 42 Lift Module
2X15 10 On shelf - lever bracket SAAB 6 Lift/Reach lever
2X15X 10 On shelf - lever bracket SAAB 6 Reach lever
2X15Y 10 On shelf - lever bracket SAAB 6 Lift lever
2X17 3 Base of mast SAAB 16 Valve block
2X19 3 Base of mast SAAB 6 6th Hyd./UPA connector
2X20 13 Under the floorplate SAAB 24 Reach carriage cable
2X26 10 On shelf - lever bracket SAAB 6 Tilt/sideshift lever
2X26X 10 On shelf - lever bracket SAAB 6 Sideshift lever
2X26Y 10 On shelf - lever bracket SAAB 6 Tilt lever
2X27 10 On shelf - lever bracket SAAB 6 5/6th Hyd. lever
2X6A 4 On reach sensor ESCHA 4 Reach out sensor
2X6B 4 On reach sensor ESCHA 4 Reach out sensor
2X7 8 Adjacent to lift motor SAAB 4 Lift brush and temp.
2X81 3 Base of mast SAAB 4 Lift stop sensor
2X83 8 Adjacent to lift motor SAAB 4 Lift tachometer
3X1 15 Part of the steering unit SAAB 16 Steering supplies
3X15 7 On drive unit SAAB 10 Steering system interface
3X4 5 Under the steering unit BUS 8 Steering encoder & feedback
3X4A 14 Inside the steering binnacle BUS 8 Steering encoder & feedback
3X8 7 On drive unit SAAB 4 90ˆ sensor
3X9 7 On drive unit SAAB 4 180ˆ sensor
4X1 13 Under the floorplate SAAB 2 Horn
5S1 14 Inside the steering binnacle SWITCH 8 Working light switch 5S1
5S2 14 Inside the steering binnacle SWITCH 8 Working light switch 5S2
5X1 6 Behind steering column SAAB 4 Lighting supplies
5X1A 6 Behind steering column SAAB 4 Lighting supplies + CCTV
5X27 12 Behind/under the seat SAAB 10 Lights (Option)
5X4 5 Under the steering unit SAAB 4 To lighting switches
6X1 11 On the shelf SAAB 16 Driver's display
6X60 14 Inside the steering binnacle SAAB 6 Keyswitch/keypad/Data Logger
6X65 1 Top of fixed mast SAAB 2 Heater supply/height encoder
8X23 1 Top of fixed mast SAAB 4 Reference sensor (Option)
8X25 1 Top of fixed mast SAAB 6 Height encoder (Option)
8X30 3 Base of mast SAAB 10 Mast cable - height encoder
9X1A 2 On shelf heatsink bracket SAAB 2 MOSFET fan A
9X1B 2 On shelf heatsink bracket SAAB 2 MOSFET fan B
9X2 7 On drive unit SAAB 2 Traction fan
9X28A 9 On the lift motor SAAB 2 Lift motor fan A (on motor)
9X28B 9 On the lift motor SAAB 2 Lift motor fan B (on motor)
Convertor CCTV 13 Under the floorplate SAAB 6 Converter CCTV
Convertor UPA 13 Under the floorplate SAAB 6 Converter UPA
Faston (x2) 14 Inside the steering binnacle FASTON 1 Keyswitch
Faston (x2) 13 Under the floorplate FASTON 1 Brake fluid reservoir
Faston (x2) 11 On the shelf FASTON 1 Line contactor coil
Fuses 11 On the shelf Fuse box 12 Fuse holder
G/X49 15 Part of the steering unit ESCHA 8 Steering 90ˆ/180ˆ sensor input
L/x50 15 Part of the steering unit ESCHA 8 Steering encoder input
M10 ring (x2) 11 On the shelf RING 1 Line contactor contacts
M8 ring (x1) 11 On the shelf RING 1 Battery Positive direct
X1 13 Under the floorplate SAAB 4 Battery lock sensor
X12 11 On the shelf SAAB 6 Charge restistor
X3 2 On shelf heatsink bracket SAAB 2 Isolator aux switch
X48 15 Part of the steering unit ESCHA 4 Steering CAN interface
X5 5 Under the steering unit SAAB 10 Keyswitch/keypad/Data Logger
X8 10 On shelf - lever bracket SAAB 6 DC/DC converter connector
