Section 6
Page 17
Service Training
RP01 / Chapter 1
115 804 2401.1000

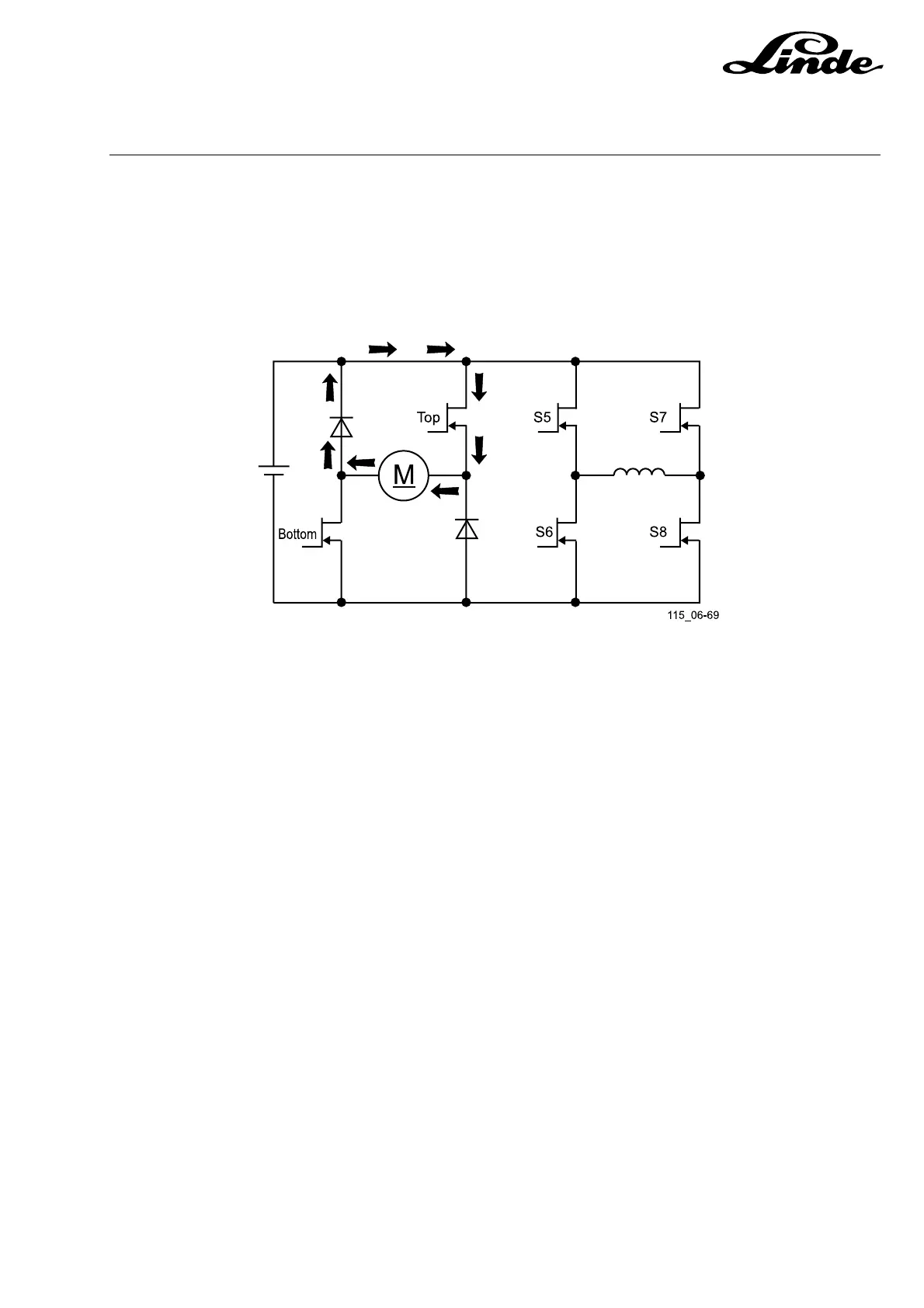

6.1.5.5 FREEWHEEL CIRCUIT
When the bottom FET is turned off, the armature current will freewheel through the top FET and diode.
