Line 6 POD HD500 User Manual

Overview
1•3

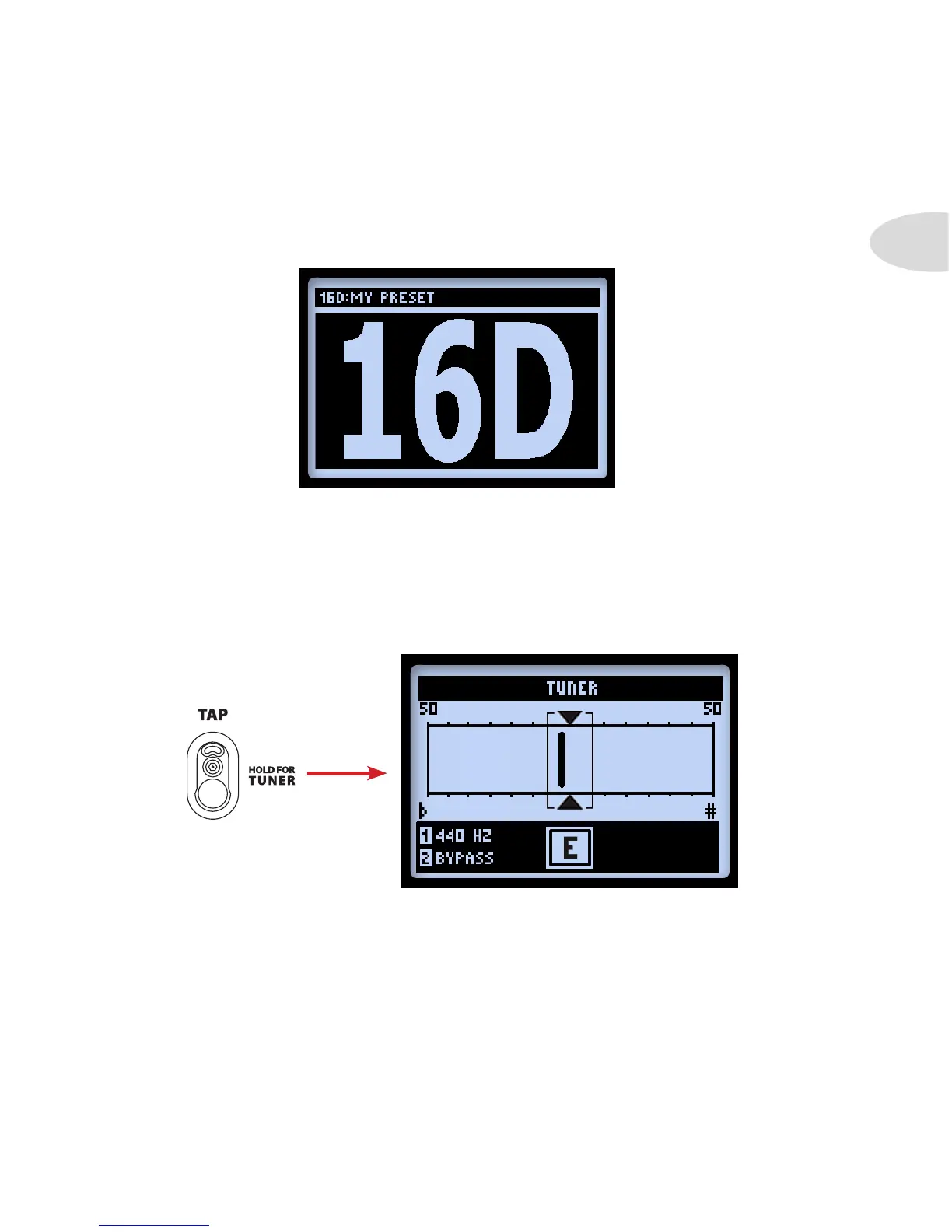

Big User View
This screen simply provides you with one BIG display of the currently loaded Preset
number - convenient for dark stages!
The Big User View
Tuner Mode
To enter Tuner mode, press and hold the TAP button. A few options are available, adjusted
using the Multi-function knobs.
ENTER
DBL PRESS TO ASSIGN CTL
MOVE
AMP & FX ON / OFF
SAVE
HOLD FOR SYSTEM & I/O
VIEW
P
R
E
S
E
T
S
The Tuner screen
Pluck an individual string on your guitar and you’ll see the name of the note displayed.
When the graphic bar is to the left of center, your string is at; when it is to the right, your
string is sharp. When the bar is within the center range, triangles will appear above and
below it, indicating your string is in tune.

Line 6 POD HD500 Specifications

General

Type	Multi-Effects Processor
Power Source	AC adapter (included)
Computer Connectivity	USB
Presets	512 (256 User, 256 Factory)
Effects	Over 100 effects
Looper	Yes, 48 seconds
Inputs	1 x 1/4" Guitar Input, 1 x XLR Mic Input, 1 x 1/4" Aux Input
Outputs	1 x 1/4" Headphone Output, 1 x XLR Main Output
MIDI	In/Out
Display	LCD
Expression Pedal	Yes, built-in
Weight	5.4 kg
Footswitches	12 Footswitches
