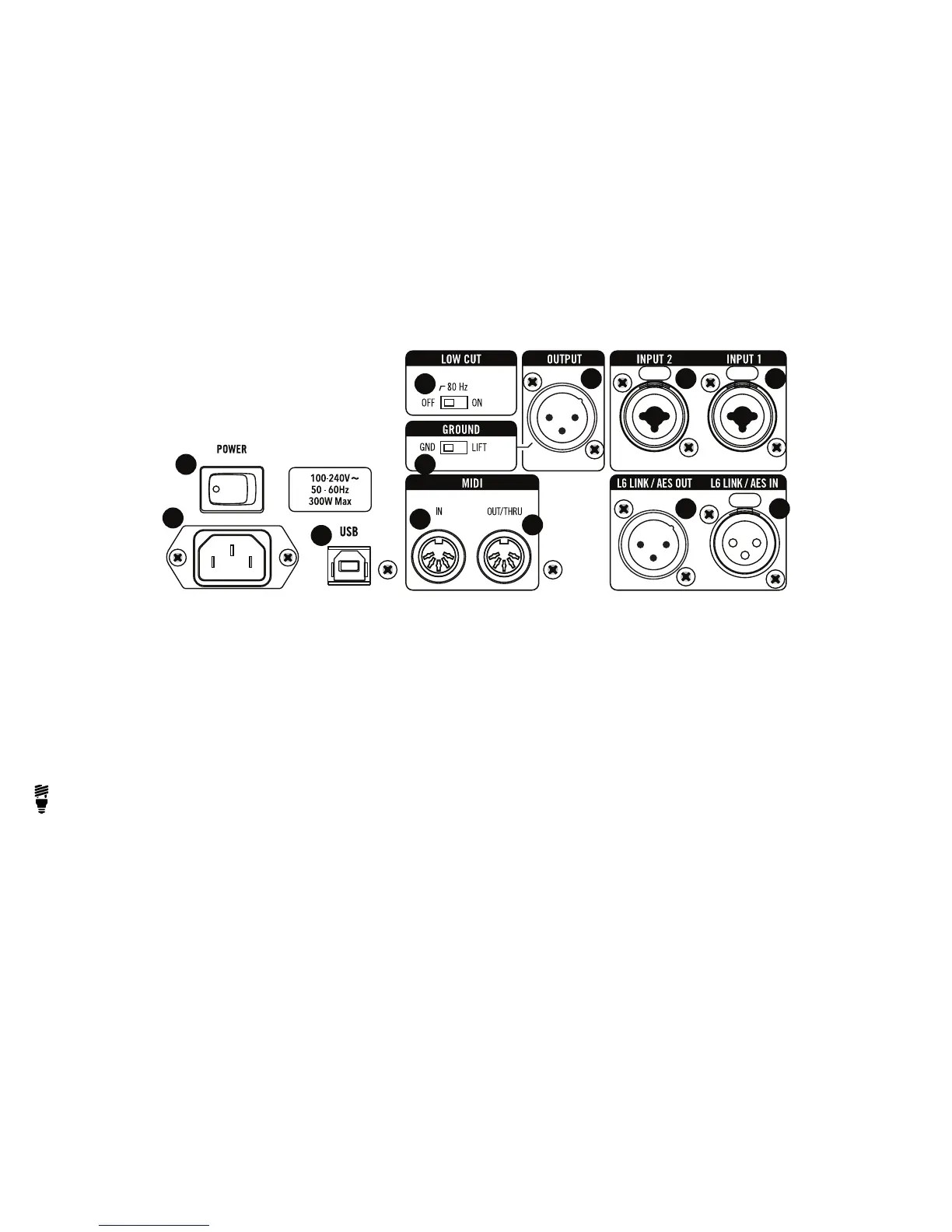

8. Power Switch - Turns the Powercab device on or o.
9. AC In - Connect the included IEC power cable here.
10. Low Cut Switch - Toggles the 80Hz Low Cut Filter on/o, useful for
removing unwanted low end vibration (does not apply to the XLR or
L6 LINK - AES/EBU Outputs' signals).
11. Ground Lift Switch - Controls whether the ground circuit is lifted
for the XLR Output Jack. Can be useful for identifying ground loops,
which can cause an unwanted hum.
12. XLR Output Jack - Connect to an analog mixer's input. This output
is Line Level with a maximum of +13dBu.
TIP: This XLR Output is not aected by 48V phantom power.
13. & 14. Combo Input Jacks 1 and 2 - Connect the Line Level output(s)
of your amp modeler to these balanced 1/4" TRS/XLR inputs (e.g. -
Line 6 Helix
®
or POD
®
devices, etc.). A Helix device should be set to
Line Level. A POD
®
HD device should be set to +4dB.
Analog preamp pedals may require a D.I. Box to achieve the
appropriate Line Level for these inputs (maximum +13dBu).
15. USB-B Jack - Connect to a Mac or PC to use the Powercab Edit
software to load IRs or customize & backup/restore all presets, or to
use the Line 6 Updater software. Both are available free from at www.
line6.com/software.
16 & 17. MIDI IN, OUT/THRU Jacks - Connect to your MIDI gear for
sending and receiving program changes, continuous controllers,
and other MIDI messages. Connect a second Powercab 112 Plus
unit to send patch changes to both units.
18. L6 LINK, AES/EBU IN - L6 LINK provides easy digital audio
connectivity and remote control capability between Helix and
Powercab 112 Plus devices. Alternatively, digitally connect your
amp modeler that supports AES using an AES/EBU (110Ω XLR)
cable. (See "L6 LINK" on page 11.)
19. L6 LINK, AES/EBU OUT - Connect one Powercab 112 Plus device
to another Powercab 112 Plus device to automatically congure
them as a stereo pair.
