Linksys WRT3200ACM User Manual

4

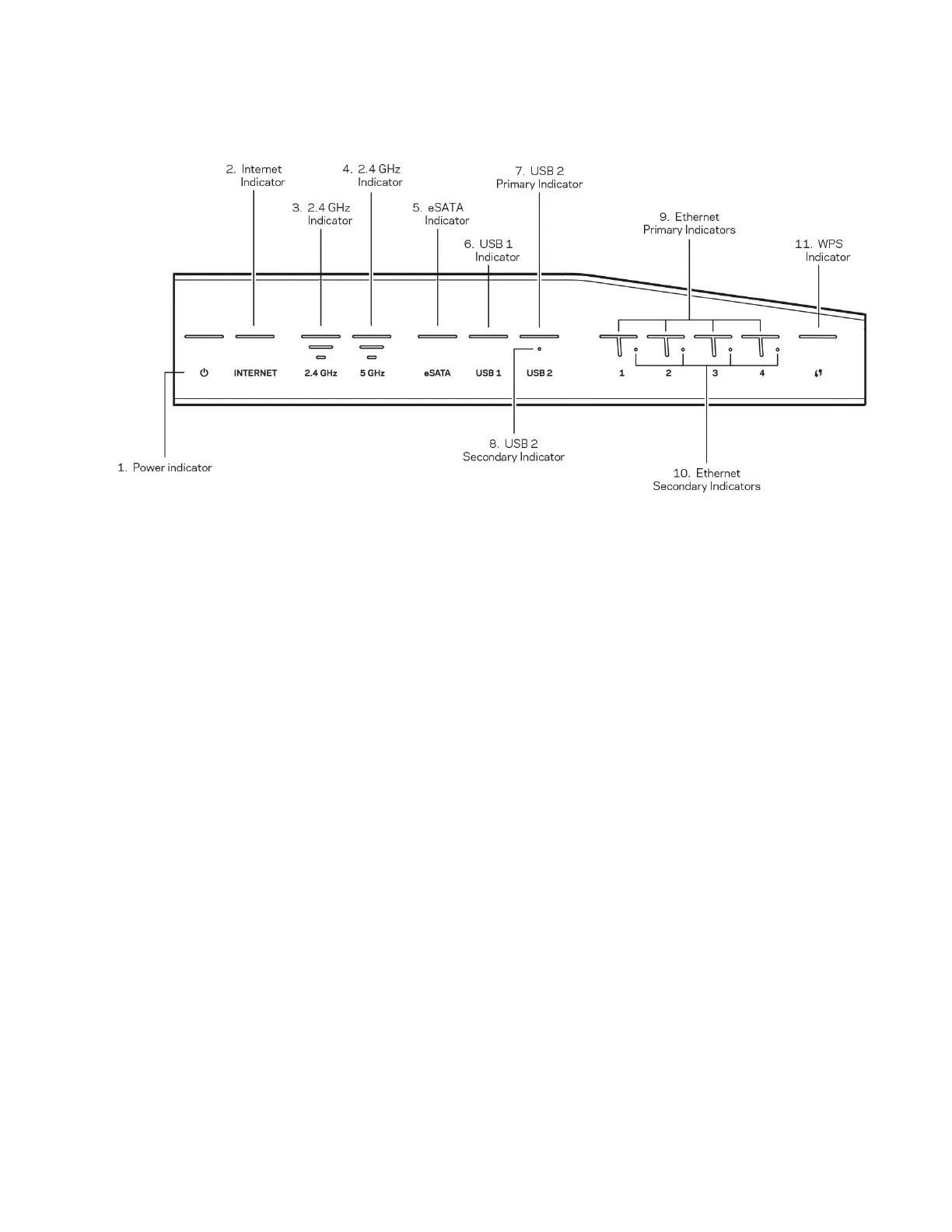

Front panel
(1) Power indicator—(White) The icon LED is solid white while the router is powered on. It will blink
when the router goes through its self-diagnostic mode during every boot-up.
(2) Internet Indicator—(White/Amber) The Internet LED is solid white when connected to the
Internet. It blinks white while the router works to establish a connection. A solid amber LED
indicates the connection is down due to configuration issues. Amber blinking indicates that the
connection is down due to hardware issues.
(3) 2.4 GHz Indicator—(White) The Wireless LED is solid white when one or more clients are
connected to the 2.4 GHz network. If the LED is blinking white, the router is sending or receiving
data over the 2.4 GHz network.
(4) 5 GHz Indicator—(White) The Wireless LED is solid white when one or more clients are
connected to the 5GHz network. If the LED is blinking white, the router is sending or receiving
data over the 5 GHz network.
(5) eSATA Indicator—(White) When off, the USB/eSATA port is off or a USB device is connected.
The LED is solid white when an eSATA device is connected. A blinking white LED indicates activity
through the eSATA port.
(6) USB1 Indicator—(White) When off, the USB /eSATA port is off or an eSATA device is
connected. The LED is solid white when a USB device is connected. A blinking white LED indicates
activity on the port.
(7) USB2 Primary Indicator—(White) When off, the USB 3.0 port is off. The LED is solid white
when a USB device is connected. A blinking white indicates activity on the port.
(8) USB2 Secondary Indicator—(White) When off, a USB 1.0 or USB 2.0 device is connected. A
solid white LED indicates a USB 3.0 device is connected.

Linksys WRT3200ACM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Security algorithms	AES, WPA, WPA2
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
Product type	Tabletop router
Product color	Black, Blue
LED indicators	Power
Housing material	Plastic
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Processor cores	2
Processor frequency	1800 MHz
Memory card slot(s)	-
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1
Output current	3 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Minimum system requirements	Internet Explorer 8 Safari 5 (for Mac) Firefox 8 Google Chrome
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	193.8 mm
Width	245.87 mm
Height	51.82 mm
Weight	798.32 g
