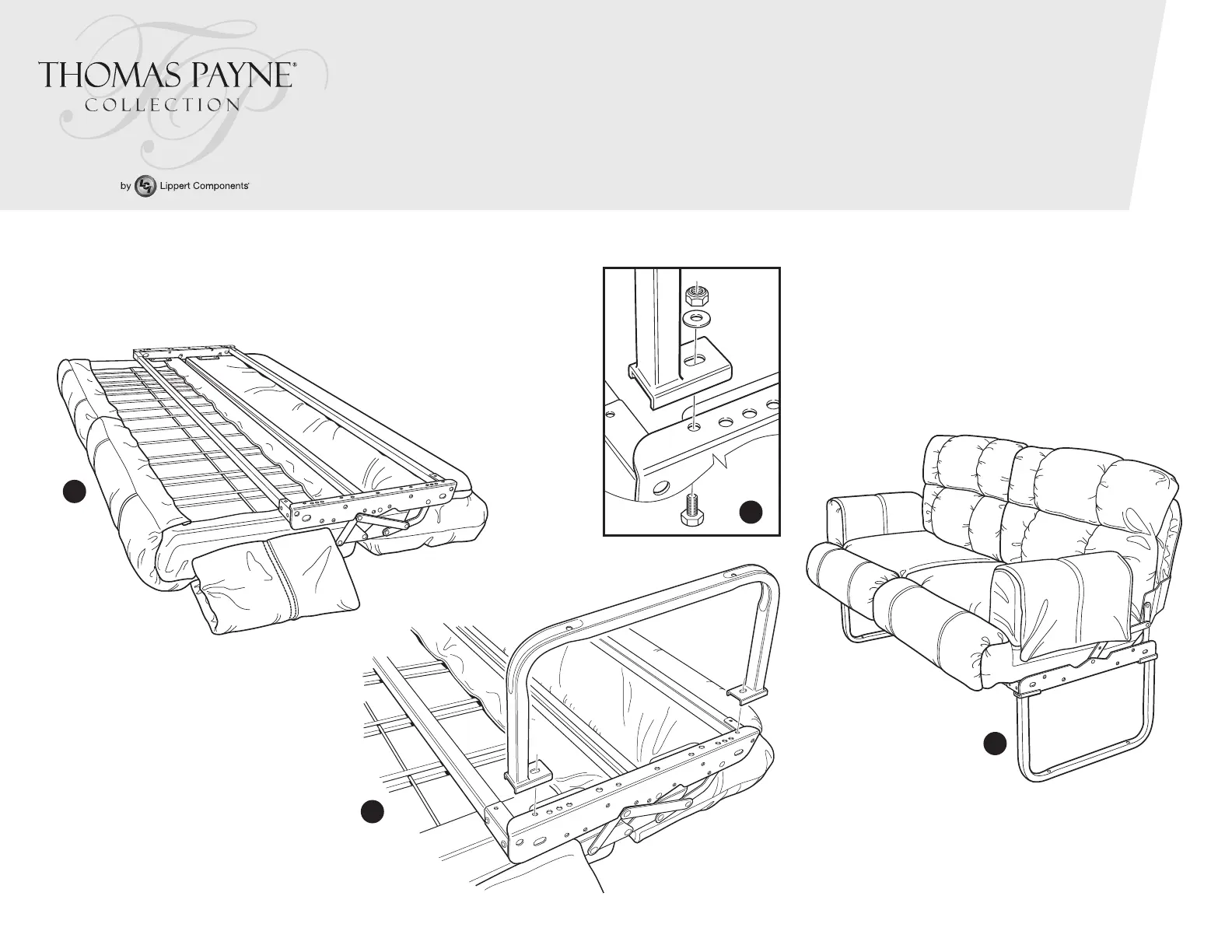

Start assembly by turning the sofa
over with the bottom and back lying
flat facing up (fig. A).
Take the two leg brackets which can
be rotated or used on either side of the
sofa and align with the corresponding
holes in the frame (fig. B).
Turn sofa upright to attach the front
kick panel (fig. D).
C
D
Insert the 3/4'' length bolt through the
bottom of the frame and attach the
washer and nylock nut from the top.
Using either a 1/2'' socket, open-end,
box or adjustable wrench from both
above and below, tighten snuggly using
caution not to overtighten (fig. C).
Each kit includes the following hardware:
(4) 5/16''-18 x 3/4'' Bolt
(3/4'' long, 5/16'' diameter, 18 threads per inch)
(4) 5/16'' flat washer
(4) 5/16''-18 nylock nut
For assembly, you will need any two of the following:
• ratchet with a 1/2'' socket
• 1/2'' open-end or box wrench
• adjustable wrench
