LiteOn WB116A User Manual

WB116A Page 2/10 2015/10/15

1 PRODUCTOVERVIEW
1.1 D
ESCRIPTION
WB116A(Xtype/Ytype)isaBluetoothmodulewhichusingAirohaChipsetAB1520H
1.2 FEATURES
FullyqualifiedBluetooth®v3.0system
ClassI(Max+5dBm)
Codec:SBC/AAC
ContentProtection:SCMS‐T
RoHScompliance
LowHalogencompliance

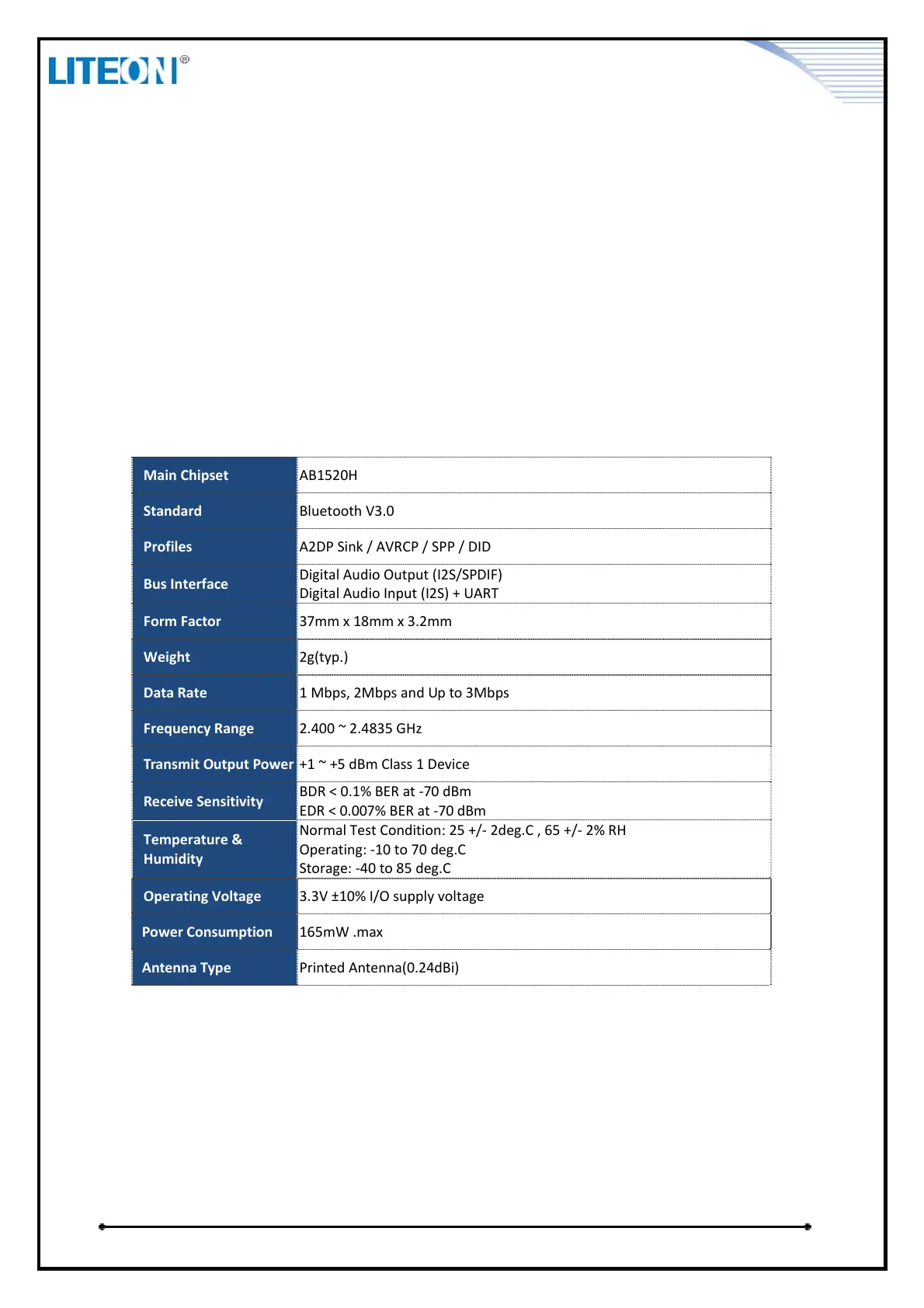

1.3 GENERALSPECIFICATIONS
MainChipset AB1520H
Standard BluetoothV3.0
Profiles A2DPSink/AVRCP/SPP/DID
BusInterface
DigitalAudioOutput(I2S/SPDIF)
DigitalAudioInput(I2S)+UART
FormFactor 37mmx18mmx3.2mm
Weight 2g(typ.)
DataRate 1Mbps,2MbpsandUpto3Mbps
FrequencyRange 2.400~2.4835GHz
TransmitOutputPower +1~+5dBmClass1Device
ReceiveSensitivity
BDR<0.1%BERat‐70dBm
EDR<0.007%BERat‐70dBm
Temperature&
Humidity
NormalTestCondition:25+/‐2deg.C,65+/‐2%RH
Operating:‐10to70deg.C
Storage:‐40to85deg.C
OperatingVoltage 3.3V±10%I/Osupplyvoltage
PowerConsumption 165mW.max
AntennaType PrintedAntenna(0.24dBi)


LiteOn WB116A Specifications

General

Brand	LiteOn
Model	WB116A
Category	Computer Hardware
Language	English
