16

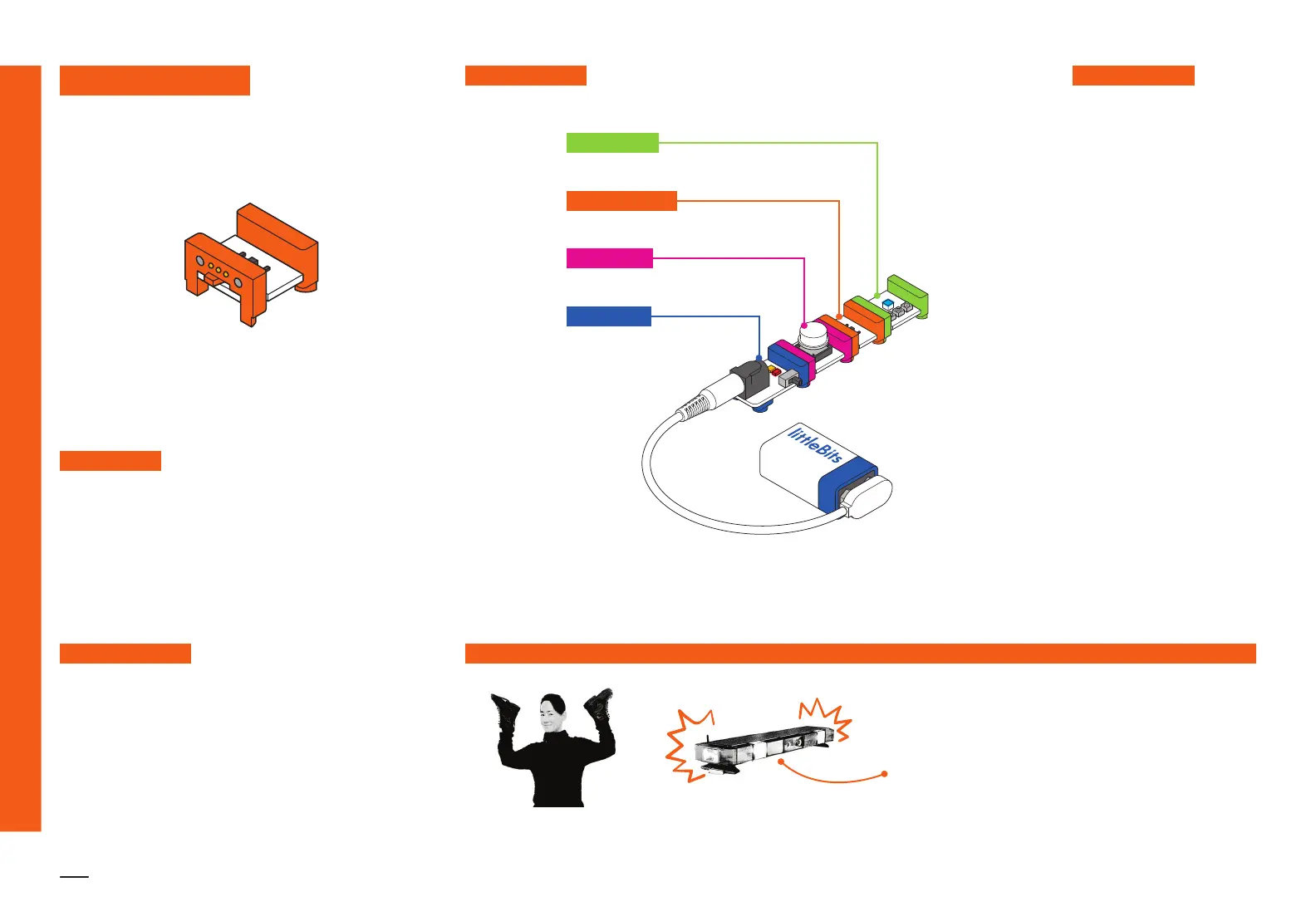

MEET THE BIT
w10 INVERTER
The inverter is an example of a logic Bit. It sends out the
opposite of whatever it receives: send it an on signal,
and the inverter changes it to an o ff signal, or vice versa.
Would you like a button that turns things o ff instead of on?
Try the inverter.
Anytime the inverter receives
a signal lower than 50%
power (2.5 volts) the inverter
sends full power (5 volts) to
the next Bit in the circuit.
If the inverter receives a sig-
nal greater than 2.5 volts,
the inverter sends 0 volts to
the next Bit in the circuit.
OPPOSITE DAY
ALTERNATING
POLICE LIGHTS
p1 POWER
i3 BUTTON
w10 INVERTER
o3 RGB LED
MINI-CHALLENGE
Can you invent something with the inverter that alerts you if
someone takes a book o the table?
T
i
s
:
p
o
w
e
r
,
p
u
l
s
e
,
l
i
g
h
t
,
i
n
r
t
e
r
,
l
i
g
h
t
.
REAL WORLD ANALOGIES
SAMPLE CIRCUIT HOW IT WORKS
