Littlebits STEAM STUDENT SET - Page 57

55
a1 - battery & cable
p1 - power
i13 - light sensor
i16 - pulse
o6 - buzzer
a6 - hook & loop shoes
a1 - battery & cable
p1 - power
i13 - light sensor
i16 - pulse
o6 - buzzer
a6 - hook & loop shoes
a1 - battery & cable
p1 - power
i13 - light sensor
i16 - pulse
o6 - buzzer
a6 - hook & loop shoes

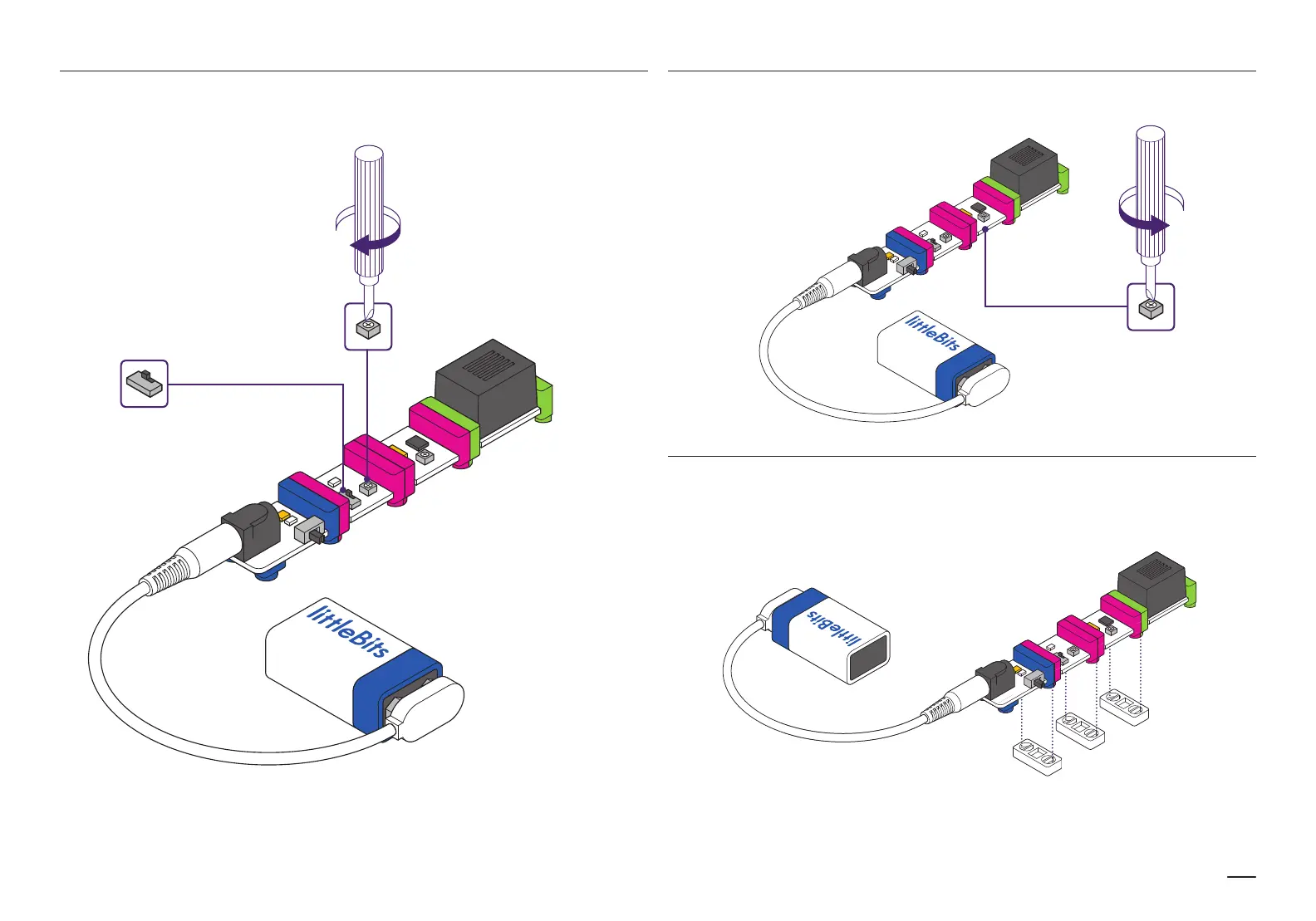

SET THE MODE AND SENSITIVITY OF THE LIGHT SENSOR.
2
SET THE PULSE SPEED TO THE SLOWEST SETTING.
PRESS HOOK & LOOP SHOES ONTO YOUR CIRCUIT.
3
4
MODE:
LIGHT
SENSITIVITY:
FULLY CLOCKWISE
i12 temp.
sensor:
Fahrenheit
mode
i13 light
sensor:
light mode
o11 servo:
swing mode
SPEED: "–"
FULLY COUNTER-
CLOCKWISE
