7
7000INST Copyright Lockmasters, Inc. 5/25/11

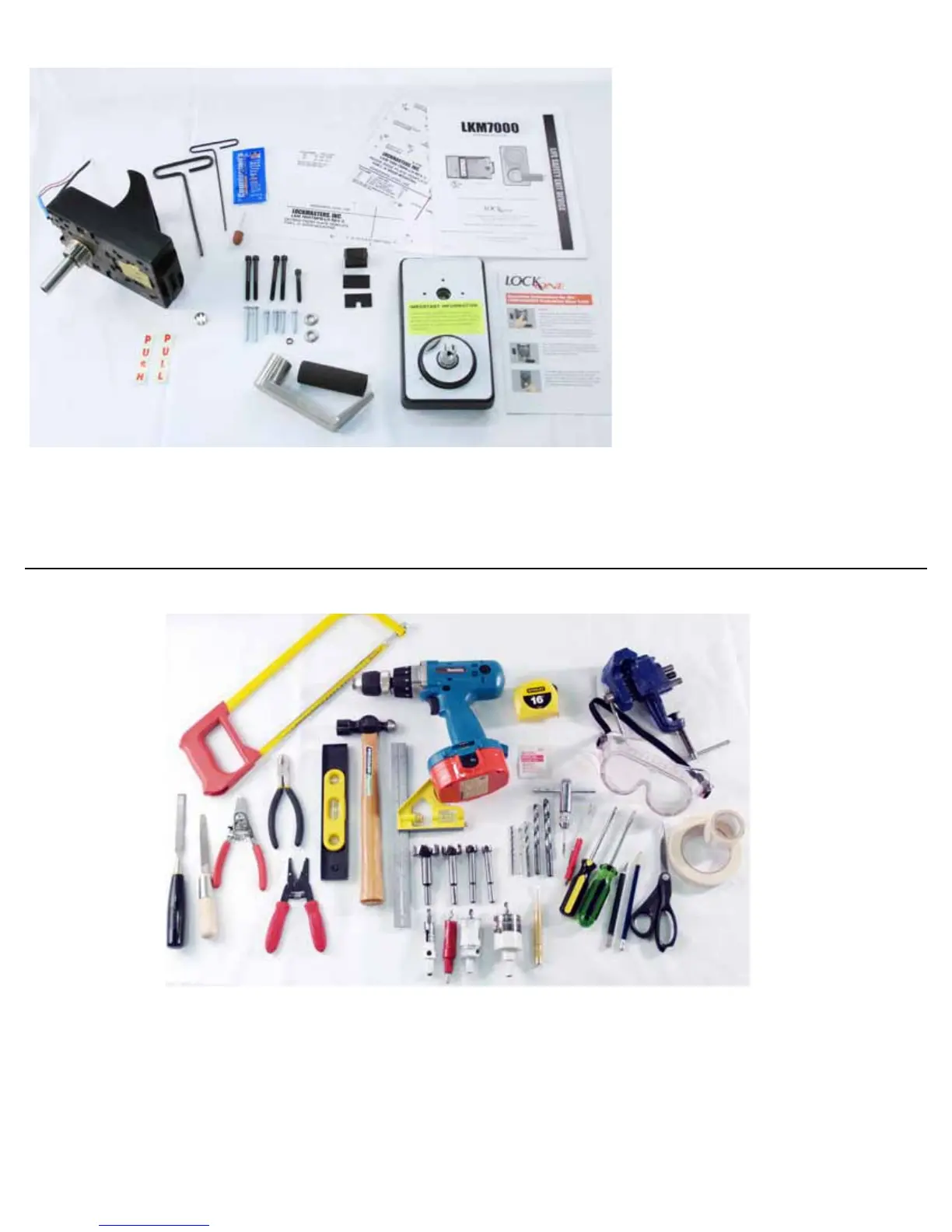

LKM7000 Main Components
A. Front Plate (FP)
B. Lever Handle
C. Inside Base Plate (IBP)
D. Wire Routing Box
E. 1/4”-20x 2 1/2” Socket Head
Machine Screws (4)
F. 1/4” Phillips Head Thread Forming
Screws (4)
G. 1/4”-20x1 3/4” Socket Head Machine
Screw & Washer (1)
H. 1/4”-20x1 3/4” Flat Head Phillips
Machine Screws & Finishing
Washer (2)
I. Push & Pull Decal
J. Lever Handle Grip
K. Debur Stone
L. 3/32” & 3/16” Hex Head Wrenches
M. Liquid Thread Locker
N. Change Key Hole Plug
O. Filler Blocks (2)
P. Templates
Q. Installation Instructions
R. Operating Instructions
LKM7000 Installation - Tools Needed
Drill
Wire Cutters or Strippers
Snap Ring Pliers
File
Chisel
Hack Saw
Center Punch (Automatic)
10-24 Tap & Tap Handle
Hammer
Small Pocket Screwdriver
Phillips & Flat Screwdrivers
Level & Combination Square
Tape Measure
Vise
Masking & Double Sided Tape
Scissors & Exacto Knife
1/8” Drill Bit
3/16” Drill Bit
5/16” Drill Bit
3/8” Drill Bit
5/8” Wood Cutting Bit
5/8” Hole Saw
3/4” Wood Cutting Bit
3/4” Hole Saw
1 5/8” Wood Cutting Bit
1 5/8” Hole Saw
13/64” Drill Bit
#25 Drill Bit
Safety Goggles
Rubbing Alcohol
B
A
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
