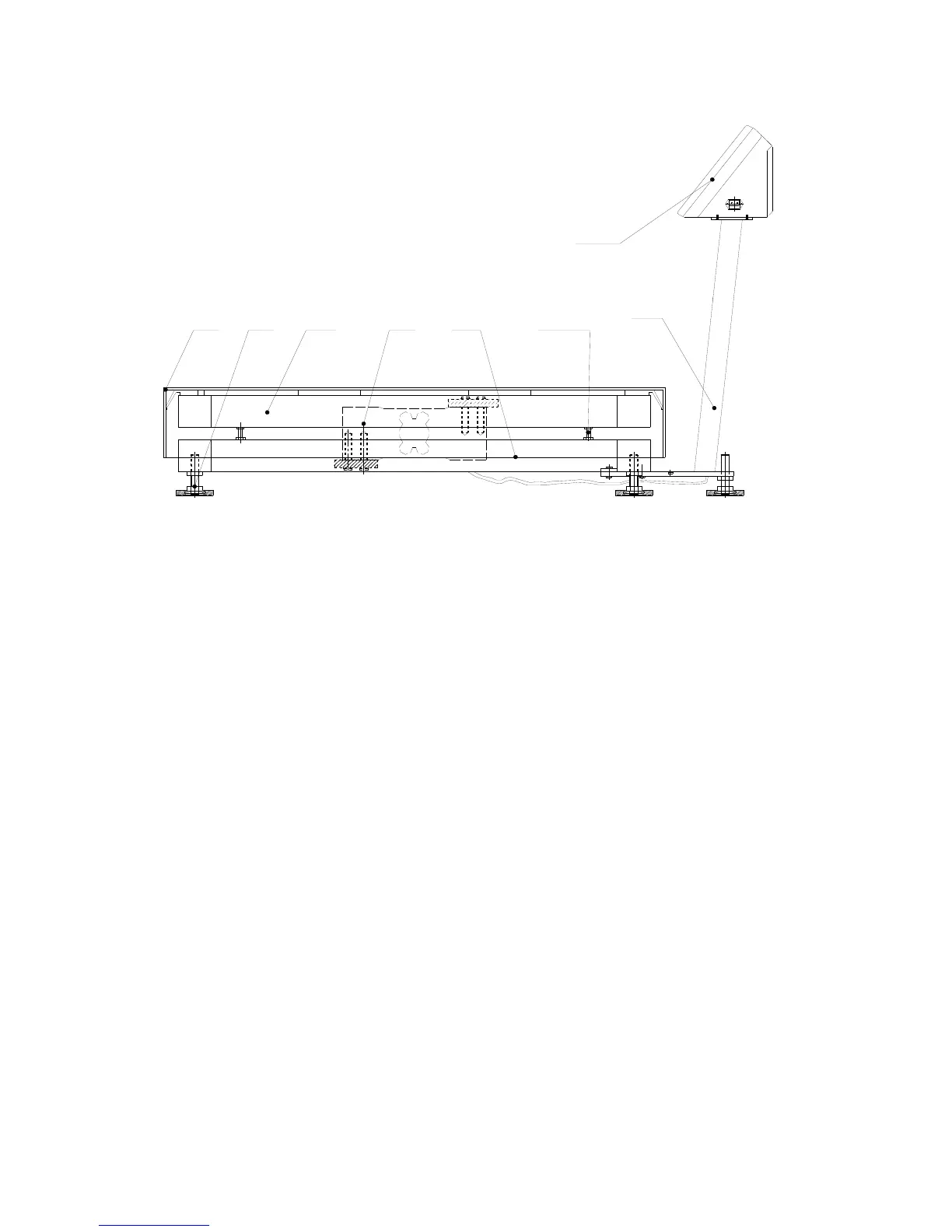

Pic.2 LP7611/7612 Series Bench Scale Structure
2.2 Installation Instruction
Installation:
1. Take off the cover. Keep the bench scale stable on the floor and Adjust the 4 feet to center the
Bubble
2. Adjust the 4 limiting bolt to make the distance between the upper and under plate 2-3mm
3. Use the bolt to install the column bracket under the plate. Then insert the column into the
Bracket.
4. Put the load cell go through the column and bracket. And fasten the column by bolt ( pls. note
The bolt not on the cable) , then insert the cable plug into the connector jack according to the
Indicator manual.
5. Install the indicator to the column. And put the extra cable into the column.
6. The calibration is finished before shipment.
1. PAN
2 FEET
3. UPPER PLATE
4. LOAD CELL
5. UNDER PLATE
6. LIMITING BOLT
7. COLUMN
8. WEIGHING INDICATOR
