10
Heating elements

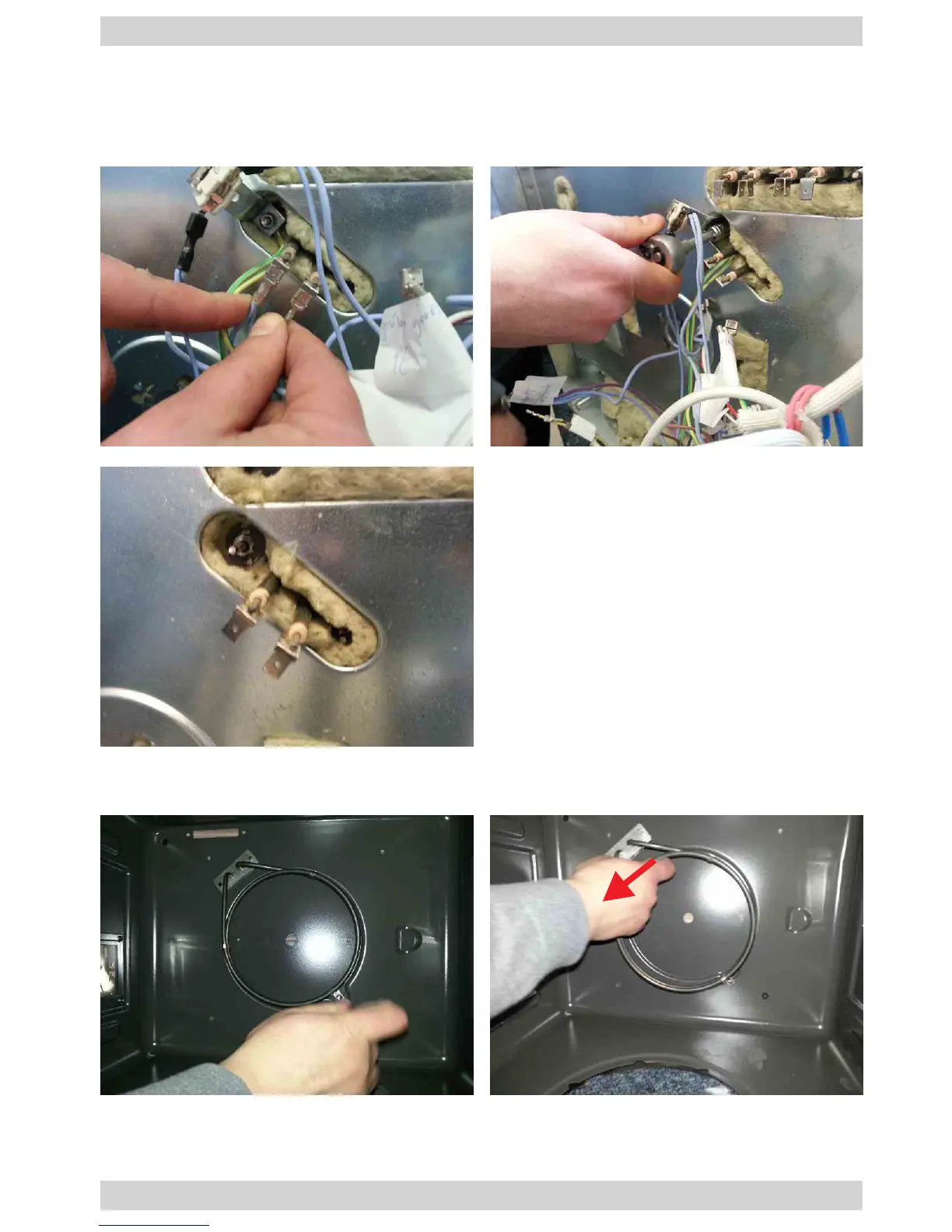

1. Remove the rear wall and the fan guard according to relevant instructions in the
manual. Disconnect the wiring harness from the convection fan heater. Using a
socket head wrench undo and remove the nut securing the heater assembly.
Remove the convection heater
3. To reassemble the components follow the above steps in reverse order.
2. Inside the oven chamber, remove the screw securing the heater and pull the
heater toward yourself.
