Logitech LIGHTSPEED G304 - LED Indicator and G HUB Software

7 ENGLISH

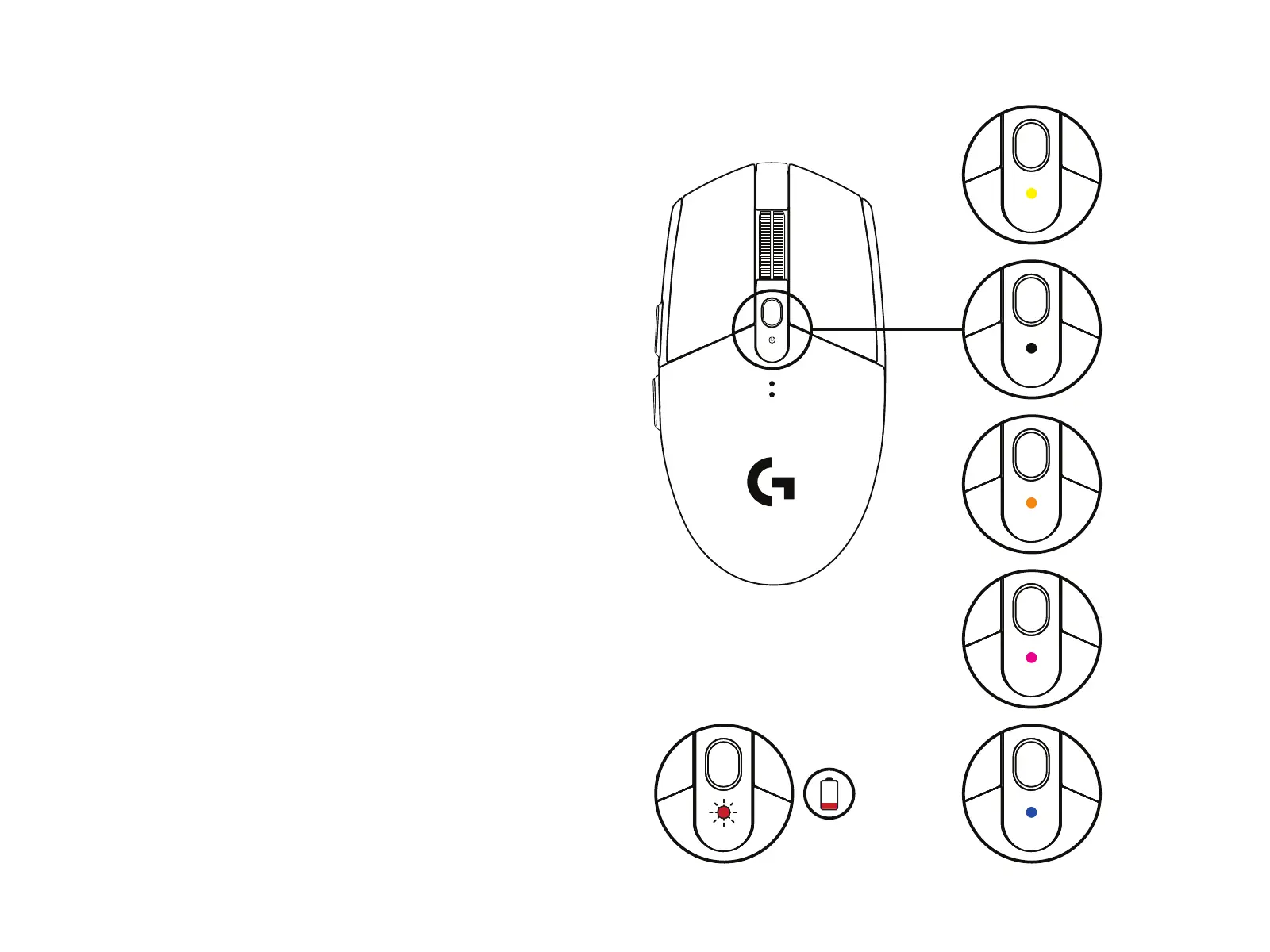

LED INDICATOR
Battery life
Flashing red: battery <15%
DPI
Yellow: step 1 - 400 DPI
White: step 2 - 800 DPI (default)
Orange: step 3 - 1600 DPI
Magenta: step 4 - 3200 DPI
Blue: step 5 - 6400 DPI (Step 5 can be activated viasoftwareonly)
Mode
Cyan: performance mode (default)
Green: endurance mode (can be activated viasoftwareonly).
Tips:
- Activating endurance mode will degrade tracking performance
but improve battery life.
G HUB SOFTWARE
You can customize the onboard prole settings using theGHUB.
These settings include button programming, report rate,
performance/endurance modes andtracking behavior.
G304 / G305 allows up to 5 DPI settings.
By default, G304 / G305 has the following settings:
- DPI: 400/800/1600/3200
- Report rate: 1ms
- Performance mode
