English
Help with setup:
Mouse not working
• Is the mouse powered on?
• Is the Unifying receiver securely
plugged into a computer USB port?
Try changing USB ports.
• If the Unifying receiver is plugged into
a USB hub, try plugging it directly into
a USB port on your computer.
• Did you pull the battery tab on
the mouse? Check the orientation
of the battery inside the mouse.
Replace the battery if necessary.
The mouse uses one AA alkaline
battery.
• Remove metallic objects between
the mouse and the Unifying receiver.
• Try moving the Unifying receiver to
a USB port closer to the mouse.
• Try reconnecting the mouse and
Unifying receiver using the Logitech
Unifying software. (Refer to the
Unifying section in this guide.)
简体中文
设置帮助：鼠标不工作
• 鼠标是否已接通电源？
• Unifying 接收器是否已牢固插入电脑
的 USB 端口？尝试更换 USB 端口。
• 如果 Unifying 接收器已插入 USB 集
线器，则尝试将其直接插入电脑的 USB
端口。
• 您是否拉出了鼠标上的电池标签？检查
鼠标内的电池方向。如有必要，请更换
电池。本鼠标使用一节 AA 碱性电池。
• 移除鼠标和 Unifying 接收器之间的金
属物体。
• 尝试将 Unifying 接收器移至离鼠标较
近的 USB 端口。
• 尝试使用罗技 Unifying 软件重新连接
鼠标和 Unifying 接收器。（请参考此
指南的 Unifying 部分。）
English
The Logitech® Unifying receiver
Plug it. Forget it. Add to it.
Your new Logitech product ships with a Logitech Unifying
receiver. Did you know you can add a compatible Logitech
wireless device that uses the same receiver as your current
Logitech Unifying product?
Are you Unifying-ready?
If you have a Logitech wireless device that’s Unifying-ready,
you can pair it with additional Unifying devices. Just look for
the orange Unifying logo on the new device or its packaging.
Build your ideal combo. Add something. Replace something.
It’s easy, and you’ll use only one USB port for up to six devices.
Getting started is easy
If you’re ready to pair your device(s) via Unifying, here’s what
you need to do:
1. Make sure your Unifying receiver is plugged in.
2. If you haven’t already, download the Logitech Unifying
software from www.logitech.com/unifying.
3. Start the Unifying software* and follow the onscreen
instructions to pair the new wireless device with your existing
Unifying receiver.
*Go to Start / All Programs / Logitech / Unifying /
Logitech Unifying Software
简体中文
罗技 Unifying 接收器
随插即忘、一联百通。
全新的罗技产品将随附 Unifying 接收器。您知道吗，您可以将
兼容的罗技无线设备添加到现有罗技 Unifying 产品正在使用的
接收器上。
您已准备好开始使用 Unifying 了吗？
如果您有可以使用 Unifying 的罗技无线设备，您可以将该设
备与其他 Unifying 设备配对使用。只需确认新设备或其包装
上有橙色的 Unifying 徽标。打造您的理想组合。添加设备。
替换设备。这很简单，而且您只需一个 USB 端口就可连接多
达六个设备。
简单入门
如果您已准备好通过 Unifying 配对使用您的设备，您需要：
1. 确认已插入 Unifying 接收器。
2. 如果您还没有下载 Logitech Unifying 软件，请访问
www.logitech.com/unifying 下载该软件。
3. 启动 Logitech Unifying 软件*并按照屏幕上的说明进行操作，
将新的设备与现有的 Unifying 接收器配对。
*依次单击“开始”/“所有程序”/“罗技”/“Unifying”/
“罗技 Unifying 软件”
www.logitech.com/support
English

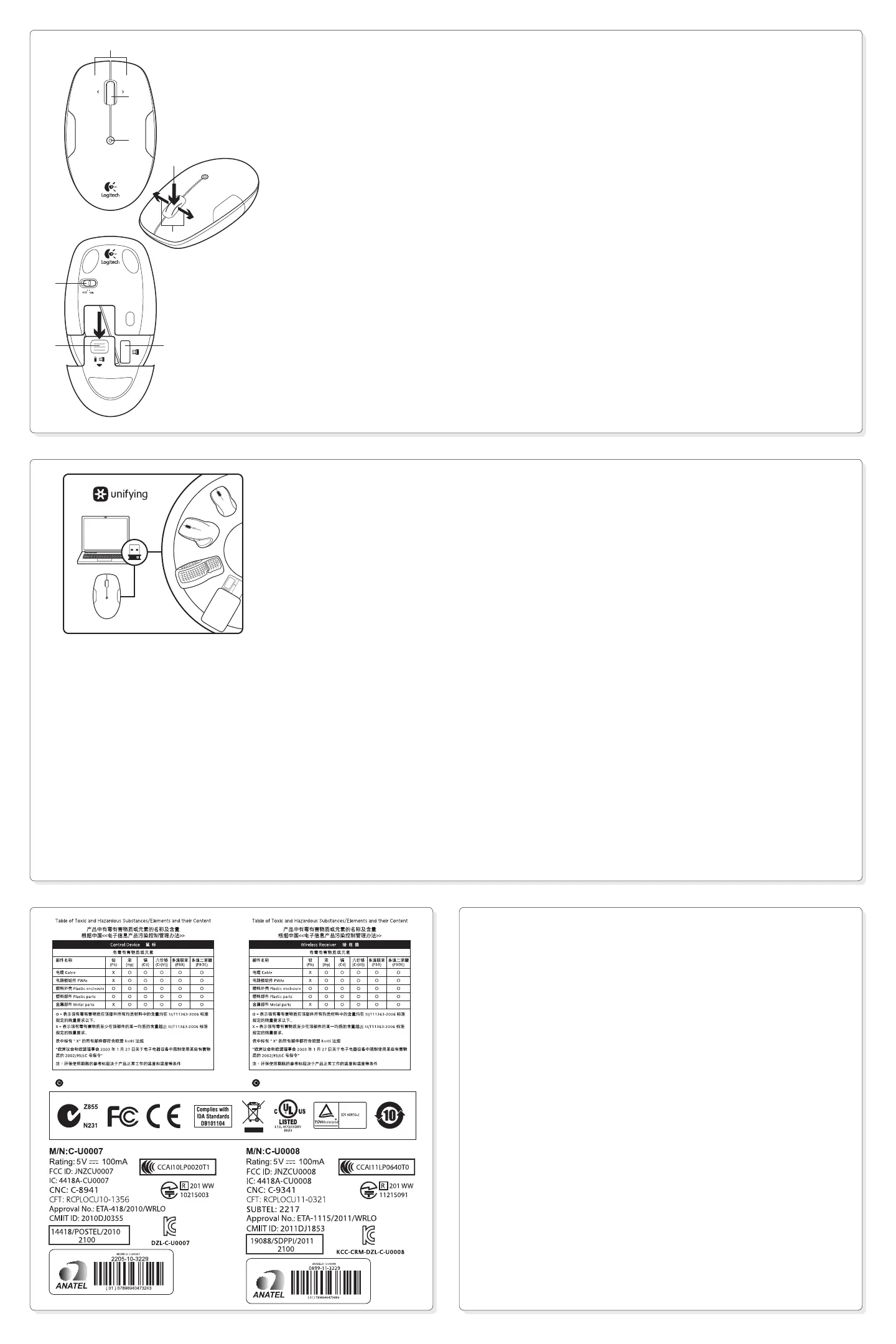

Mouse features
1. Left and right mouse buttons
2. Precision scroll wheel
1
3. Middle button—The function of this button depends on
your operating system and the application being used.
For example, if you are browsing the Internet in Windows®
and click on a link using the Middle button, typically the link
opens in a new tab.
4. Internet back/forward—Tilt the scroll wheel right to move
forward one page. Tilt the scroll wheel left to move back
one page.
2
5. Battery LED—flashes red when battery power is low
6. On/O slider switch
7. Battery door release
8. Unifying receiver storage
1
For increased scrolling smoothness in Windows only, download the
Logitech SetPoint Software for Windows from www.logitech.com/
downloads.
2
On a Mac® the Internet back/forward feature is not supported. You can
assign Dashboard®, Exposé®, or Spaces® to the tilt wheel feature using
System Preferences.
简体中文
鼠标功能
1. 左/右鼠标按键
2. 精准滚轮
1
3. 中键 — 此键的功能取决于您的操作系统和所使用的应
用程序。例如，如果您在 Windows® 系统中浏览网页并
使用“中键”单击链接，则链接通常会在新的标签中打开。
4. 网页后退/前进 — 向右倾斜滚轮可前进一页。向左倾斜滚轮
可后退一页。
2
5. 电池 LED 指示灯 — 电池电量不足时呈红色闪烁
6. 开启/关闭滑动开关
7. 电池盖释放
8. Unifying 接收器的收存
1
如要提升滚轮平滑度（仅适用于 Windows），请从 www.logitech.com/
downloads 下载适用于 Windows 的罗技 SetPoint 软件。
2
在 Mac® 系统中，不支持网页后退/前进功能。可在“系统偏好设置”
中为倾斜滚轮功能分配 Dashboard®、Exposé®、或 Spaces® 功能。
2
1
3
4
5
8
7
6
