Logitech Z130 Complete Setup Guide

English 4

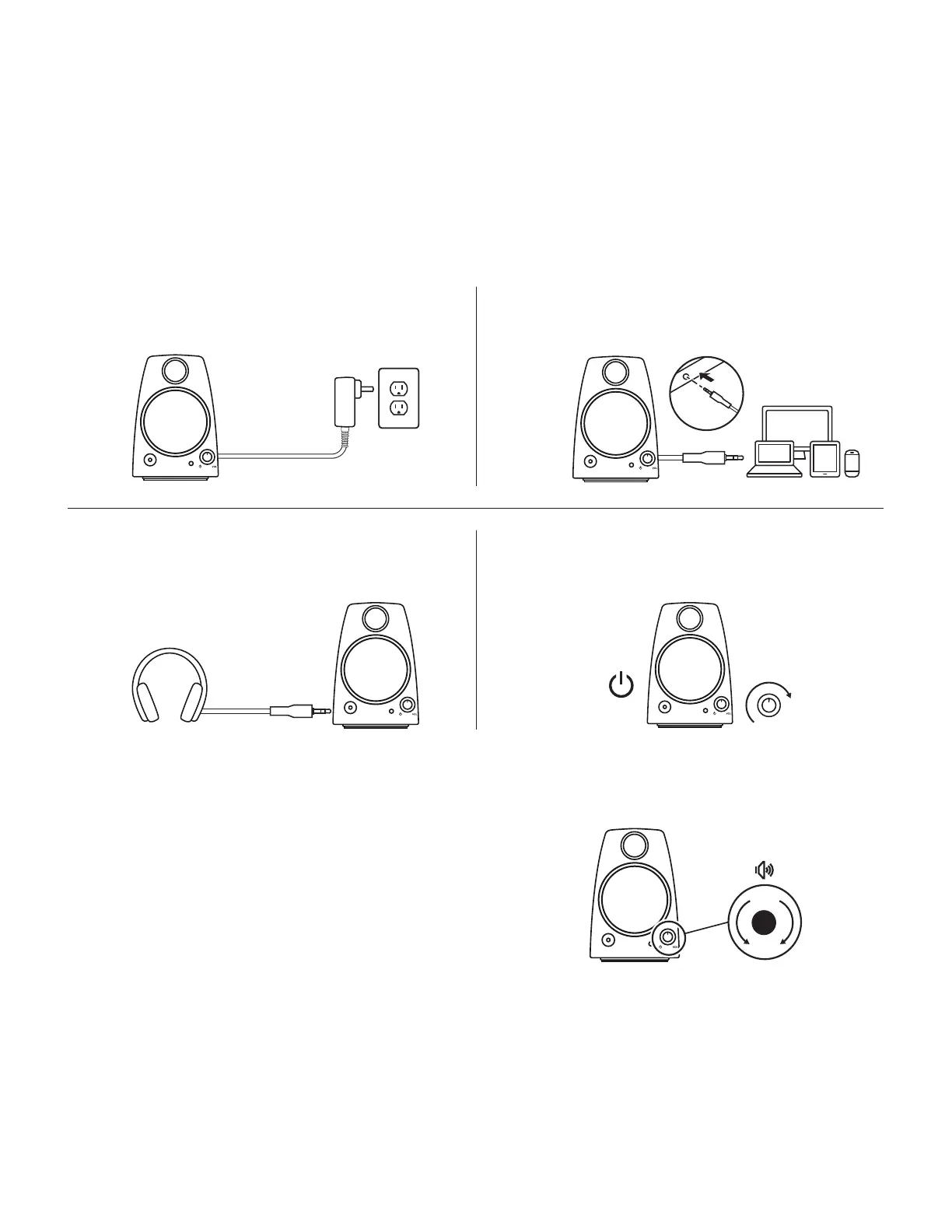

CONNECT THE SPEAKERS
1. Connect the DC power plug to the back of your right speaker and connect your AC adapter to the electrical outlet.
2. Connect to the 3.5 mm audio jack on your source device using the attached 3.5 mm auxiliary input on the right speaker.
3. (Optional) Connect your headphones to the headphone jack on the front of the right speaker.
4. Turn the speaker on using the power knob.
3.5mm
2
4
1
3
ADJUST THE VOLUME
Increase (or decrease) the speakers volume by rotating
the control knob clockwise (counter-clockwise)
ontheright speaker.
+-
© 2019 Logitech. Logitech, Logi and other Logitech marks are owned by Logitech and may
be registered. All other trademarks are the property of their respective owners. Logitech
assumes no responsibility for any errors that may appear in this manual. Information
contained herein is subject to change without notice.

Logitech Z130 Specifications

General

Tweeter	Yes
Speaker type	-
Number of drivers	2
Speaker placement	Tabletop/bookshelf
Audio output channels	2.0 channels
Impedance	- Ω
Frequency range	- Hz
RMS rated power	5 W
Speakers RMS power	2.5 W
Product color	Black
Volume control	Rotary
Recommended usage	PC
Bluetooth	No
Headphone outputs	1
Headphone connectivity	3.5 mm
Connectivity technology	Wired
Suitable for use in country/location	Europe
Power plug type	Type C
Power source type	AC
Master (outer) case width	237 mm
Master (outer) case height	313 mm
Master (outer) case length	266 mm
Master (outer) case weight	4225 g
Harmonized System (HS) code	85182200
Package type	Box
Package depth	227 mm
Package width	127 mm
Package height	149.22 mm
Package weight	988.8 g
Cables included	AC, Audio (3.5mm)
Quantity per pack	2 pc(s)

Weight and Dimensions

Depth	110.3 mm
Width	100.6 mm
Height	141.7 mm
Weight	585 g
Cord length	1.8 m
