Logitech Z625 User Manual

English 5

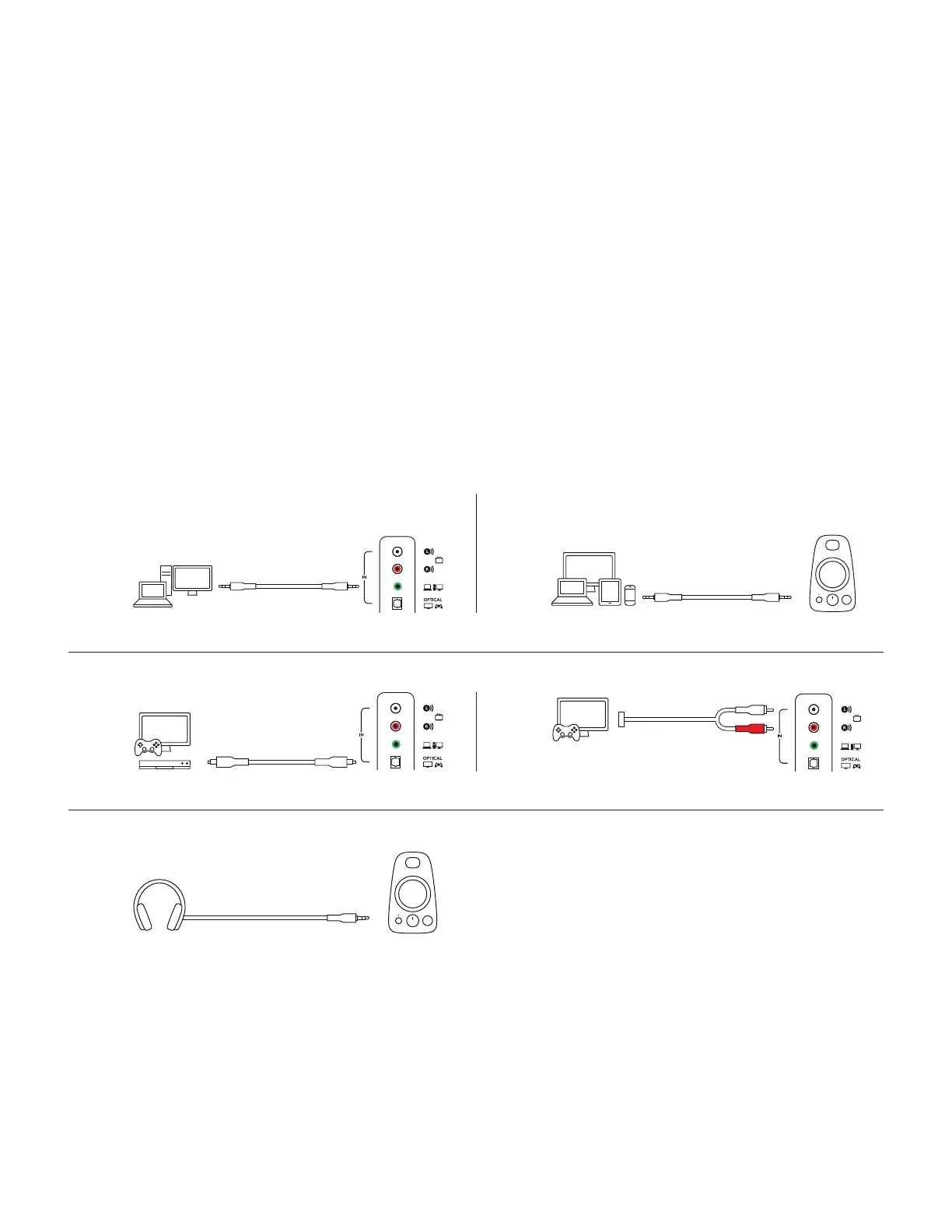

CONNECT TO AUDIO SOURCE
1A. Using a 3.5 mm cable:
Connect one end of the provided 3.5 mm cable to the auxiliary input jack on the back
ofthesubwoofer and the other end to the 3.5 mm jack on your device.
1B. Connect one end of the provided 3.5 mm cable to the auxiliary input jack on the right satellite
and the other end to the 3.5 mm jack on your device.
2. Using an optical cable:
Connect one end of the provided optical cable to the optical input on the back
ofthesubwoofer and the other end to your gaming console.
3. Using a RCA cable:
Connect one end of the RCA cable to the corresponding RCA jack on the back
ofthesubwoofer and the other end to the RCA outlet your device.
NOTE: The RCA cable is not included in the box and must be purchased separately.
4. Plug your headphones into the headphone jack on the right speaker. To adjust the volume
ofyour headphones, use the volume control knob on the front of the right speaker.
1A
2
4
3
1B

Logitech Z625 Specifications

General

Product color	Black
Volume control	Rotary
RMS rated power	200 W
Recommended usage	Universal
Audio output channels	2.1 channels
Satellite speaker type	-
Satellite speaker weight	850 g
Number of satellite speakers	2
Satellite speakers RMS power	35 W
Satellite speaker dimensions (WxDxH)	116 x 124 x 195 mm
Front speaker dimensions (WxDxH)	116 x 135 x 195 mm
Bass adjustment	Yes
Subwoofer weight	6400 g
Subwoofer dimensions (WxDxH)	303 x 264 x 282 mm
Bluetooth	No
Headphone outputs	1
Headphone connectivity	3.5 mm
Connectivity technology	Wired
Cables included	Audio (3.5mm), Optical
Power source	AC
Power plug type	Type C
Master (outer) case width	320 mm
Master (outer) case height	335 mm
Master (outer) case length	440 mm
Master (outer) case weight	9600 g
Harmonized System (HS) code	85182200
Package type	Box
Package depth	311 mm
Package width	302 mm
Package height	421 mm
Package weight	9300 g
