USING THE SMART-SPLITTER
Read the safety instructions
and use required protective
equipment.
WOOD SPLITTING*
1. Lift the axe by its handle and place
the log under the edge of the axe.
2. Take hold of the hammer. Keep
both your hands within the grip
area on the thickest part of the
hammer (see illustration on p.2).
3. Lift the hammer and throw it
down. Let the hammer go in
good time before it hits the axe. If
necessary, you repeat step 3 until
the axe has split the log.
SPLITTING SPLINTERS
1. Place the piece of wood under the
splinter knife.
2. Lift the hammer with both hands
and throw the hammer down
towards the axe.
DISLODGING THE AXE
If the axe stops in the log without
splitting it, it can get stuck in the log.
1. Take hold of the hammer with
both hands.
2. With both hands, strike the
hammer against the stop nut on
the guide rod until the axe come

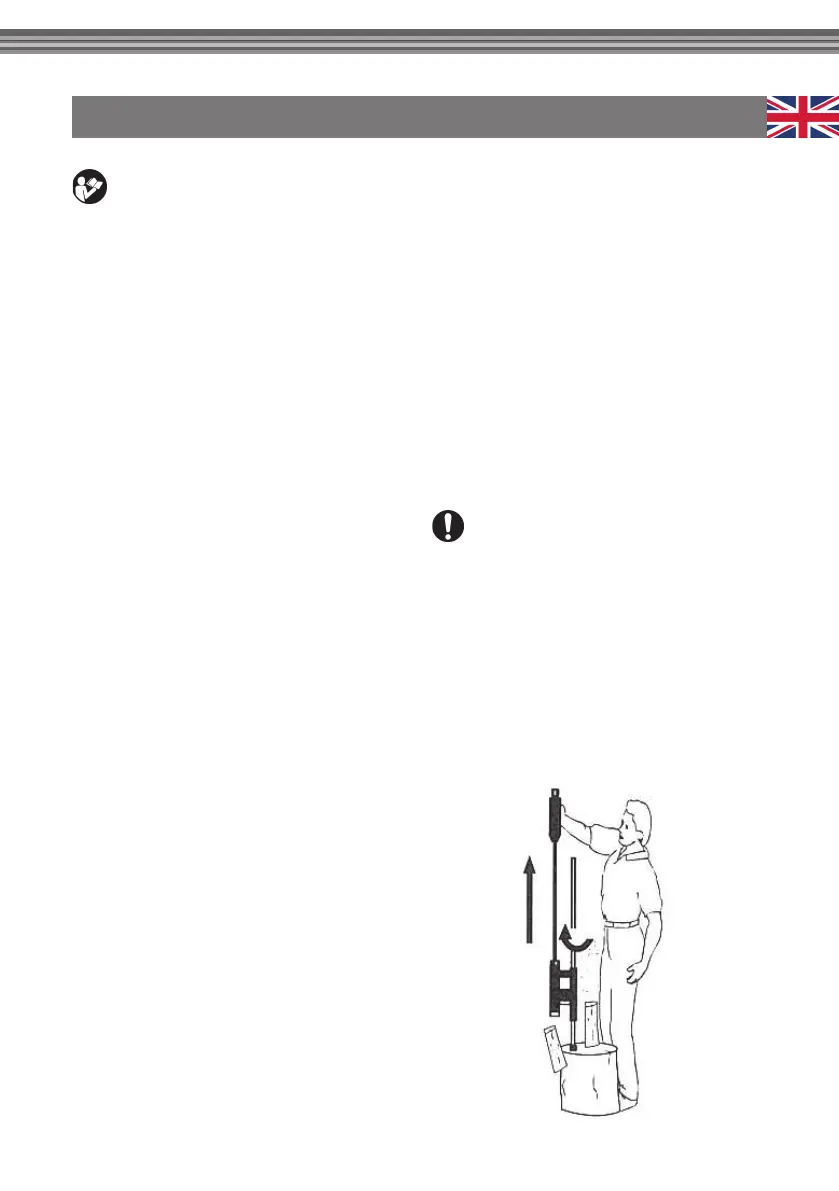

loose. TIP: If you cannot reach
all the way up, turn the axe and
the log 180 degrees to make the
log fall down from the chopping
block. This way, the hammer
guide rod will be lowered too (see
illustration below).
IMPORTANT: The plastic bushing
is a wear part that has to be
replaced after a period of use.
Never use the Smart-Splitter
without a plastic bushing, since
this will result in high noise and
damage the axe.
*See illustration on p.10.
Please read and understand this Manual
before using the Smart-Splitter
Inside the box, you should nd the following parts (see g.1): -a plastic washer
banded between metal washers (9); -a supporting rod (7); -the splitter device (5/15); -a rod
(2): -the striking weight (1); -the stop nut (12); -a white plastic washer (3); and a xation
bolt (4). If any of these parts are missing,
DO NOT USE THE SPLITTER and contact
your Dealer to obtain the missing part(s). Inside the box, you will also nd a 20mm drill bit
and a wrench to tighten the xation bolt. These items are provided for your convenience.
The Smart-Splitter is a patented product that was invented in Sweden. A product from:
AGMA AB, Sweden. Tel: +46 90 13 86 50 Fax: +46 90 13 86 51 www.agma.com
The North American Importer for Smart-Splitter and Smart-Holder is:
Lucky Distributing, Inc. 4859 N Lagoon Ave. Portland, OR 97217 USA
Tel: 800-777-5526 Fax: 800-777-7069 www.luckydistributing.com
The Splitter requires no maintenance. If the Splitter is used to cut wood as instructed, there is no need to
sharpen the cutting edge and splintering edge. When you are not using the Splitter, store it in a safe place,
away from children. Do not use the Splitter when the outside temperature is below -20 C (-4 F). To protect
against corrosion, you must add 4 drops of oil inside the splitting wedge every three months
.
Maintenance and Storage
email: smart@luckydistributing.com v1/9
