Operating Instructions
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
Engine Operation
Inspect engine and equipment looking
for damaged, loose, and missing
parts before set up and starting.
If any problems are found, do not use
HTXLSPHQWXQWLO¿[HGSURSHUO\
Start Procedure
Before starting the engine:
a. Follow the Set Up Instructions to
prepare the equipment. Follow all
instructions in the separate engine
manual provided with the engine.
b. Inspect the equipment and engine.
c. Fill the engine with the proper
amount and type of fuel and oil.
d. Read the Equipment Operation
section that follows.
1. Start and operate the engine according
to the provided engine manual.
2. Replacement engine operating instructions can
be obtained from the engine manufacturer.
Equipment Operation
1. Wear heavy-duty work gloves, ANSI-approved
goggles behind a full face shield, steel-toed
work boots, and a dust mask.
2. Operate only with assistance.
3. Fill the Water Tank with clean water.
4. 7KHPD[LPXPORJGLDPHWHUWKDWFDQEHFXWLVƎ
7KHPD[LPXPERDUGZLGWKWKDWFDQEHFXWLVƎ
7KHOXPEHUPXVWEHDWOHDVWƍƎORQJDQG
must rest on at least two Supports (81a, 90a)
to prevent instability.
5. Cut branches off the lumber to be
processed before milling.
6.
WARNING! To prevent death and
serious injury. Do not cut lumber containing
foreign objects (nails, metal, etc.).
7. Choose the Short Log Supports (91) or the Long Log
Supports (82) according to the lumber diameter.
8. Place the lumber to be cut on the Supports.
See picture below. Brace the lumber against
the Log Supports (82, 91) to prevent movement
during milling. The lumber should be positioned so
that the force of cutting holds it against the supports.

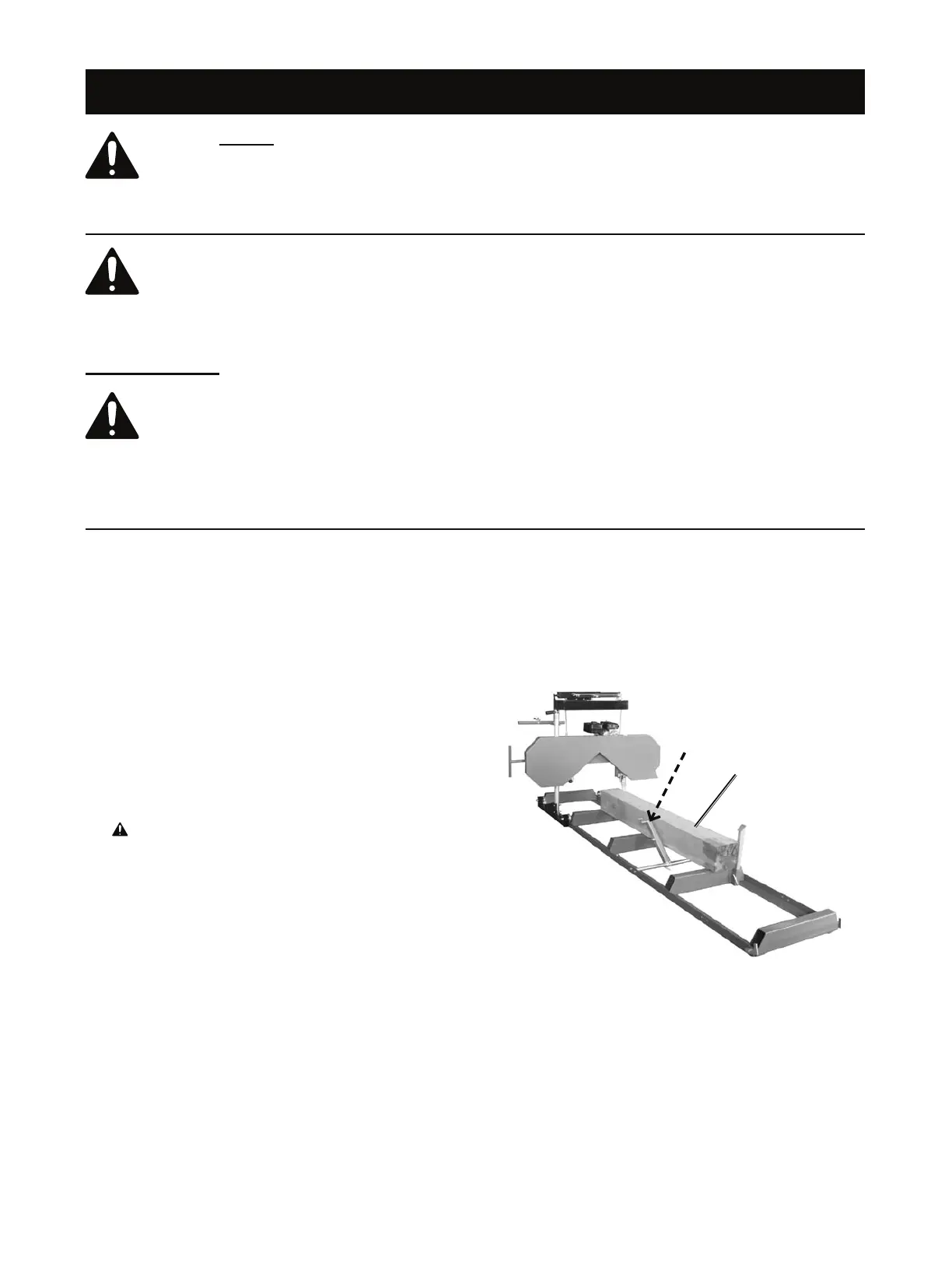

Figure R: Lumber Position
Lumber on
Supports
Clamp
Lumber
Here
9. Clamp the lumber in place against the Log
Supports (82, 91) using the Log Clamp (89) in
the location shown above. Position the Log
Clamp is below the level of the blade.
10. Tighten all Bolts and T-Handles on the Log
Clamp (89) and the Log Supports (82, 91). Verify
that they are securely in place before proceeding.
