13

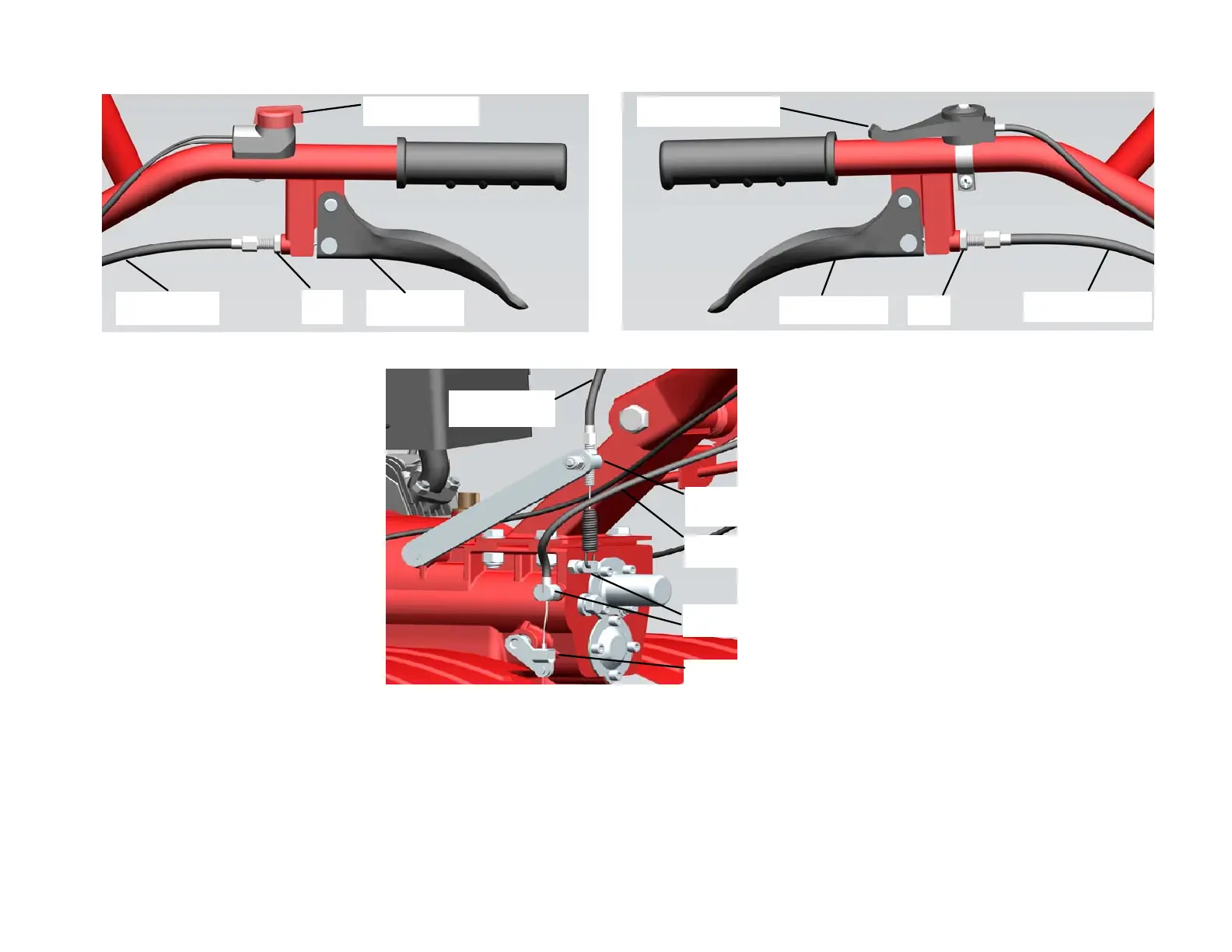

Figure 2 Figure 3
Figure 4
2. Adjustment of reverse cable (see Figure 3 and Figure 4)
1) Loosen the nut around the reverse cable.
2) Turn clockwise the screw until its exposed part from the handle pipe is of its shortest length.
Clutch cable
Supporting block
Reverse cable
Cable lug
Fork shaft
Reverse cable
Clutch cable
Nut
Nut
Reverse leve
r
Clutch lever
Throttle lever Engine switch
