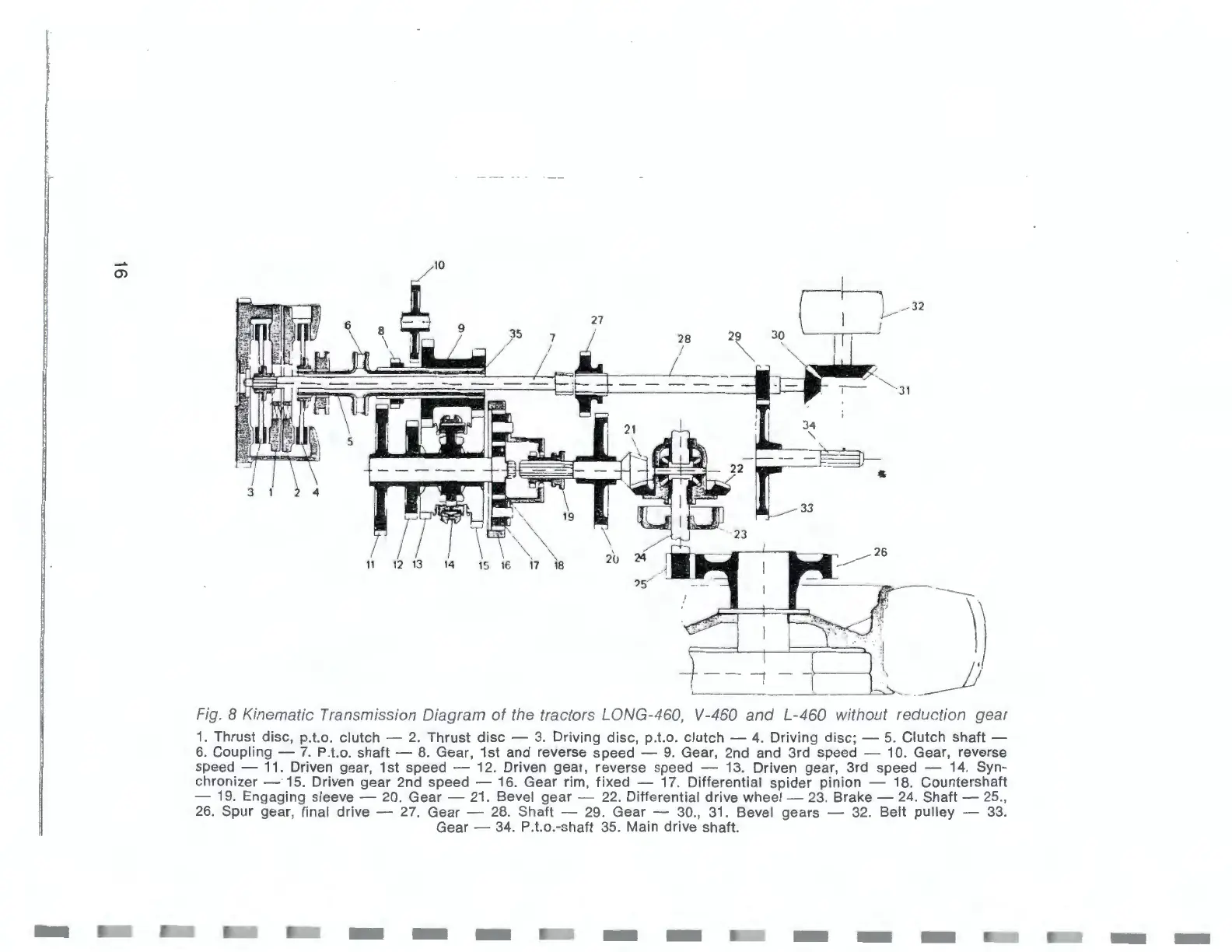

Fig. 8 Kinematic T ra ns mi ssion Diagram of the tr ac tors LO NG -460, V -46 0 a nd L -46 0 without reduc tion gear
1. Thrust disc , p.t.o. clutch - 2. Thrust disc - 3. Driving disc , p.t.o. clutch - 4. Driving disc; - 5. Clutch shaft -
6. Coupling - 7. P.t.o. shaft - 8. Gear, 1st and reverse speed - 9. Gear, 2nd and 3rd speed - 10. Gear , reverse
speed - 11. Driven gear,
1st speed - 12. Driven gear, reverse speed - 13. Driven gear, 3rd speed - 14. Syn-
chronizer - 15. Driven gear 2nd speed - 16. Gear rim, fi x ed - 17. Differential spider pinion - 18. Countershaft
- 19. En gaging sleeve - 20. Gear - 21 . Bevel gear - 22. Di ff erential drive whee l - 23. Brake - 24. Shaft - 25.,
26.
Spur gear , final driv e - 2 7. Gear - 28. Sha ft - 29. G ear - 3 0. , 31 . Bev el g ea rs - 32. Belt pulley - 33.
Gear - 34. P. t.o.-shaft 35. Main drive shaft.
