DVR Quick Start Guide 12 1002
P.
7

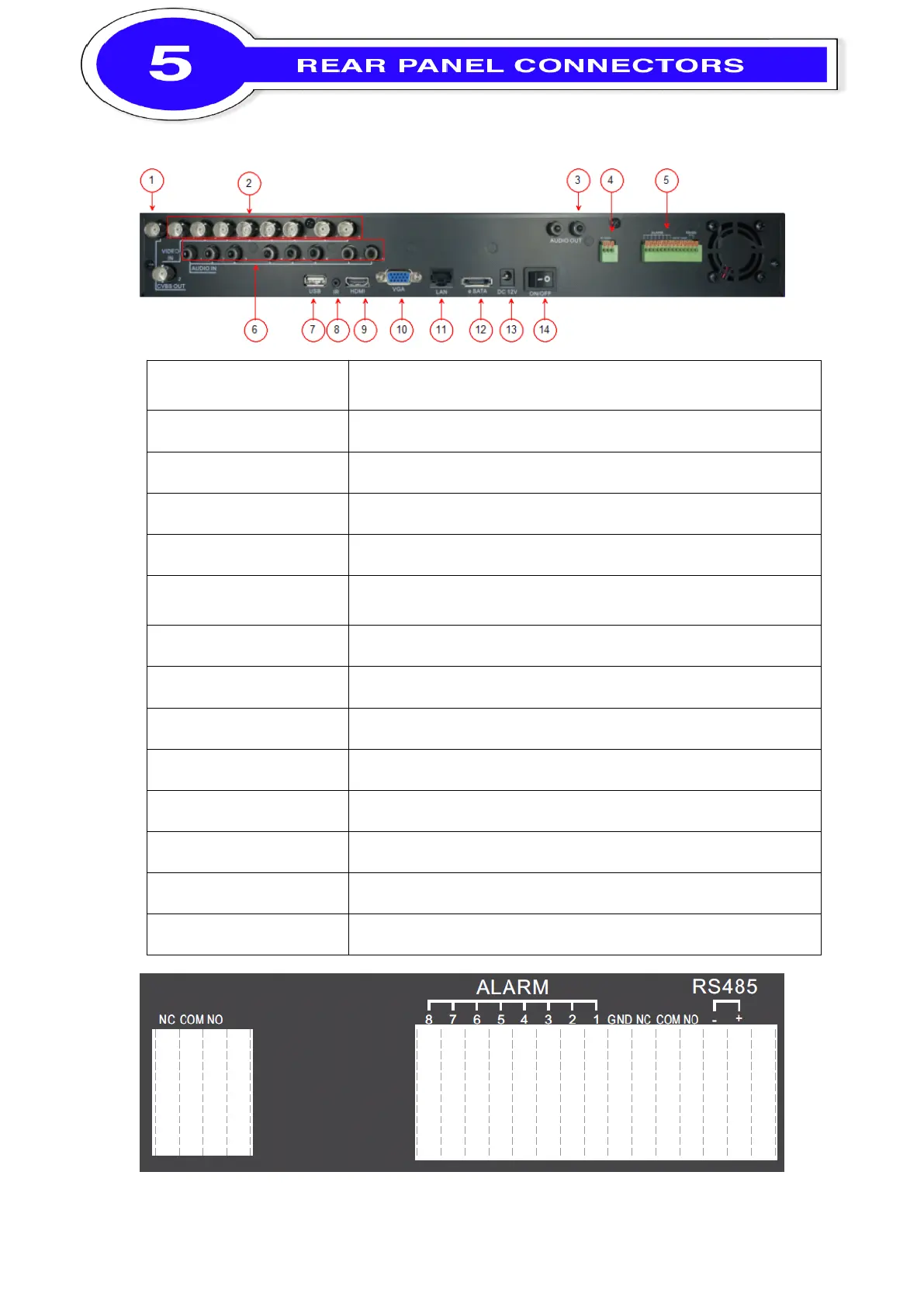

1. CVBS OUT
CVBS Video output port , 2 in total. One is the M ain CVBS output
and the other is the SPOT CVBS output.
2. VIDEO INPUT Video input port for camera s , 8 in total
3. AUDIO OUT RCA out put port for audio sign al , 2 in total
4. Relay-2 External I/O port and alarm input
5. EXTERNAL I/O External I/O port and alarm input
6. AUDIO IN PUT
Audio input port for video input, 4 in total. One can be assigned for
2-way audio
7. USB USB port
8. IR IR extension cable jack .
9. HDMI HDMI port
10. VGA VGA port
11. LAN Network port
12.
eSATA
External
SATA
port for expanding recording space
13. DC input DV 12V input
14. Power S/W Power Switch
