Remote Control (16 Channel)
Remote Control (16 Channel)

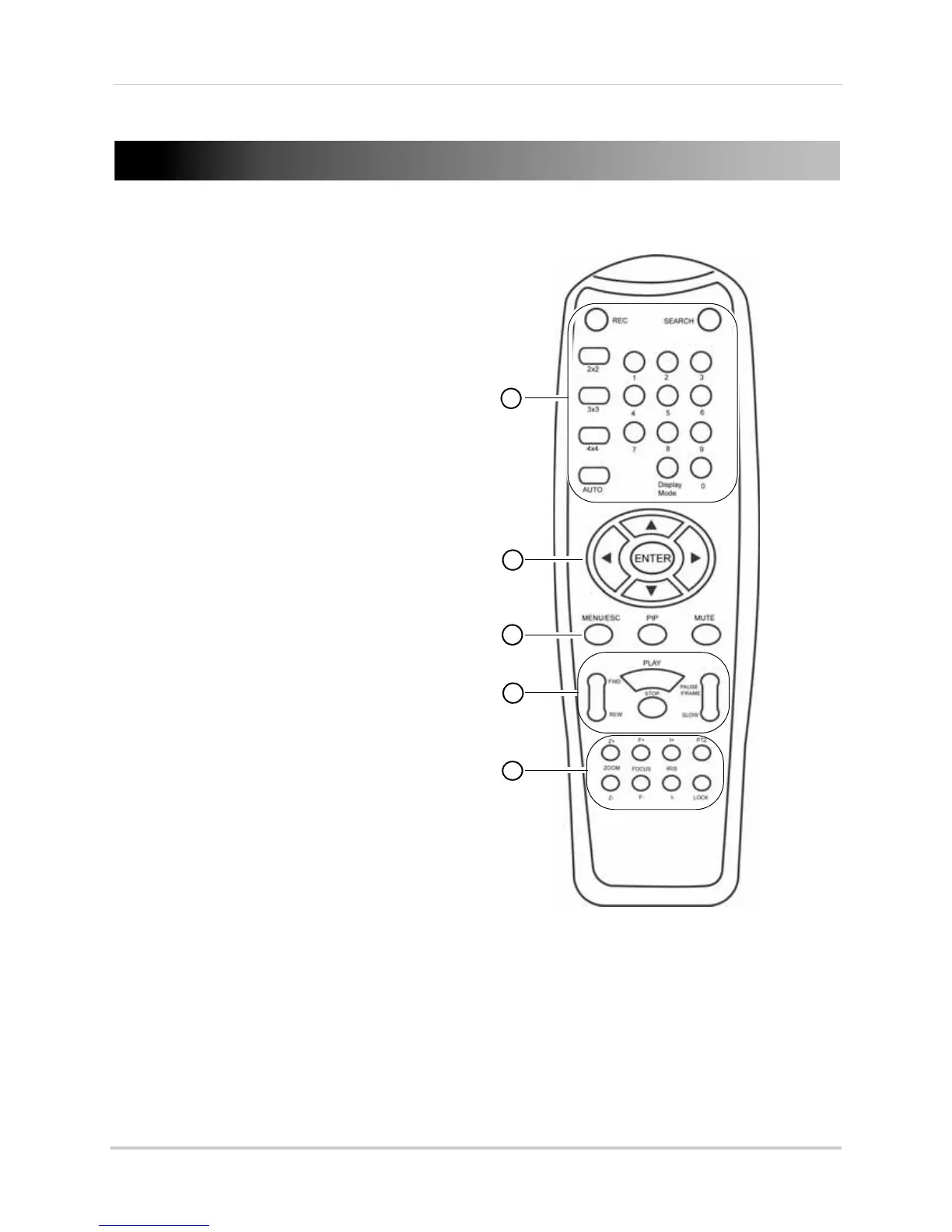

The remote control is the secondary input
device for navigating the system’s interface.
To use the remote control:
1 REC: Starts system recording.
• SEARCH:
Opens the Search menu.
• Number Keys (1 -0): Opens the desired
channel in full screen mode. Press 1+0 for
channel 10, 1+1 for channel 11 etc. Press
0 three times to change to BNC or VGA out.
• Display Mode: Press repeatedly to change
viewing modes (i.e. press once to swtich to
quad view (ch 1-4), press twice to view channel
5-8 etc.)
•
2x2 / 3x3 / 4x4 :Opens the window in grid
mode.
•
AUTO: Starts sequence view.
2 Navigation Cursors: Use the navigation
cursors to navigate the menu.
•
ENTER: Confirms the selection in the menu.
• Press to access System Information during live
view.
3 MENU/ESC: Opens the Sub menu. Within
menus, the MENU button is used to exit the
menu.
• PIP: Op
ens the picture-in-picture view.
• MUTE: Mutes audio channel during live
view and playback.
4 Playback Contr
ols:
•
FWD: During playback, press repeatedly to
increase playback speed
•
REW: During playback, press repeatedly to
increase reverse playback speed
•
PLAY:
• In live view, press to open the Record
Sear
ch Menu
• During playback, press to play video.
•
STOP: Press to stop recording.
• PAUSE/FRAME:
• Press to pause video during playback
• Press repeatedly to play frame by
frame duri
ng playback
1
2
3
4
5
5 PTZ Controls:
• Z+/Z- : Adjust camera Zoom.
• F+/F- : Adjust camera Focus.
• I+/I-: Adjust camera Iris.
• PTZ: Opens the PTZ menu.
• LOCK: Locks the system screen.
