Lotus Service Notes Introduction
ENGINE BAY UNDERTRAY/DIFFUSER
For certain service operations, it may by necessary to remove the engine bay undertray and/or diffuser
panel. The panels contribute to the aerodynamic performance of the car, and also help to keep the engine bay
clean. Do not run the car without the panels fitted.

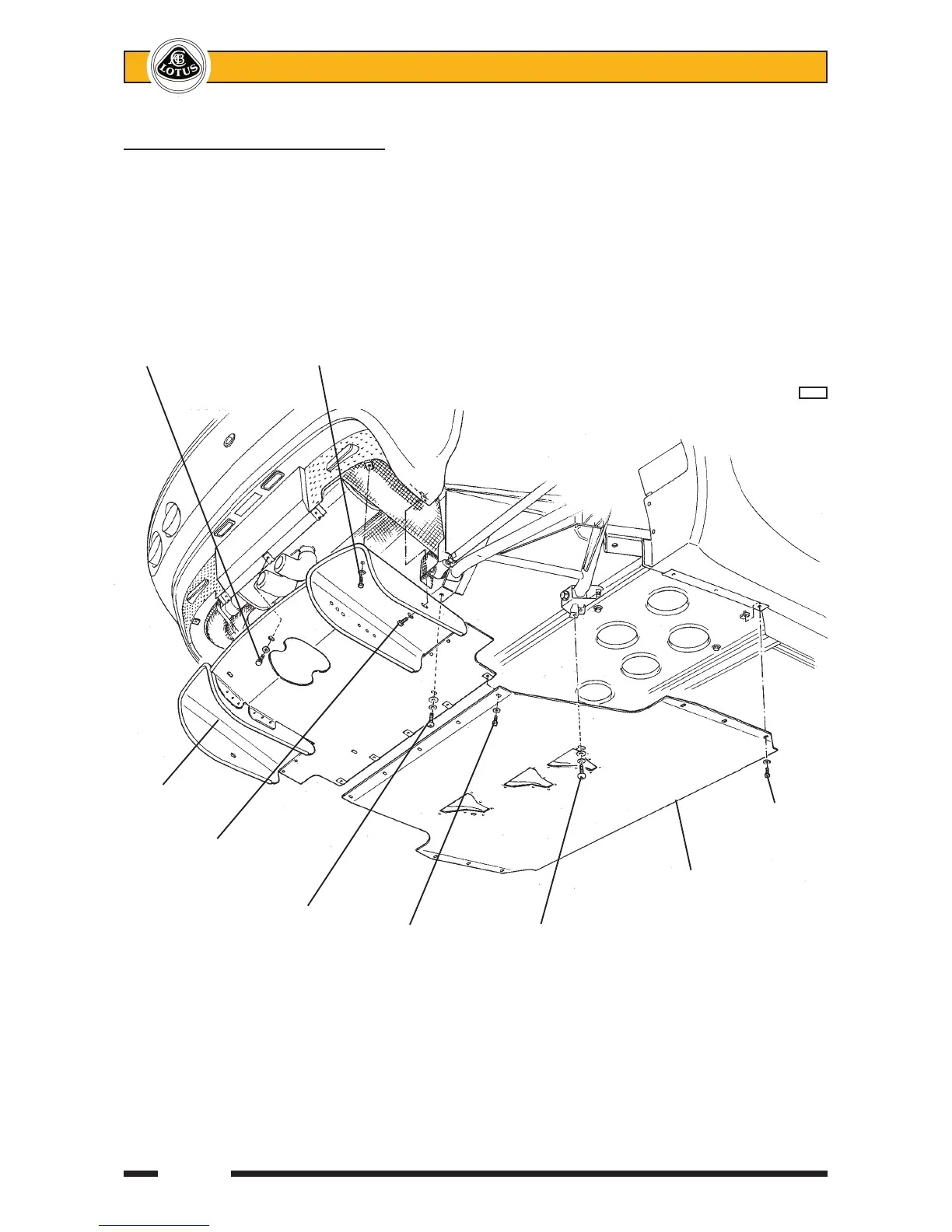

3 screws to licence 1 screw each side
plate plinth to grille panel
b275b
Diffuser panel
3 screws
each side
Single screw each to tank bay
side to clamshell panel
Undertray
front edge
M8 button head slots into
(2) to subframe 5 screws M8 button head chassis
undertray (2) to lower
to diffuser link brackets
