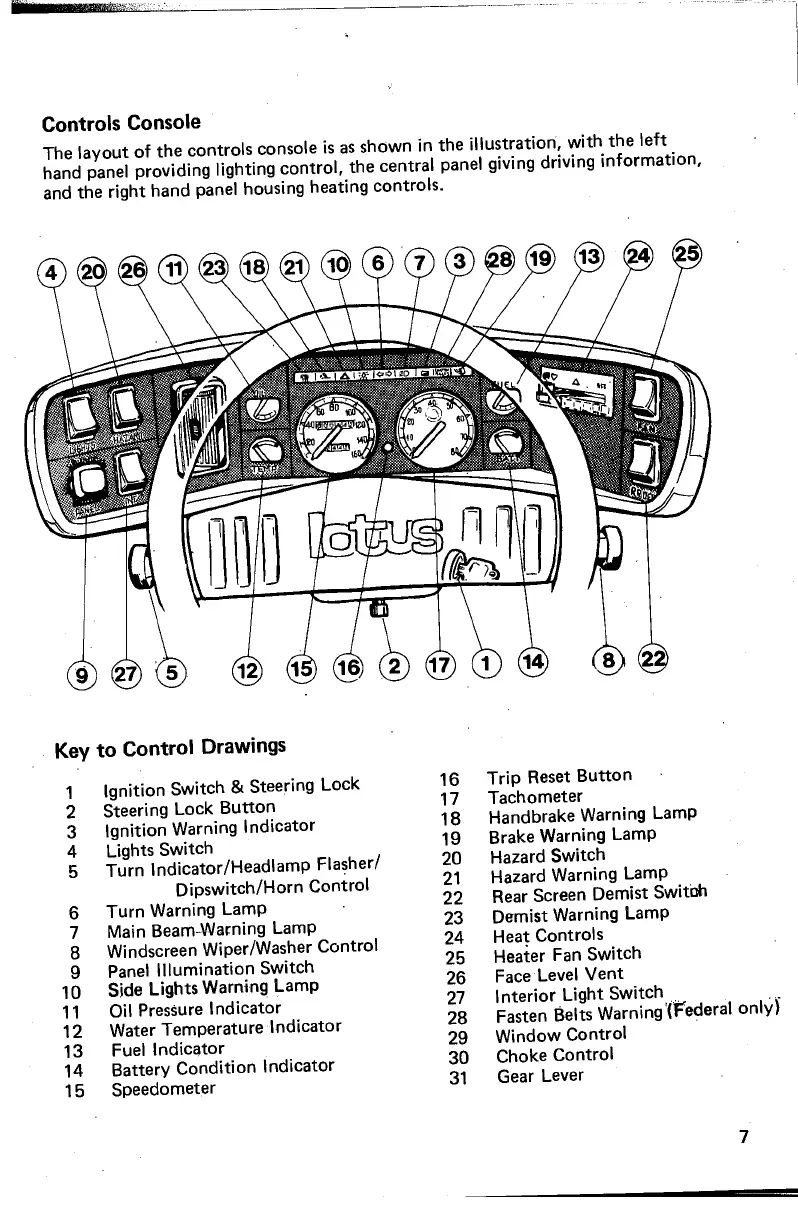

Controls Console
The
layout
of
the
controls console
is
as
shown in
the
illustration with
the
left
hand panel providing
lighting control,
the
central panel giving drlving information
and
the
right hand panel housing heating controls. '
Key
to
Control Drawings
1 Ignition Switch & Steering Lock
2 Steering Lock
Button
3 Ignition Warning Indicator
4 Lights
Switch
5 Turn lndicator/Headlamp Flasher/
Dipswitch/Horn
Control
6 Turn Warning Lamp
7 Main Beam-Warning Lamp
8 Windscreen Wiper/Washer Control
9 Panel
Illumination Switch
16
Trip Reset
Button
17 Tachometer
18
Handbrake Warning Lamp
19 Brake Warning Lamp
20
Hat:ard Switch
21
Hazard Warning Lamp
22
Rear Screen Demist SwitCh
23 Demist Warning Lamp
24
Heat Controls
25
Heater Fan Switch
26
Face Level
Vent
10 Side Lights Warning Lamp
11
Oil
Pressure Indicator
12
Water Temperature Indicator
27 Interior Light
Switch
28
Fasten Belts Warning'(Federal
only)
29
Window Control ·
13 Fuel Indicator
14 Battery Condition Indicator
15
Speedometer
30
Choke Control
31
Gear Lever
