MAINTENANCE MANUAL OF ENGINE
97
4. Dismantling/installing the gear chamber
4.1 Dismantling the gear chamber
1. Dismantle the alternator assembly (Refer to Sec-
tion 3.1, Chapter 5, Part II).
2. Dismantle the fan parts (Refer to Section 3.4,
Chapter 5, Part II).

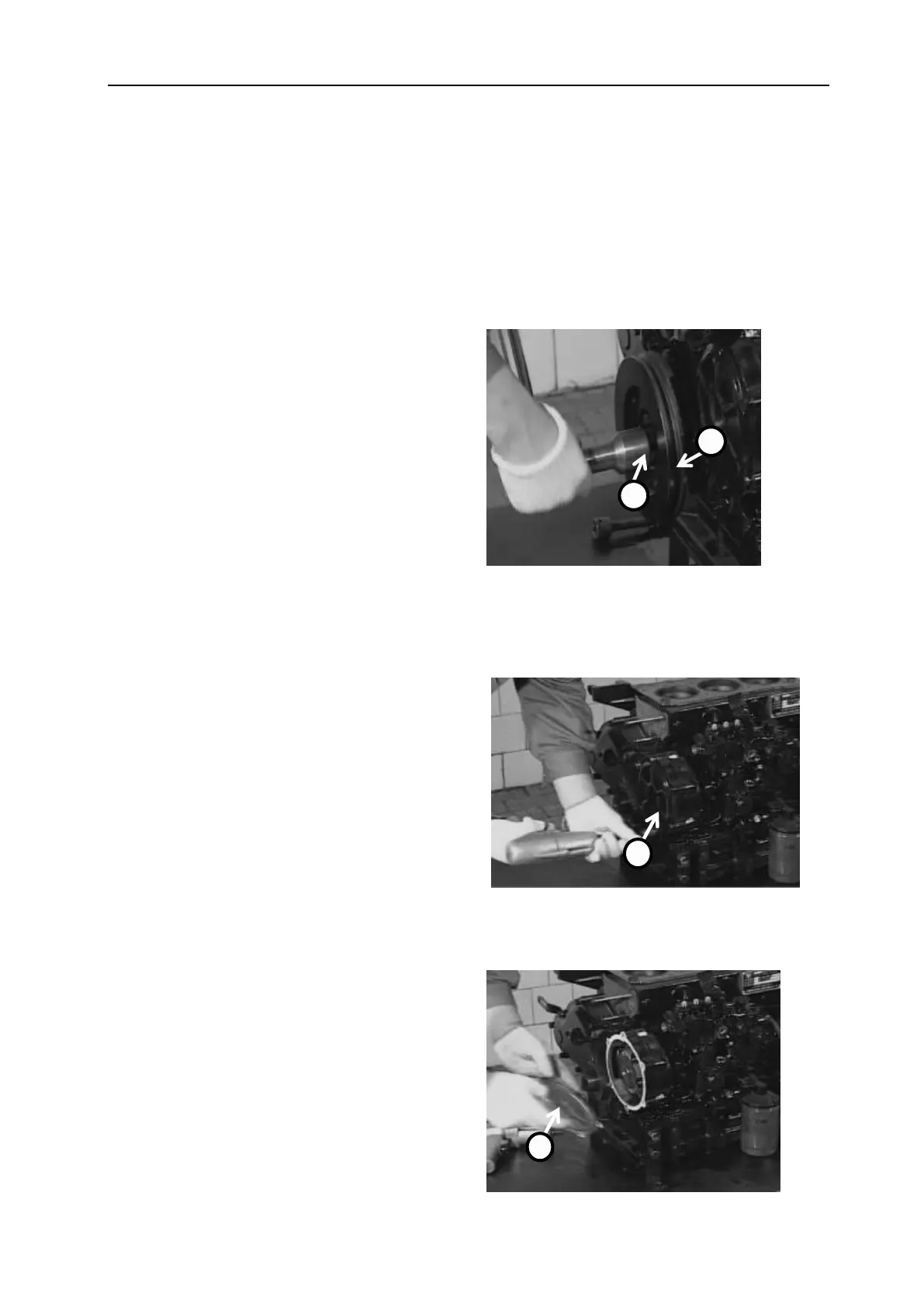

3. Dismantle the bolt A for the crankshaft pulley,
and remove the pulley B.
A-Bolt for the crankshaft pulley
B-Crankshaft pulley
Attention: During dismantling of the crankshaft
pulley, wedge a woodblock at inner side of the pul-
ley after loosening the fastening bolt, and use a
hammer to tap the woodblock axially until the
crankshaft pulley is loosened, so as to remove the
crankshaft pulley.
4. Remove the water pump parts (Refer to Section
3.5, Chapter 3, Part II).
5. Dismantle the set bolt A for the front cover of the
timing gear chamber.
A-Set bolt
6. Dismantle the front cover A of the timing gear
chamber.
A-Front cover A of the timing gear chamber.
To Next Page
