6. Electric system
6.1 Introductions for starter
6.1.1 Structural principle of the starter

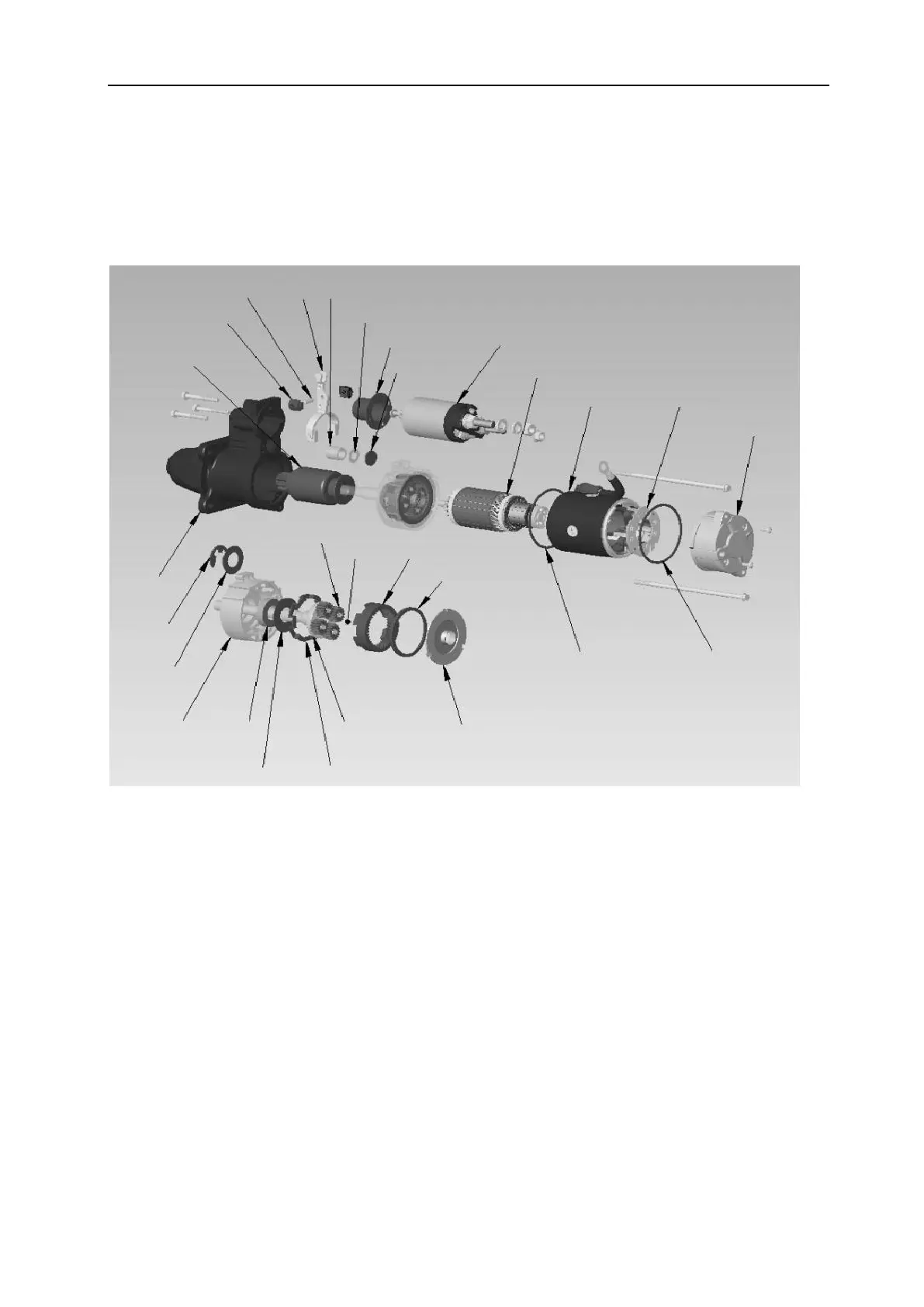

A-One-way clutch B-Fork seat C-Fork shaft D-Fork E-Hold-down ring F-Gasket G-Water proof
rubber sleeve H-Rubber gasket I-Electromagnetic switch J-Armature assembly K-Stator assembly
L-Carbon brush holder assembly M-Rear cover N-Water proof rubber washer O-Planetary gear ring
cover P-Rubber gasket Q-Planetary gear ring R-Ball S-Planetary gear T-Planet gear shaft
U-Rubber gasket with male and female face V-Internal friction plate W-Bearing X-Vibration damper
Y-External friction plate Z-Planet gear shaft circlip AA-Front end cover
A
B
C
D
E
F
G
H
I
J
K
L
M
N
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
