Lovol KM/4L22 User Manual

MAINTENANCE MANUAL OF ENGINE
24

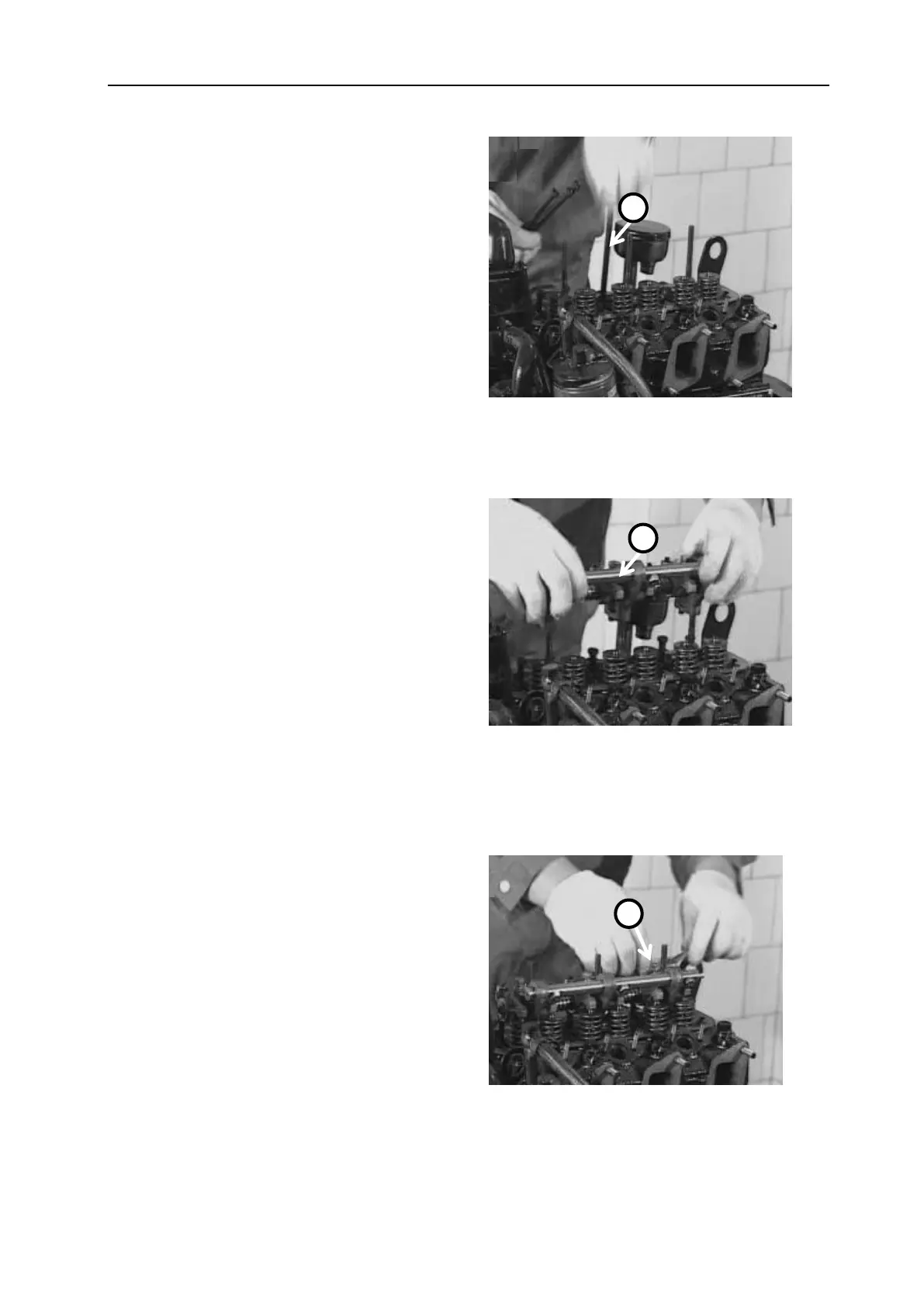

3.2 Dismantling the rocker arm assembly
1. Dismantle the bolt (A) for fixing rocker arm
shaft.
A- Bolt for fixing rocker arm shaft
2. Dismantle the rocker arm shaft assembly (A).
A-Rocker arm shaft assembly
3. Dismantle the push rod (A).
A-Push rod
Attention: Check the push rod for deformation or
damage.
A
A
A
