MAINTENANCE MANUAL OF ENGINE
29
3.6 Dismantling the rocker arm of valve
Dismantle the snap rings (A) at both ends of the
rocker arm shaft, then the locknut (G) and the
valve-adjusting screw (F). Dismantle the front
rocker arm seat (D), rocker arms (H and I), and
rocker arm spring (E) from the rocker arm shaft.

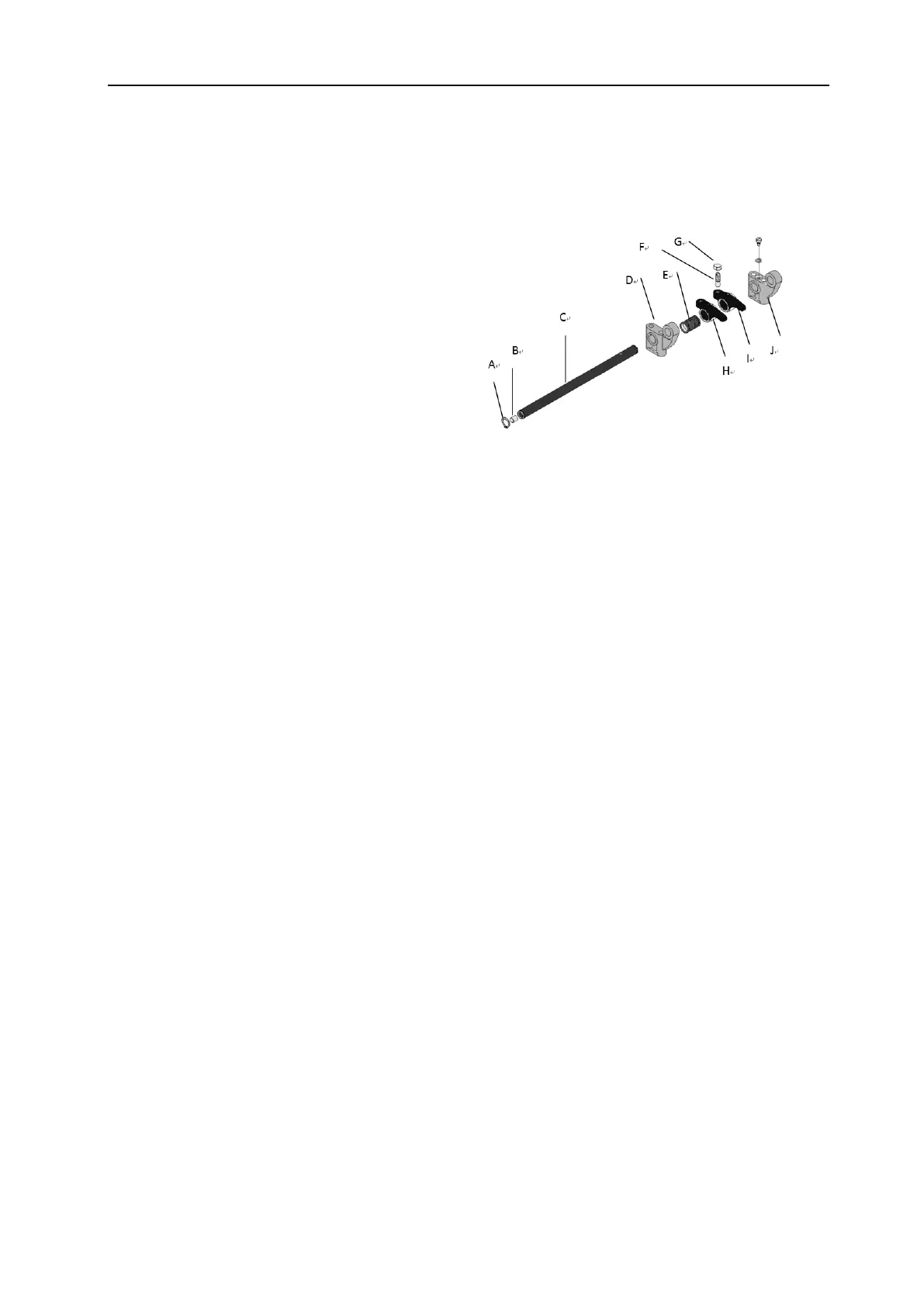

A- Snap ring
B- Plug
C- Rocker arm shaft
D- Rocker arm shaft base
E- Spring
F-Adjusting screw
G-Locknut
H-Valve rocker arm
I-Valve rocker arm
J- Rocker arm shaft base
