MAINTENANCE MANUAL OF ENGINE
31

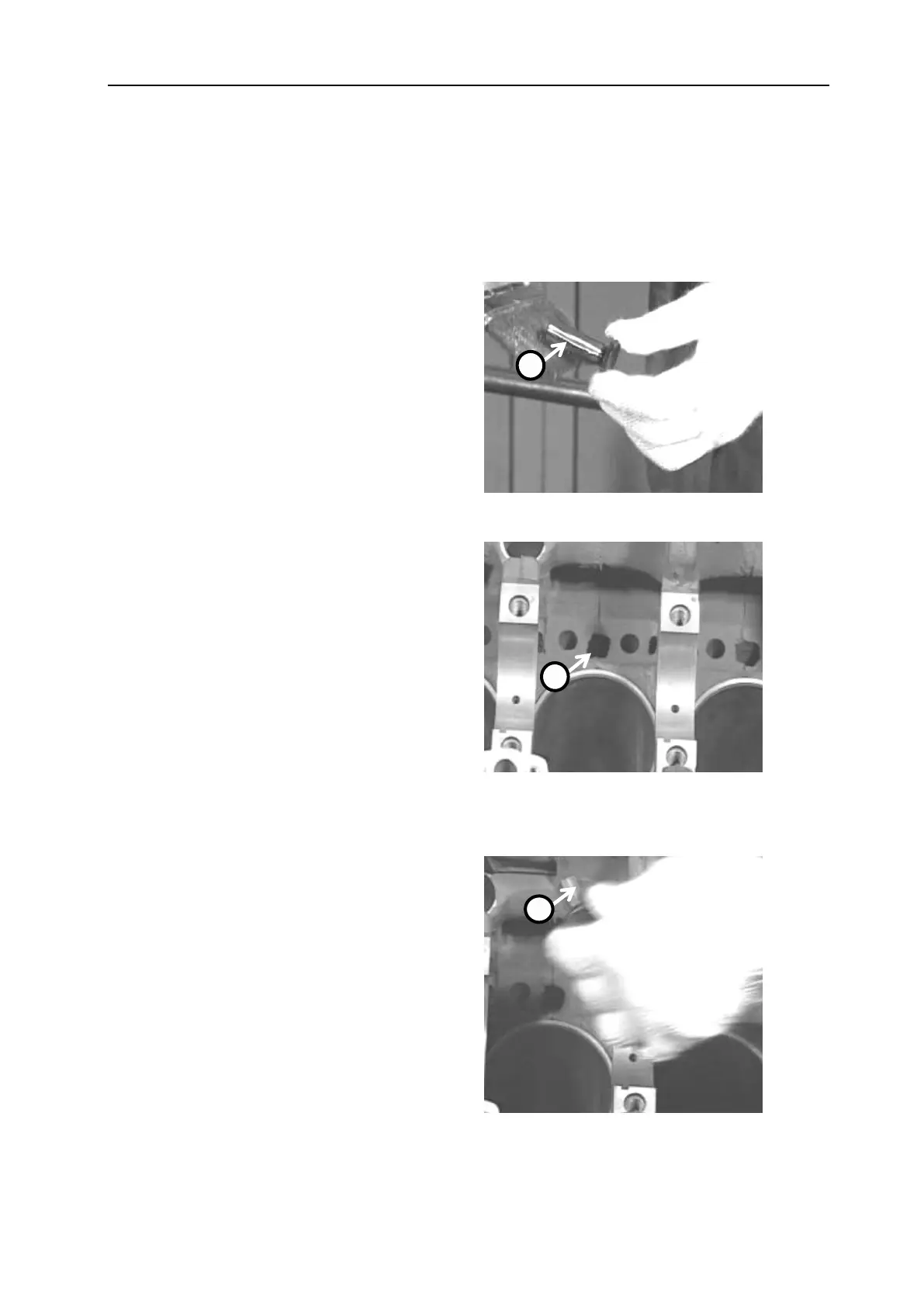

4. Installing the valve mechanism
4.1 Installing the valve tappet
1. Install the cylinder liner (see Section 4.1, Chapter
2 of Part II).
Keep its mating face clean before installing the
valve tappet.
2. Apply lubricating oil to the valve tappet.
A-Valve tappet
3. Check the installation hole (A).
A- Installation hole
4. Install the valve tappet.
A-Valve tappet
The valve tappet shall be installed so that it can
slowly slide without sticking along its installation
hole of an inclination 45°- 60°.
5. Install the crankshaft assembly (see Section 4.2,
Chapter 2 of Part II).
6. Install the timing gear chamber cover (see Sec-
tion 7.3, Chapter 7 of Part II).
