MAINTENANCE MANUAL OF ENGINE
45
3. Dismantling the crank-link mechanism
3.1 Dismantling the crankshaft
1. Dismantle high pressure fuel pipe accessories
(See Section 3, Chapter 6 of this Part for the de-
tails).
2. Dismantle the gear chamber (See Section 7,
Chapter 7 of this Part for the details).
3. Dismantle the flywheel parts (See Section 7,
Chapter 7 of this Part for the details).
4. Dismantle the oil pan parts (See Chapter 4 Sec-
tion 3 for the details)

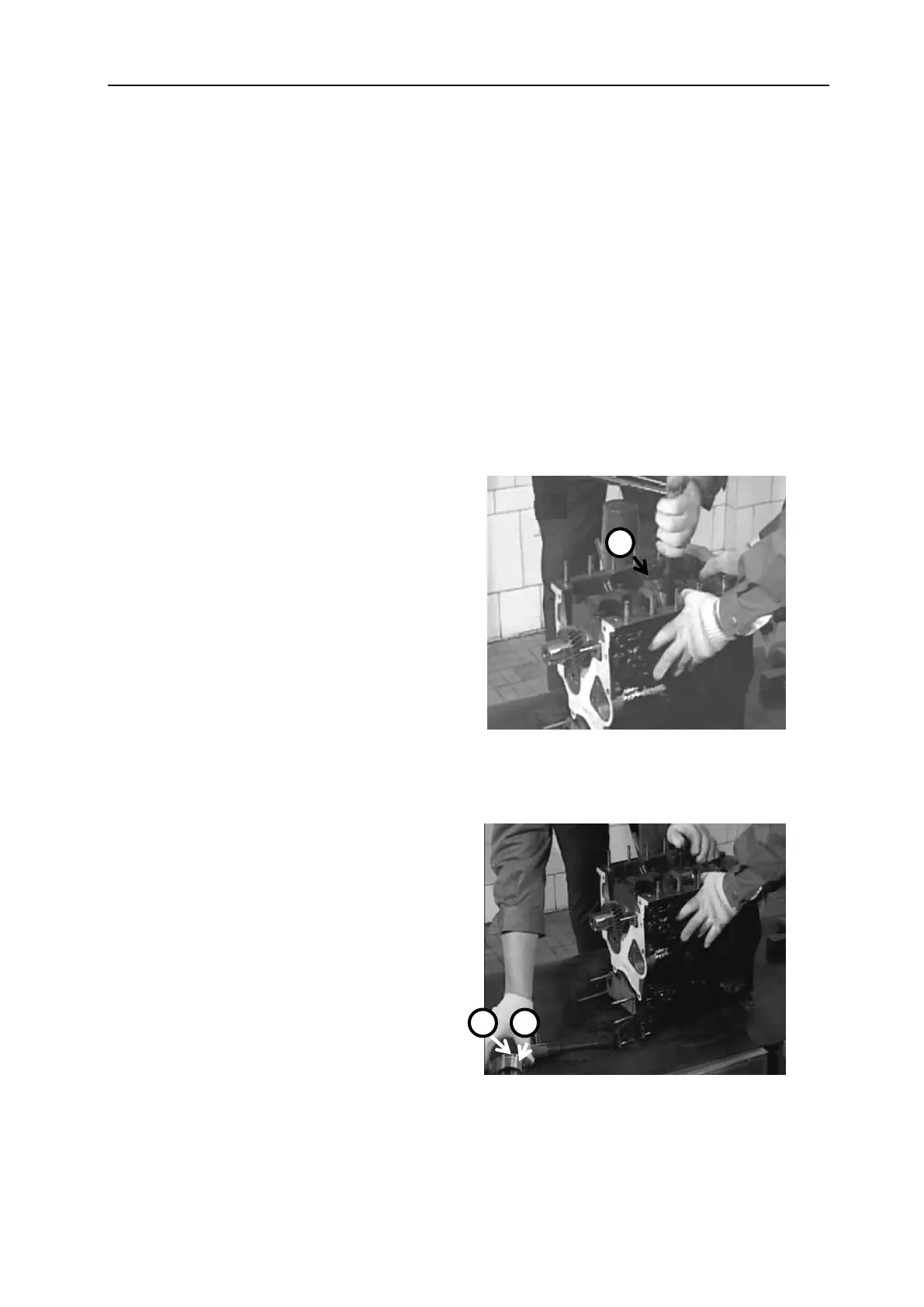

5. Dismantle the connecting rod bolt A.
A-Connecting rod bolt
6. Dismantle the connecting rod cap A and con-
necting rod bearing shell B
A-Connecting rod cap
B-Connecting rod bearing shell
Attention:
Connecting rod bearing shell and connecting rod
cap shall be marked by the sequence of 1, 2, 3 cyl-
inder, which shall be placed neatly without bump so
that it will be installed in sequence for assembly, or
it will influence the performance of diesel engine.
