MAINTENANCE MANUAL OF ENGINE
52
Attention: Do not knock on cylinder liner by ham-
mer.
1. Completely clean the cylinder liner mounting
bore.
2. Completely clean the outside surface of cylinder
liner by safety solvent.
3. Insert the cylinder liner E into original mounting
bore. Make sure that cylinder liner is vertical and
install the joint D into cylinder liner top so that joint
shaft shoulder is on cylinder liner flange. Place
bearing C in groove position at the top of joint so
that bearing plane will face toward the bottom of
groove.
4. Install the screw A through bearing, joint and
cylinder liner until handle jacks the bearing groove.
In this position, adjust the screw to make the end
lower than cylinder block bottom face.
5. Install joint F into screw to make sure that joint
plane jacks the cylinder block bottom face. Install
gasket and nut to make sure that screw is in the
middle of cylinder liner and fasten the nut onto
joint.

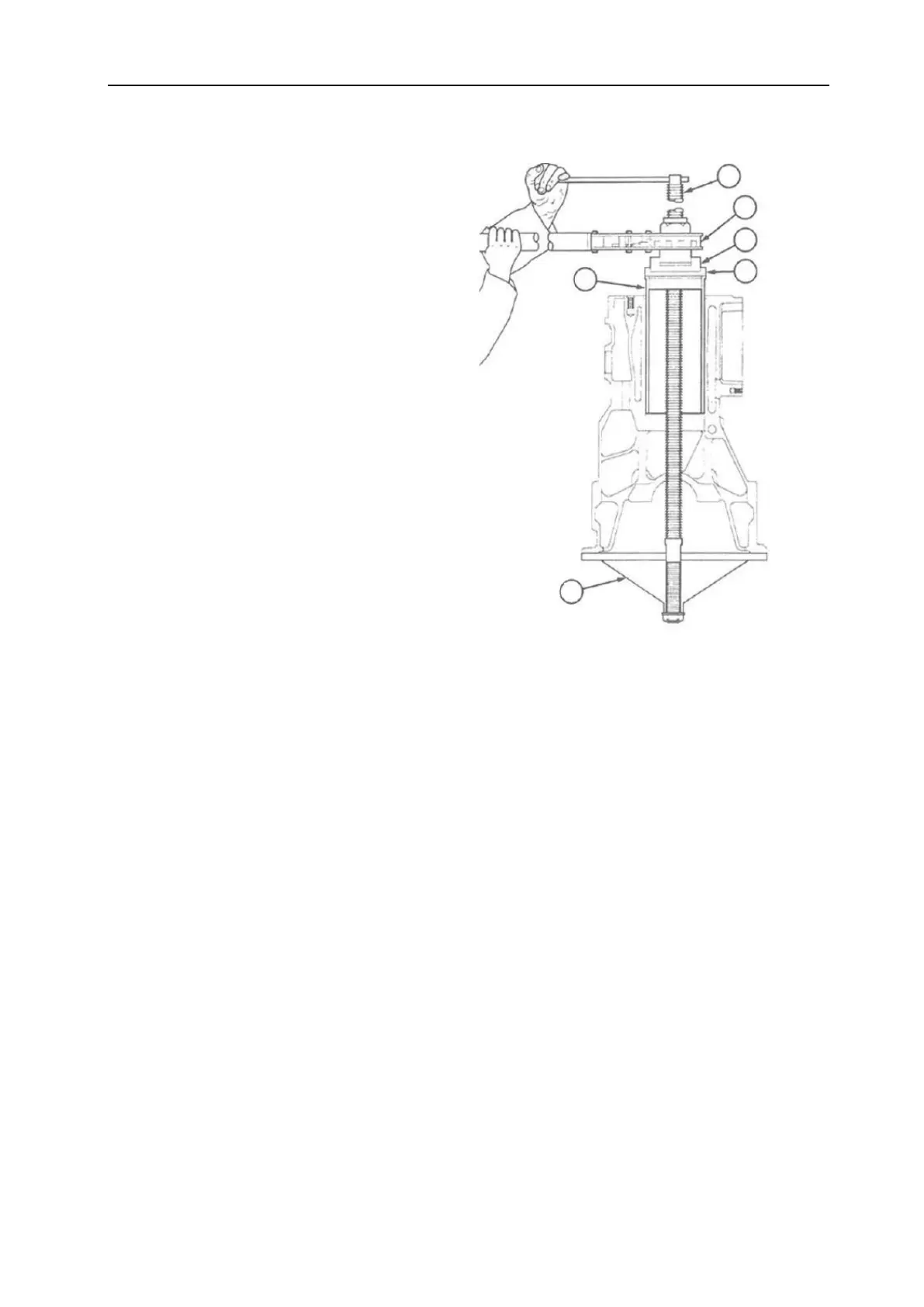

A-Screw B-Handle C-Bearing D-Special tool
E-Cylinder liner F-Joint
