MAINTENANCE MANUAL OF ENGINE
86

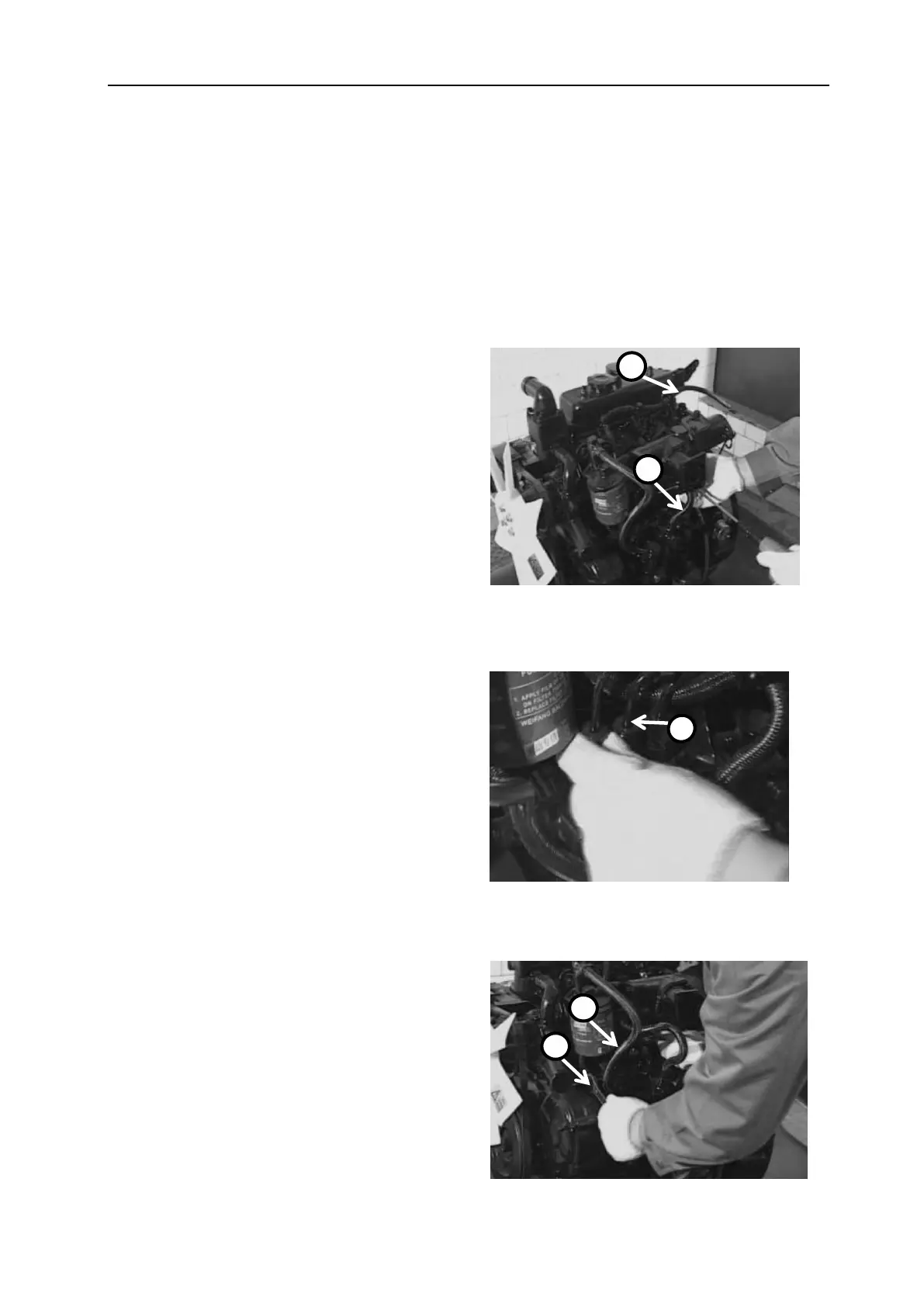

3. Dismantling the fuel supply system
3.1 Dismantling the accessories for the high
pressure fuel pipe
Prior to dismantling, disconnect the fuel inlet pipe.
1. Dismantle the fuel return pipe part A, and the fuel
pipe B from the fuel filter to the fuel injection
pump.
A-Fuel return pipe part
B-Fuel pipe from the fuel filter to the fuel injection
pump
2. Dismantle the high pressure fuel pipe part A
A-High pressure fuel pipe part
3. Dismantle the Hollow bolt B, and the fuel pipe A
from the fuel delivery pump to the fuel filter.
A-Fuel pipe from the fuel delivery pump to the fuel
filter
B-Hollow bolt
B
A
A
B
A
